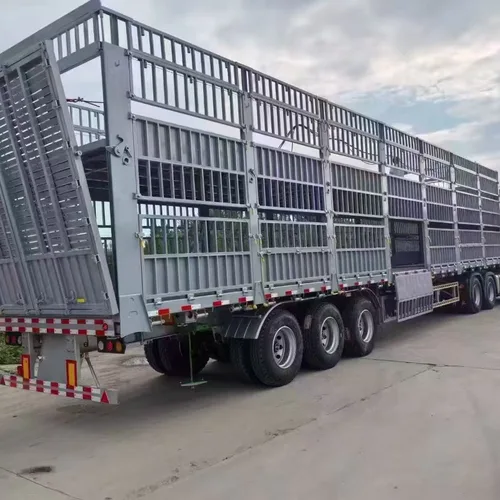

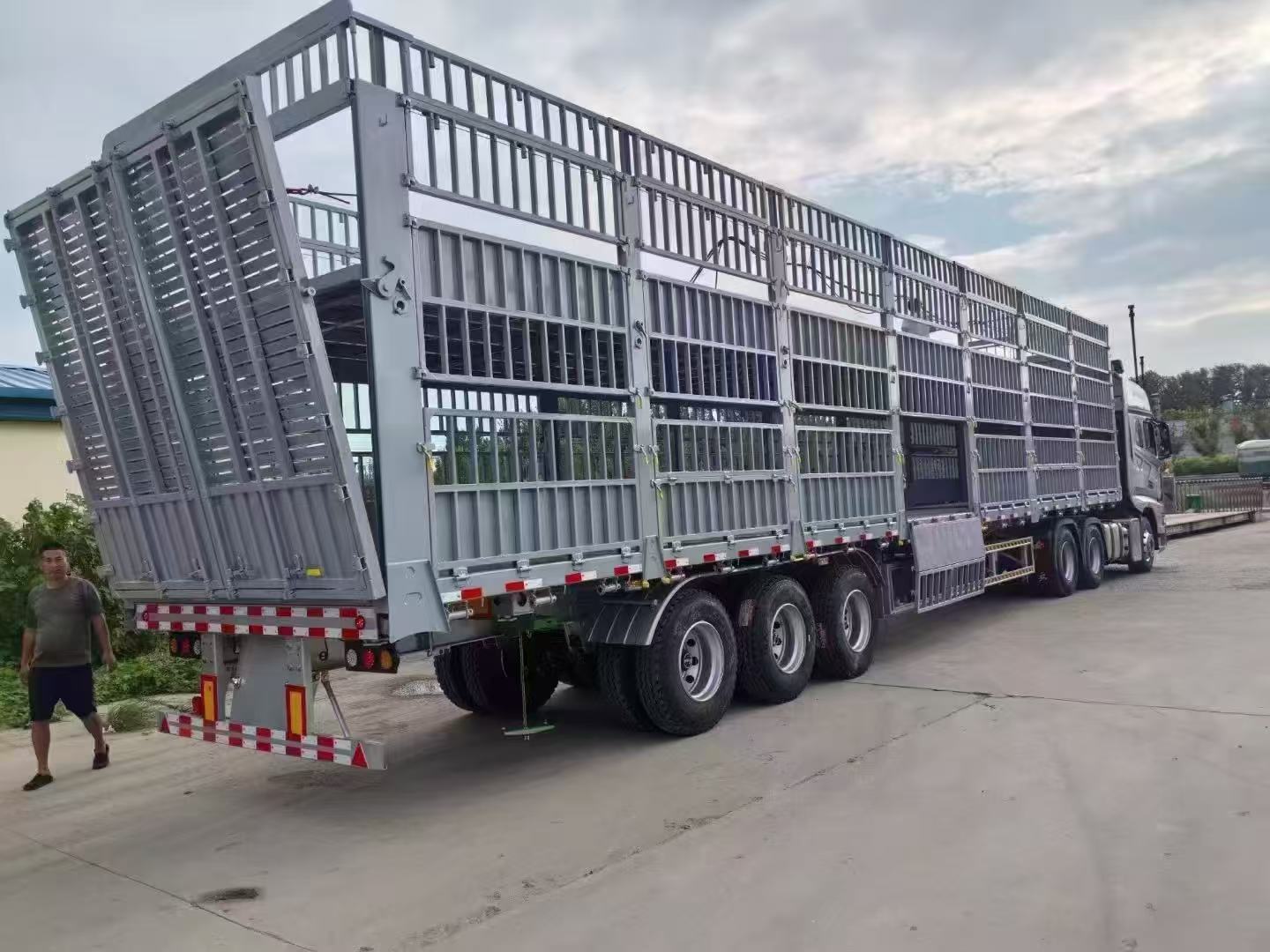

16m Gooseneck Double Deck Livestock Fence Semi-Trailer Adjustable Cattle Floor For Cattle Sheep Transport Complete Legal Papers

Name: 16m Gooseneck Double Deck Livestock Fence Semi-Trailer Adjustable Cattle Floor For Cattle Sheep Transport Complete Legal Papers
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

16m gooseneck double deck special fence semi-trailer for cattle & sheep, overall dimension 16m×2.8m×4m. Adopts 480mm high-strength main beam with top flange 10mm, bottom flange 12mm, web plate 6mm, equipped with 3 sets 1840 axles & 6 groups 10-leaf mechanical springs. Adjustable 1.5/1.6/1.7m lifting second cattle floor with anti-block bar at step floor, high ventilated stake fence and ladder-type rear door. 1.6mm zinc alloy anti-slip floor with full cross & diagonal internal reinforcement. The trailer comes with complete legal registration documents (VAT invoice not included), specially used for long-distance cross-border transport of cattle, sheep, horses and other live livestock. Fence height, cattle floor height and body paint color are customizable, mass exported to live stock logistics projects of large farms in Central Asia and Africa.

$17037.00

Enviar mensaje Contactar proveedor

Liangshan Xiangquan Trailer Sales Co., Ltd.

Ver proveedor

Year Established Established in 2022

Employees 101-500 People

Factory Area 5,000-10,000 m²

Annual Revenue US$10 Million - US$50 Million

Main Markets Southeast Asia / Africa

Detalles

Especificaciones

Informacion comercial

Core Foreign Trade Advantage Of High-strength Gooseneck Beam & Adjustable Double Cattle Deck
Adopts 480mm heightened integrated gooseneck high-strength main beam integrally bent & submerged-arc welded with 10mm top,12mm bottom and 6mm web plate, excellent bending & torsion resistance without sagging during long heavy live stock haulage. Core adjustable double lifting cattle deck with 1.5/1.6/1.7 three height options, special anti-block bar installed at step floor gap to prevent livestock extrusion injury. Full transparent mesh ventilated fence eliminates closed dead corners to reduce heat stress loss of livestock during long transit, perfectly adapting to high-temperature desert farm roads in Central Asia and Africa. The trailer is equipped with full legal registration documents (VAT invoice excluded), meeting basic document demands for overseas live stock customs clearance and road legal operation.
Stable Load Bearing System With 3 Axle Mechanical Spring Suspension
Three sets heavy-duty 1840 axles matched with 6 groups 10-leaf thickened spring suspension, simple structure with globally universal spare parts and low failure rate under high-temperature dusty farm conditions. Three axles evenly distribute full live stock weight with excellent shock buffering to avoid animal bump damage during driving. Standard 12R vacuum wear-resistant tires & 14mm thick wide-flange steel rims feature puncture & skid resistance for rural gravel and bumpy cross-border highways. Full 3-axle synchronous zero-negative pressure brake valve matched with standard ABS delivers stable non-locking braking on long downhill roads to prevent livestock crowd injury, complying with global live stock transport safety regulations.
Special Livestock Fence & Anti-slip Floor Structure
Mother-son hinge ladder-type rear door with wide opening for easy livestock loading & unloading. High-strength fully welded inner inserted fence posts with full cross & diagonal internal bracing to keep fence undeformed under full load. 1.6mm zinc iron alloy anti-slip floor is wear & corrosion resistant to avoid animal slipping injury. Complete tarpaulin poles & frame for full rain & sun protection, external support legs, independent tool box and spare tire bracket as standard, new-style rear guard net and full reflective markings meet cross-border annual inspection standards.
Full-range Personalized Customization Service For Overseas Market
Double cattle deck height, total fence height and rear door style adjustable on demand. Standard frame orange & cabin Maldives blue paint, all custom body colors and farm brand LOGO printing available. Hydraulic lifting cattle deck optional to replace manual structure, thickened fence vertical ribs and widened inner bracing can be upgraded. Full beam flaw detection, vehicle load & brake safety tests finished before delivery, complete legal registration documents supplied (VAT invoice not included) to simplify overseas farm live stock cross-border customs clearance and road registration procedures.
Core Application Scenarios
Long-distance cross-border transit of live cattle, sheep and horses from large farms, batch turnover of live livestock in agricultural markets, cross-border import & export logistics of live animals. This 16m gooseneck adjustable double deck fence semi-trailer is the mainstream special livestock trailer exported to large farms in Central Asia and Africa for long-distance live stock transport.
Full Export Supporting Service
①Main beam material flaw inspection report, whole vehicle load brake test report and complete vehicle legal registration documents provided (VAT invoice excluded), assistance for CE export certification documents available.
②Double anti-rust epoxy primer & industrial wear-resistant top coat for whole trailer, independent protective film wrapping for fence, cattle deck and pipelines, solid wooden frame packaging for ocean shipping. 24-hour Chinese & English online technical after-sales support, spare parts of axles, springs, ABS and fence accessories can be exported separately in bulk for replenishment.
③90# kingpin fits all global tractor head connection standards, dual Chinese & English manual for fence maintenance, cattle deck lifting and brake upkeep supplied.

Overall Dimension

16m(Gooseneck Length) × 2.8m Width × 4m Total Height

Main Beam Spec

Height 480mm, Top Flange 10mm, Bottom Flange 12mm, Web 6mm High Strength Steel

Axle Configuration

3 Pcs Factory 1840 Heavy-duty Axles

Suspension Type

Mechanical Spring Suspension, 6 Sets × 10 Leaves Spring

Kingpin

90# Standard Kingpin Front Mounted

Floor Material & Thickness

1.6mm Zinc Iron Alloy Anti-slip Plate

Double Cattle Deck

Adjustable Height 1.5m / 1.6m / 1.7m, With Anti-block Bar At Step Floor

Stake Fence Structure

High Ventilation Welded Fence, Inner Full Cross & Diagonal Bracing

Rear Door

Ladder Type Double Swing Door With Mother-son Hinge

Tire & Rim

12R Vacuum Tire, 14mm Thick Wide Flange Steel Rim

Brake System

6 Large Brake Chambers, 3-axle Synchronous Zero Negative Pressure Valve, Standard ABS

Document Remark

Complete Legal Registration & Filing Documents, Without VAT Invoice

Standard Accessories

External Support Leg, Tool Box, Spare Tire Bracket, Tarpaulin Frame & Poles, Full Reflective Markings

Custom Scope

Cattle Floor Height, Fence Height, Body Paint Color, Logo Printing, Door Style

Applicable Livestock

Cattle, Sheep, Horse, Large Farm Live Stock Long-distance Transport

Cantidad minima de pedido

1 Piezas

Descripción

Core Foreign Trade Advantage Of High-strength Gooseneck Beam & Adjustable Double Cattle Deck
Adopts 480mm heightened integrated gooseneck high-strength main beam integrally bent & submerged-arc welded with 10mm top,12mm bottom and 6mm web plate, excellent bending & torsion resistance without sagging during long heavy live stock haulage. Core adjustable double lifting cattle deck with 1.5/1.6/1.7 three height options, special anti-block bar installed at step floor gap to prevent livestock extrusion injury. Full transparent mesh ventilated fence eliminates closed dead corners to reduce heat stress loss of livestock during long transit, perfectly adapting to high-temperature desert farm roads in Central Asia and Africa. The trailer is equipped with full legal registration documents (VAT invoice excluded), meeting basic document demands for overseas live stock customs clearance and road legal operation.
Stable Load Bearing System With 3 Axle Mechanical Spring Suspension
Three sets heavy-duty 1840 axles matched with 6 groups 10-leaf thickened spring suspension, simple structure with globally universal spare parts and low failure rate under high-temperature dusty farm conditions. Three axles evenly distribute full live stock weight with excellent shock buffering to avoid animal bump damage during driving. Standard 12R vacuum wear-resistant tires & 14mm thick wide-flange steel rims feature puncture & skid resistance for rural gravel and bumpy cross-border highways. Full 3-axle synchronous zero-negative pressure brake valve matched with standard ABS delivers stable non-locking braking on long downhill roads to prevent livestock crowd injury, complying with global live stock transport safety regulations.
Special Livestock Fence & Anti-slip Floor Structure
Mother-son hinge ladder-type rear door with wide opening for easy livestock loading & unloading. High-strength fully welded inner inserted fence posts with full cross & diagonal internal bracing to keep fence undeformed under full load. 1.6mm zinc iron alloy anti-slip floor is wear & corrosion resistant to avoid animal slipping injury. Complete tarpaulin poles & frame for full rain & sun protection, external support legs, independent tool box and spare tire bracket as standard, new-style rear guard net and full reflective markings meet cross-border annual inspection standards.
Full-range Personalized Customization Service For Overseas Market
Double cattle deck height, total fence height and rear door style adjustable on demand. Standard frame orange & cabin Maldives blue paint, all custom body colors and farm brand LOGO printing available. Hydraulic lifting cattle deck optional to replace manual structure, thickened fence vertical ribs and widened inner bracing can be upgraded. Full beam flaw detection, vehicle load & brake safety tests finished before delivery, complete legal registration documents supplied (VAT invoice not included) to simplify overseas farm live stock cross-border customs clearance and road registration procedures.
Core Application Scenarios
Long-distance cross-border transit of live cattle, sheep and horses from large farms, batch turnover of live livestock in agricultural markets, cross-border import & export logistics of live animals. This 16m gooseneck adjustable double deck fence semi-trailer is the mainstream special livestock trailer exported to large farms in Central Asia and Africa for long-distance live stock transport.
Full Export Supporting Service
①Main beam material flaw inspection report, whole vehicle load brake test report and complete vehicle legal registration documents provided (VAT invoice excluded), assistance for CE export certification documents available.
②Double anti-rust epoxy primer & industrial wear-resistant top coat for whole trailer, independent protective film wrapping for fence, cattle deck and pipelines, solid wooden frame packaging for ocean shipping. 24-hour Chinese & English online technical after-sales support, spare parts of axles, springs, ABS and fence accessories can be exported separately in bulk for replenishment.
③90# kingpin fits all global tractor head connection standards, dual Chinese & English manual for fence maintenance, cattle deck lifting and brake upkeep supplied.
