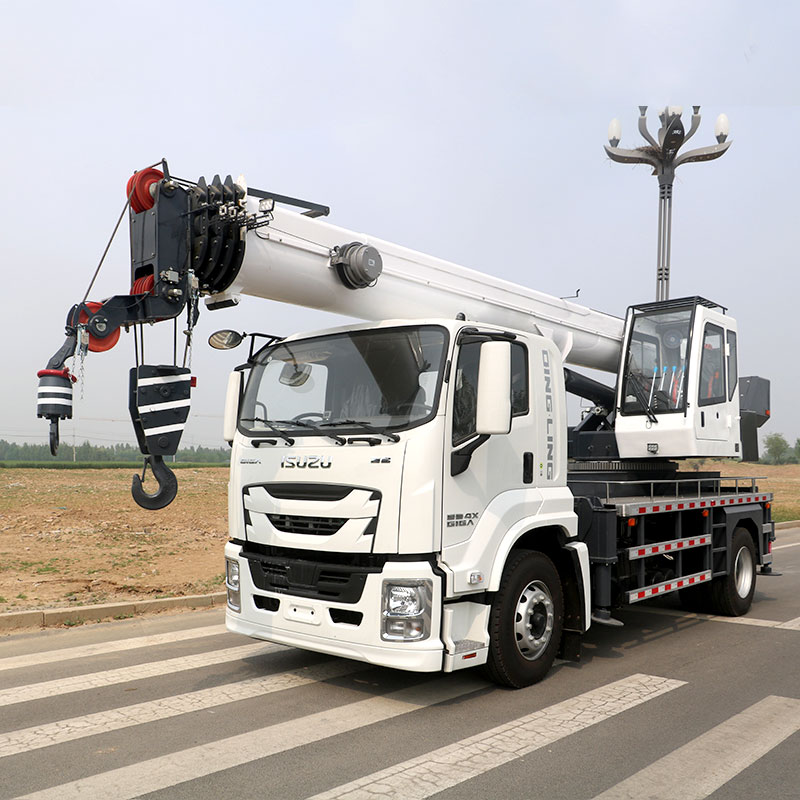

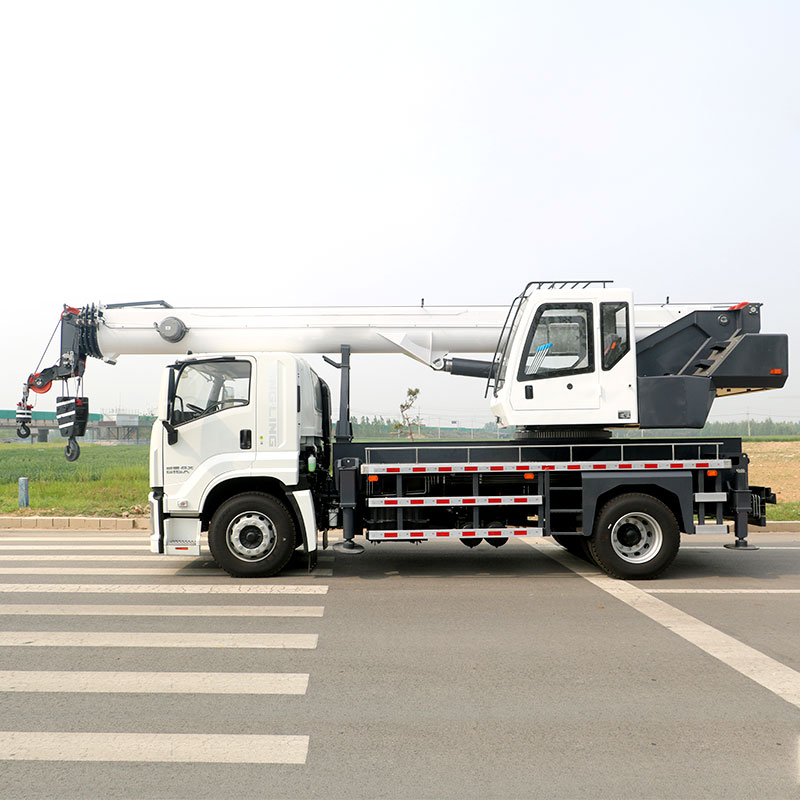

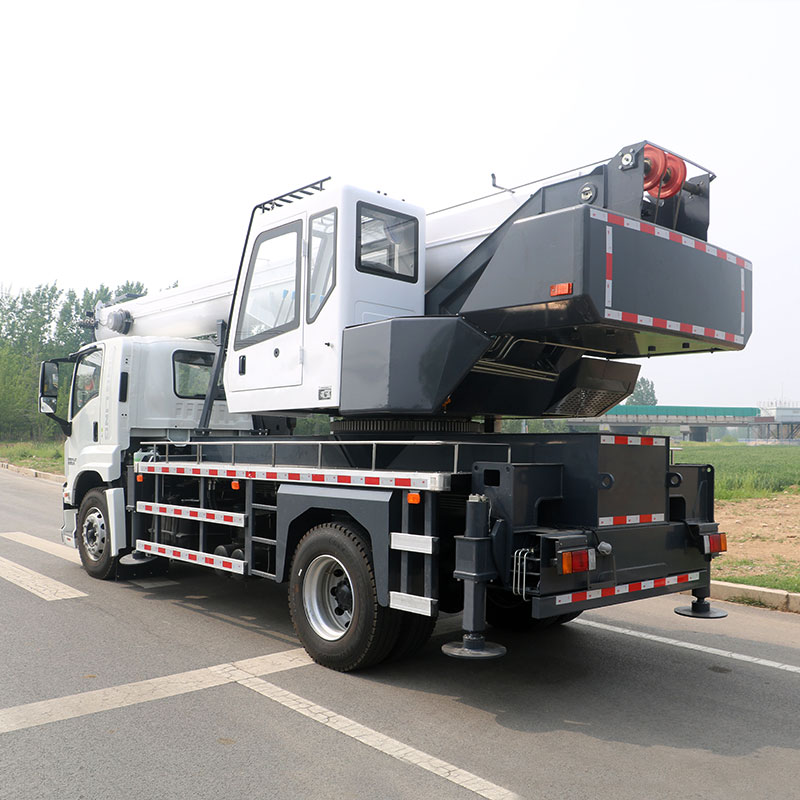

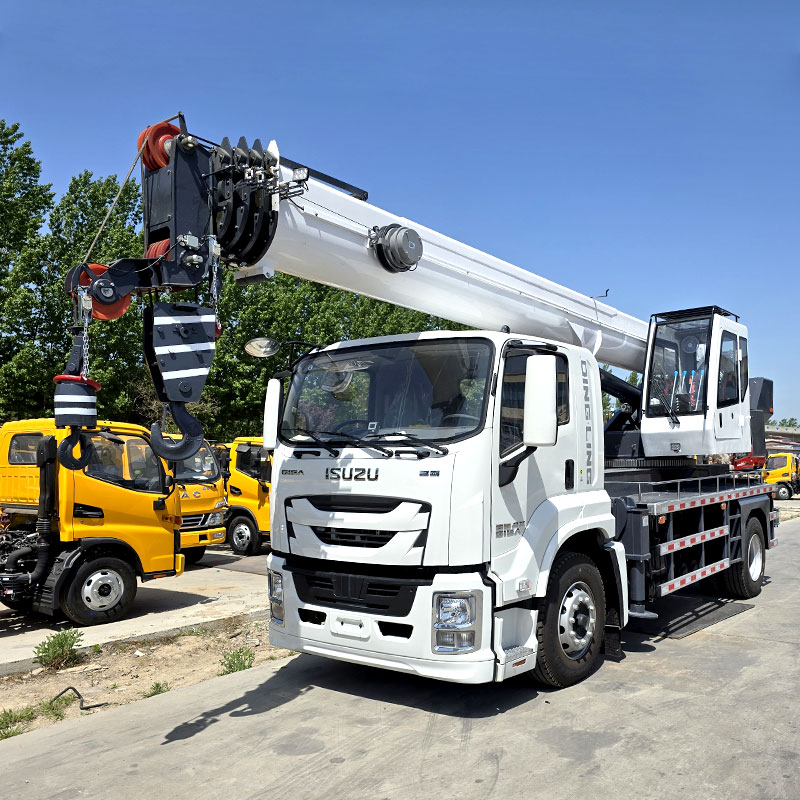

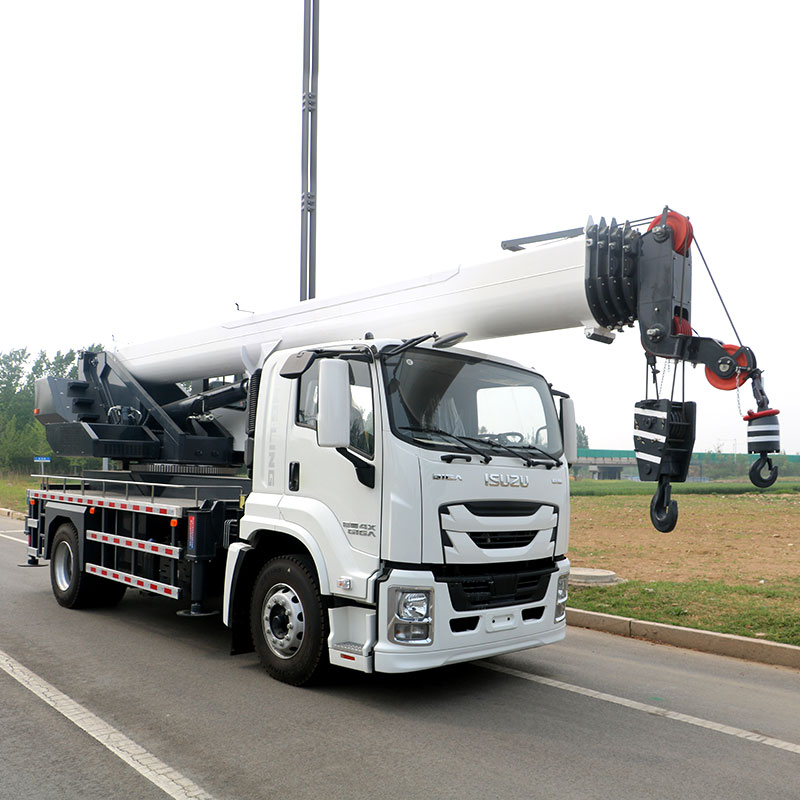

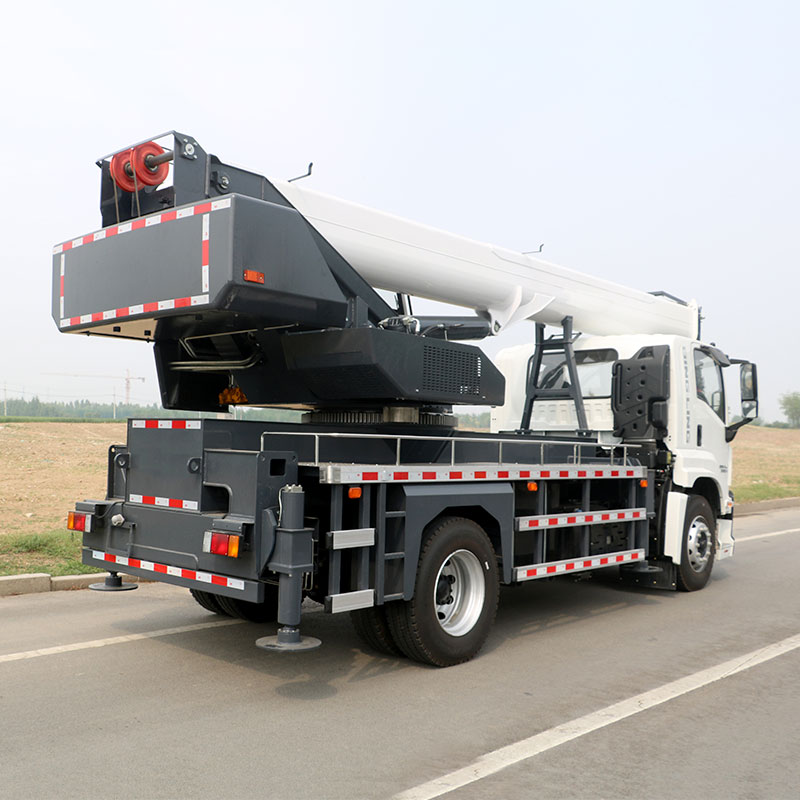

35m Lifting Truck Crane, Isuzu Chassis, Two-section Outriggers for Enhanced Stability

35m Lifting Truck Crane, Isuzu Chassis, Two-section Outriggers for Enhanced Stability

USD $60600.00 / Unidad

Pedido mínimo: 1 Unidad

Model:
Isuzu Giga 10-ton Truck Crane
Chassis Model:
QL1180JQFRCY (Isuzu Giga)
Engine Model:
4HK1-TCG60
Transmission:
MLD-6Q
Precio de referencia:
USD $60600.00
Cantidad mínima de pedido:
1 Unidad
Enviar consulta

Características y aplicaciones del producto

This Isuzu Giga 10-ton truck crane is built on Isuzu Giga chassis, powered by 4HK1-TCG60 engine with MLD-6Q transmission for strong and reliable performance. The 10-ton crane offers a max lifting height of 35m and rated load of 10000kg, supporting 360° free rotation. Equipped with triple pump power system, new torsion-resistant frame and 4 two-section outriggers for enhanced stability, it is an efficient equipment for construction lifting and equipment handling.

The Isuzu Giga 10-ton truck crane is built on Isuzu Giga chassis, powered by 4HK1-TCG60 engine with MLD-6Q transmission for strong and reliable performance. With a total mass of 18000kg, it is equipped with 295/80R22.5 tires, air brake and 6.5T/11.5T axles for excellent load capacity and safety. The 10-ton crane offers a max lifting height of 35m, rated load of 10000kg and 360° free rotation, with triple pump power system for smooth output. The new torsion-resistant grid chassis frame provides high strength and torsion resistance. The 4 two-section outriggers with 4650mm/6600mm spans ensure stable support for complex site conditions. Optional 17kW motor, torque display, AC system, camera and other configurations are available. Widely used in construction, equipment lifting, municipal works and power maintenance, it is a stable, reliable and high-efficiency engineering lifting equipment. Sufficient stock supports bulk orders and customization services.
