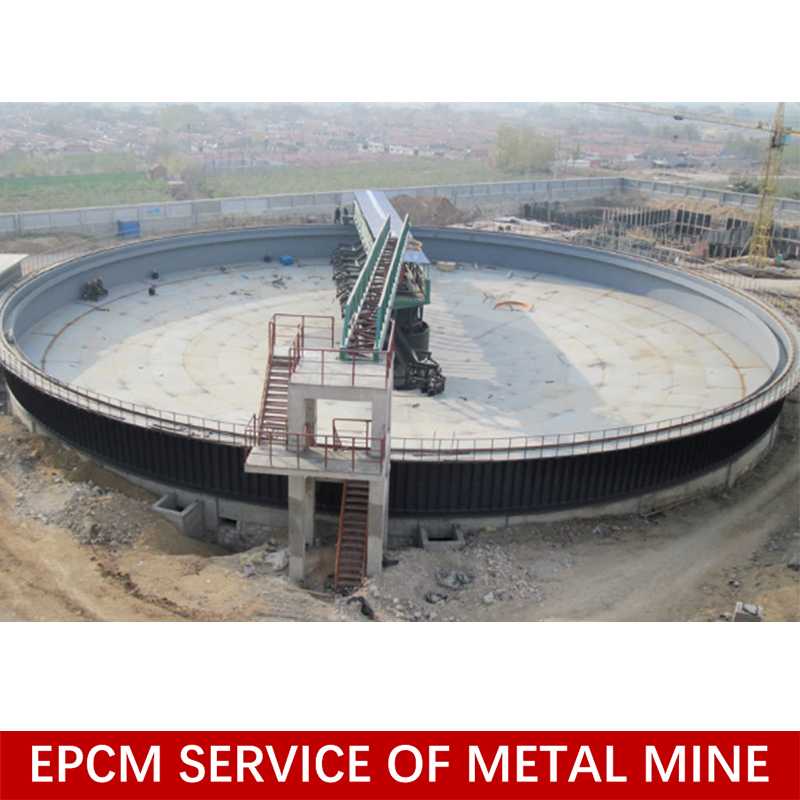

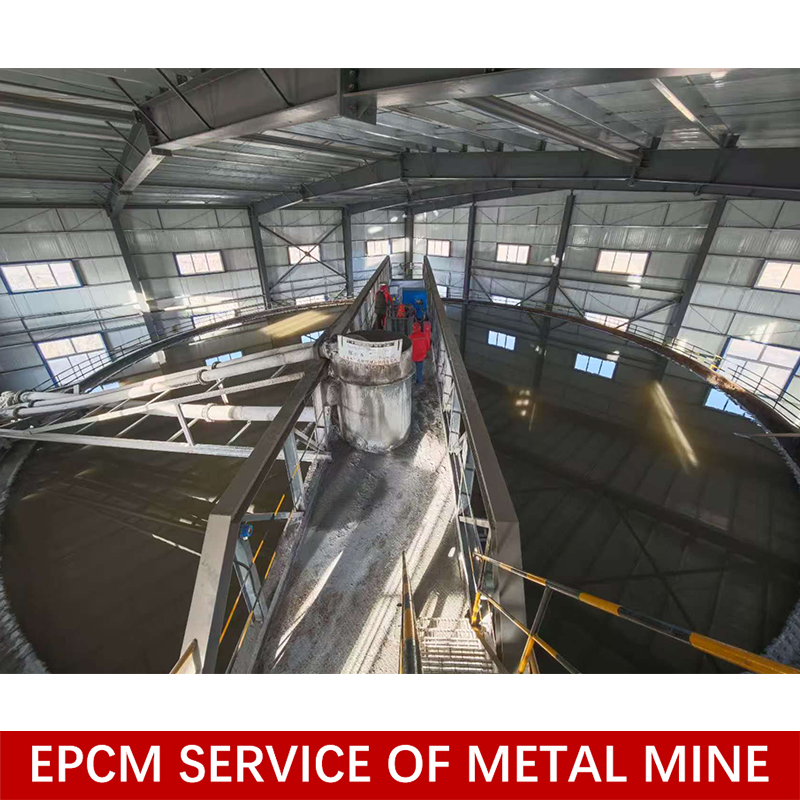

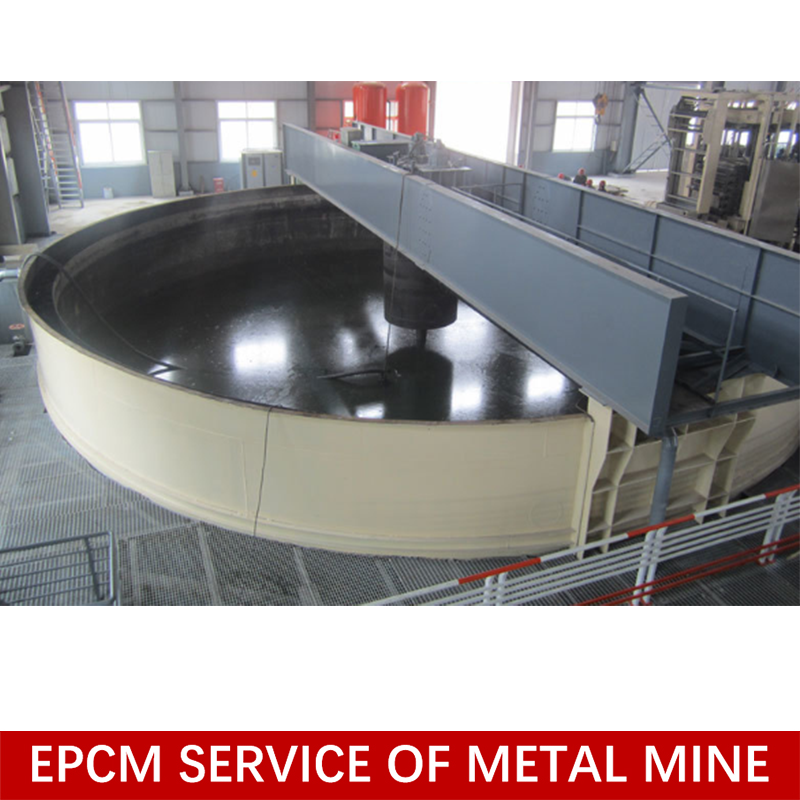

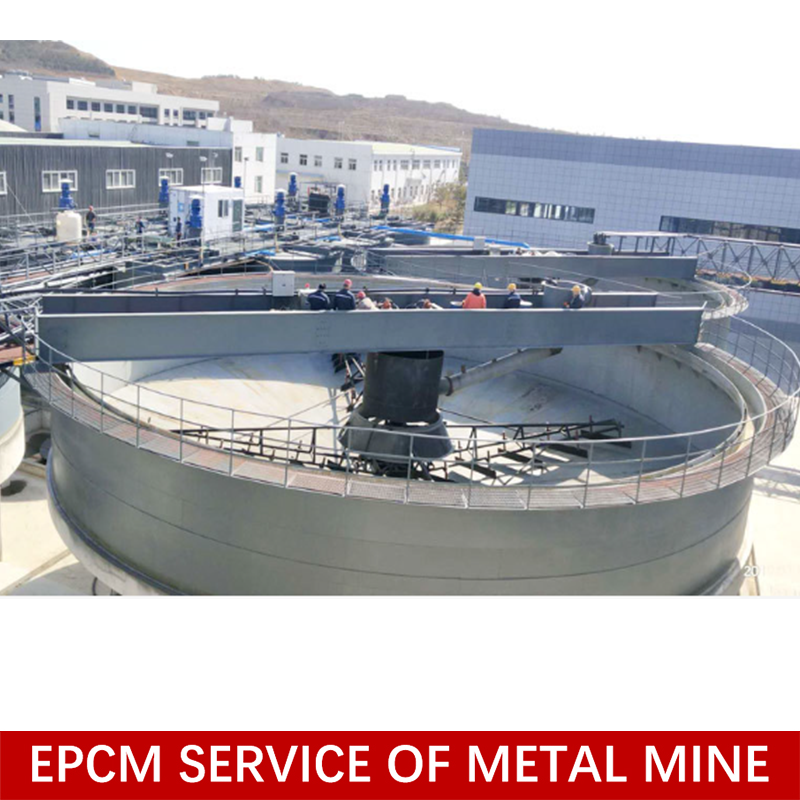

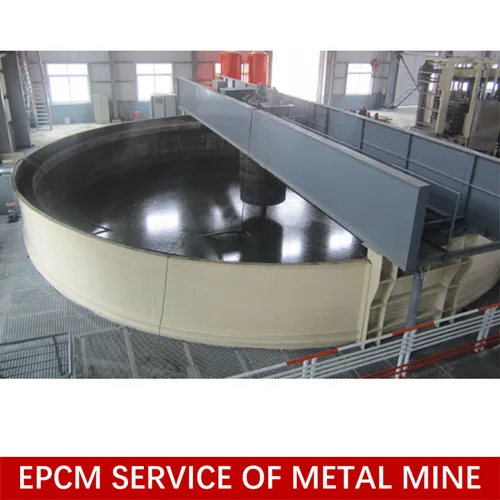

This high-efficiency mining thickener adopts circular concrete or steel tank structure, equipped with central driving device, sludge rake frame, lifting mechanism and overflow clear water tank:
1. Gravity Sedimentation Concentration: Ore pulp slowly precipitates solid particles under gravity in tank, clear water overflows from top for factory recycling, greatly save water consumption.
2. Automatic Rake Lifting Protection: Equipped hydraulic lifting device, automatically lift rake frame when sediment mud layer is too thick to avoid overload damage of driving motor.
3. Anti-corrosion Tank Body Design: Inner wall coated with thick epoxy anti-corrosion layer, resist acid and alkali mine pulp erosion, long service life.
4. Stable Central Drive System: Low speed high torque driving mechanism, stable operation under heavy mud load, low power consumption and energy saving.
5. Continuous Automatic Operation: Can work 24 hours uninterrupted, match filter press to realize full tailings dry stacking production line.
6. Environmental Protection Application: Mainly applied in gold, iron, copper mine tailings wastewater clarification, also suitable for chemical plant and sewage treatment plant solid-liquid separation.
Effective Sediment Area(㎡)
113
Processing Pulp Volume(m³/d)
4800
Rake Driving Power(kW)
7.5
Transmission Type
Central Drive
Overflow Water Clarity Rate(%)
≥92
Sludge Rake Lifting Stroke(m)
0.8
Tank Anti-corrosion Treatment
Epoxy Coating
Cantidad minima de pedido
1 Juegos
