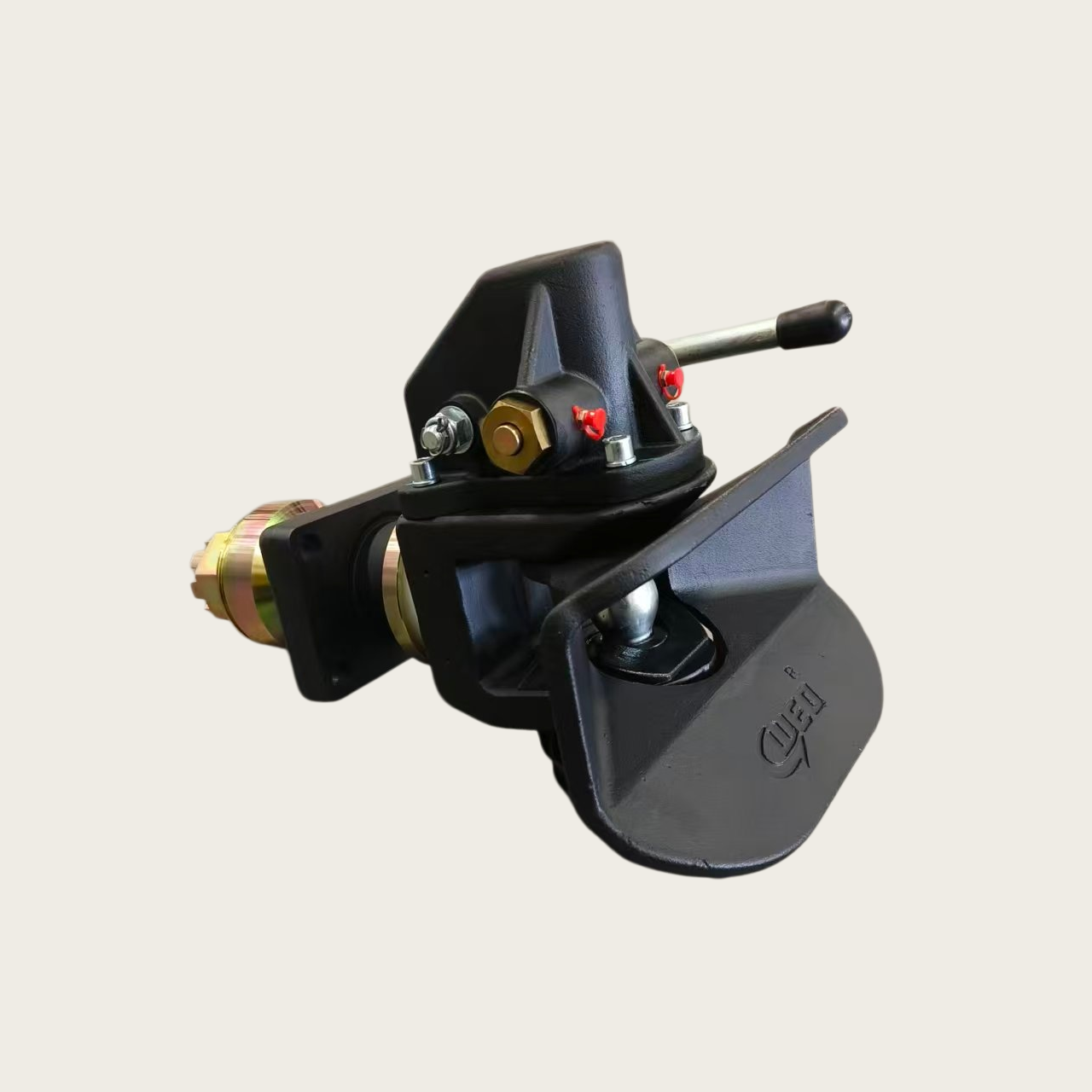

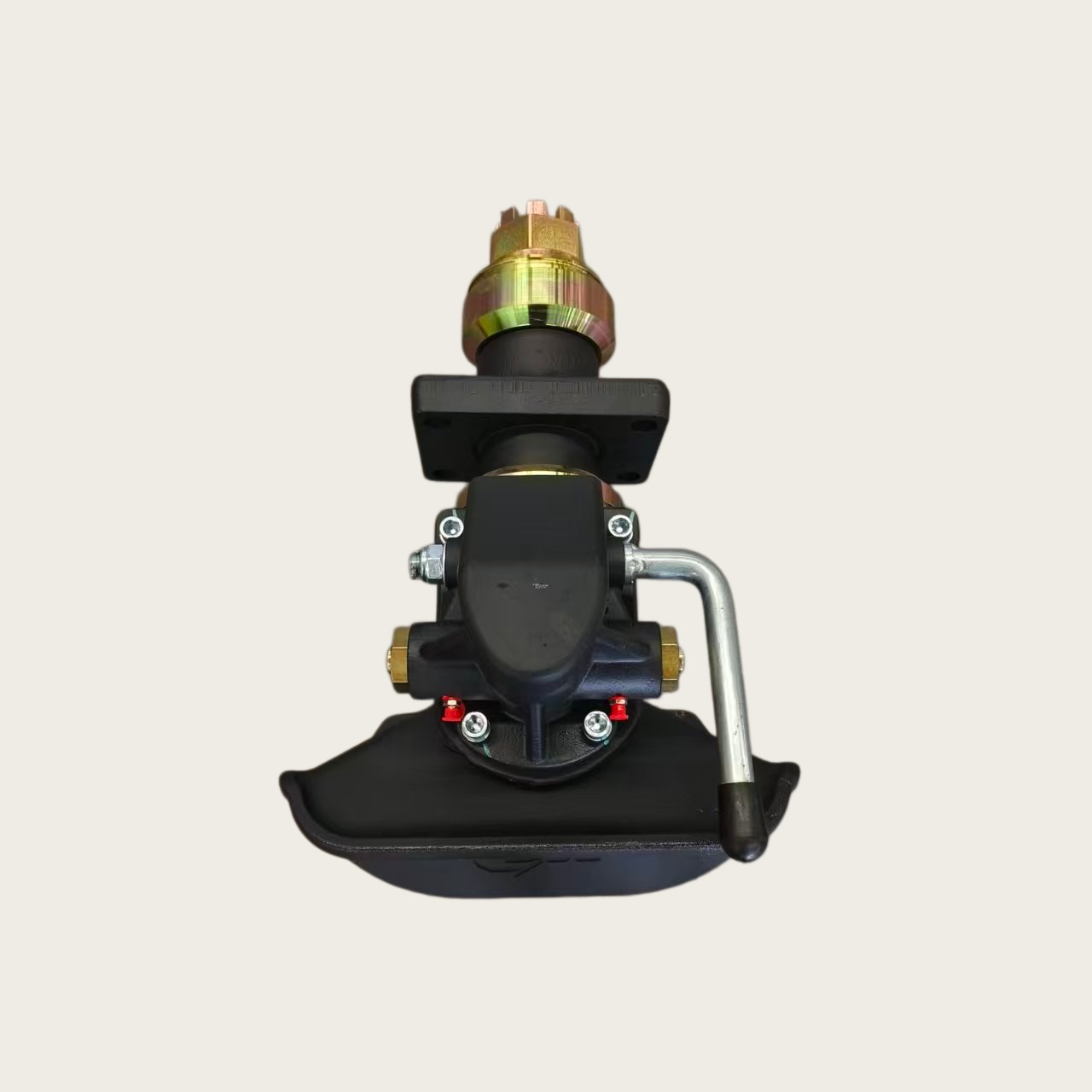

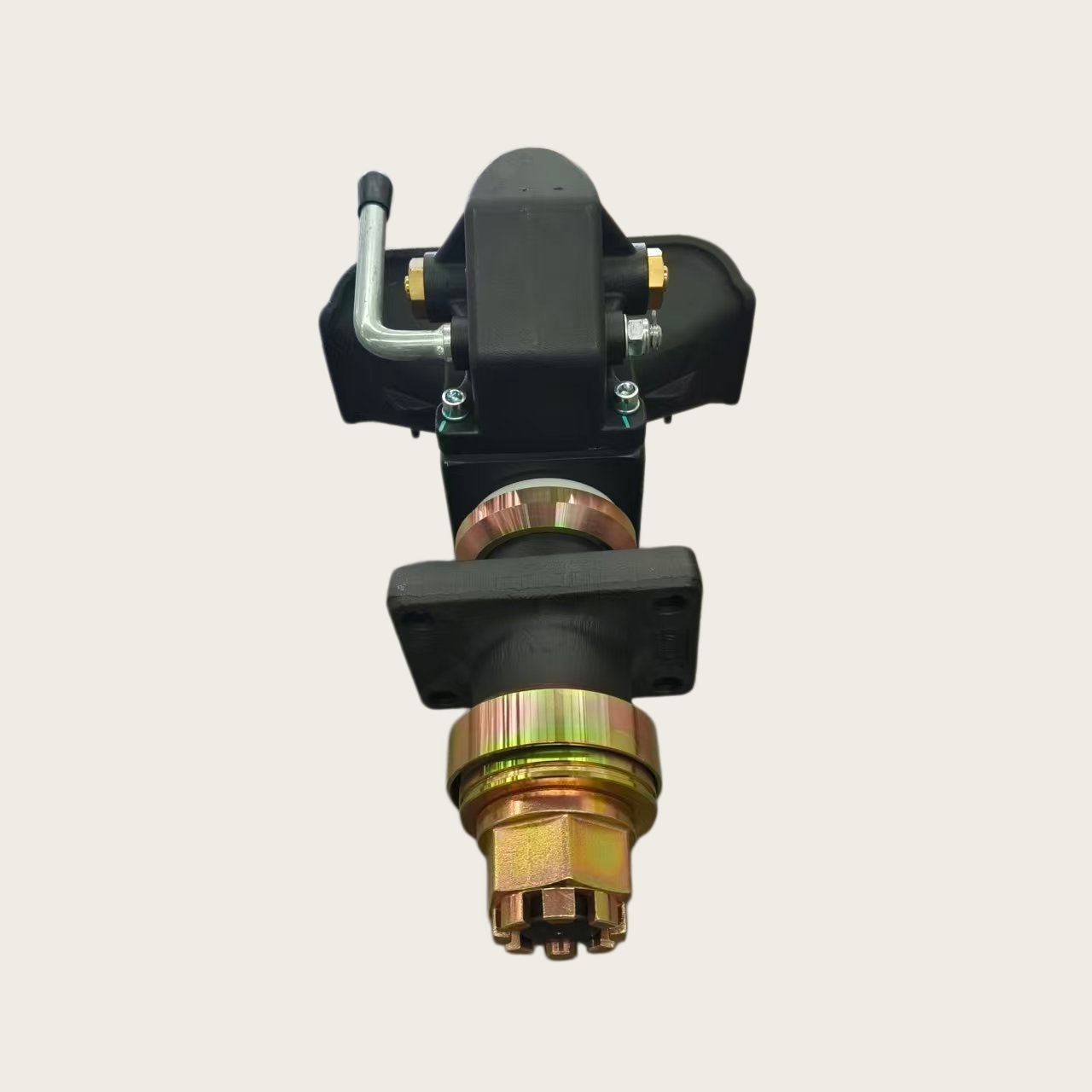

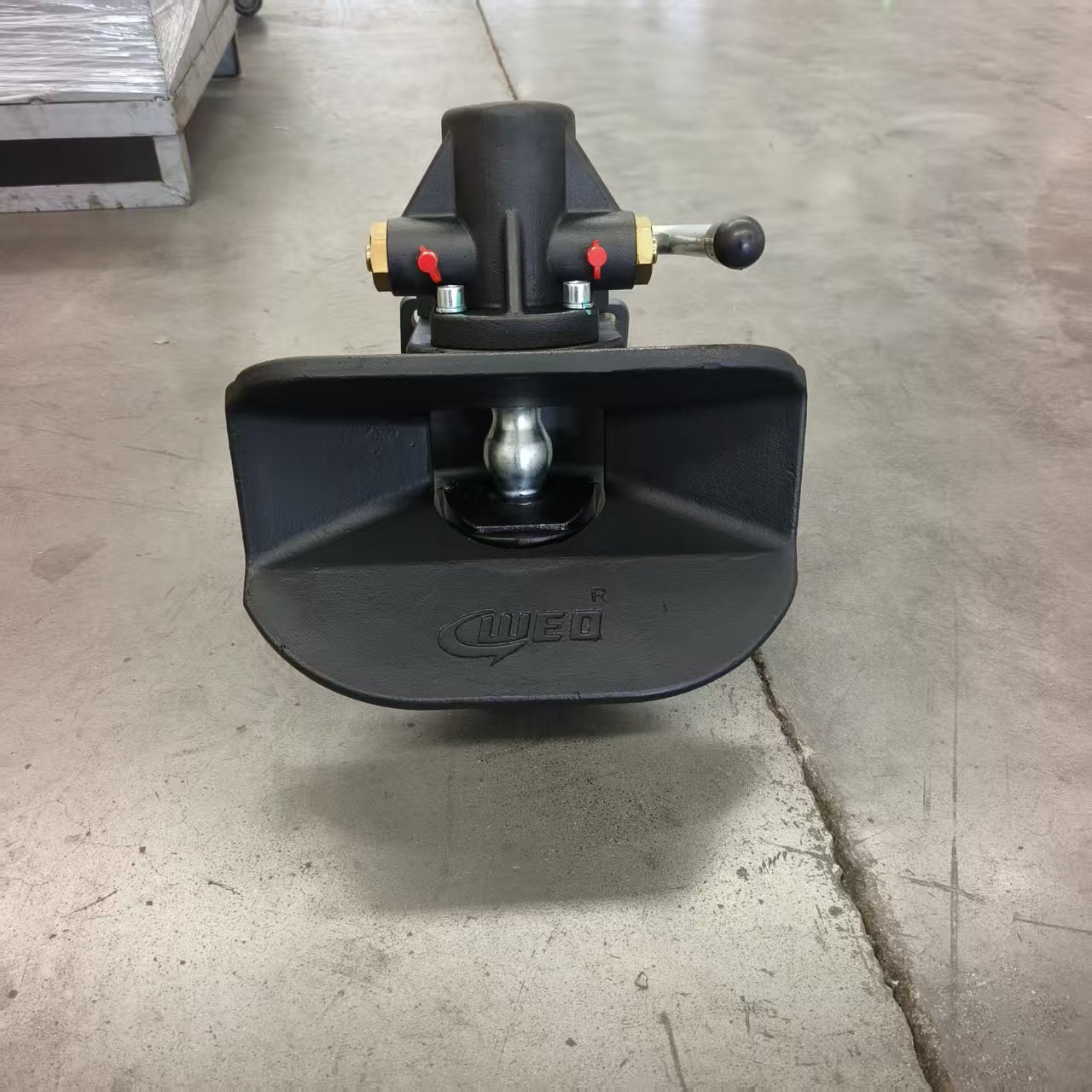

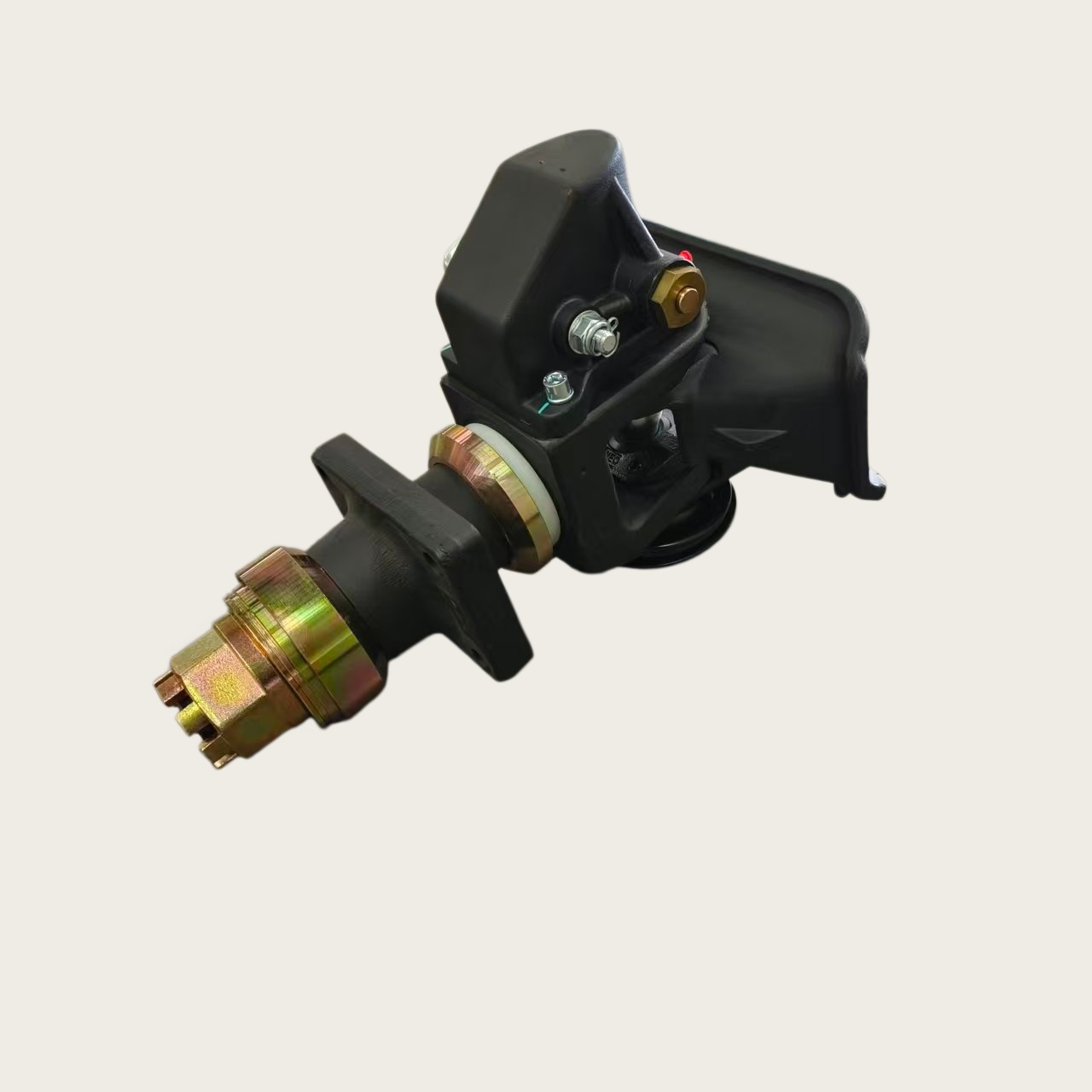

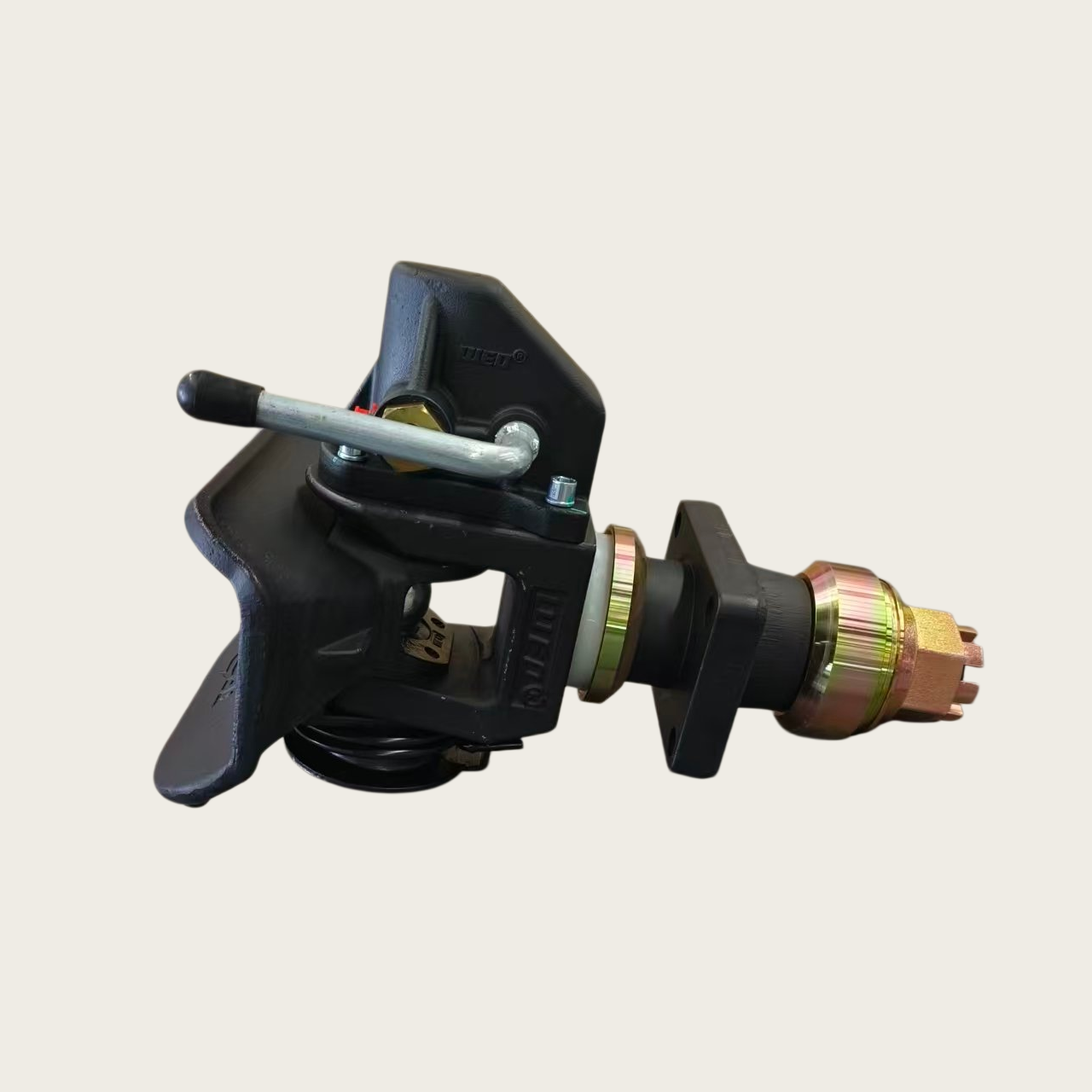

50# Heavy Duty Drawbar Coupler WEQ50 140kN Compression Load Universal Shock Absorber Construction Trailer Connector

Name: 50# Heavy Duty Drawbar Coupler WEQ50 140kN Compression Load Universal Shock Absorber Construction Trailer Connector
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Top heavy-duty WEQ50 trailer coupling with hydraulic & multi-stage rubber composite shock absorption. Max towing load 280kN, vertical static load 1000kg, 140kN compression load and 75kN strong lateral shear resistance. Thick cast steel universal joint and double safety lock, perfect for mining & heavy freight trailers with top-tier load and shock absorption performance.

$440.10 - 441.00

Enviar mensaje Contactar proveedor

Shandong Saiqiang Vehicle Parts Co., Ltd.

Main Products: Landing Legs, Kingpins

Ver proveedor

Year Established Established in 2018

Main Products Landing Legs, Kingpins

Employees 51-100 People

Factory Area > 50,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Africa

Detalles

Especificaciones

Informacion comercial

Full-range Ultra High Load Capacity for Extreme Heavy Duty
280kN longitudinal traction, 140kN compression load, 1000kg vertical static load and 75kN lateral shear resistance. One-piece thick cast steel offers far better tension, torsion and compression resistance than WEQ40E/40F/WEQ45 models, no deformation or fracture under long-term mining, earthwork and long-distance heavy hauling.
Composite Shock Absorption: Hydraulic + Multi-stage Rubber
Outer multi-layer folded rubber buffer cooperates with built-in hydraulic damper to absorb impact during acceleration, braking and bumpy driving, reduce frame & axle fatigue damage and protect cargo for smoother long-distance towing.
360° Universal Swivel Joint
Full-angle universal deflection joint adjusts freely during turning and climbing, eliminates torsion stress to prevent drawbar cracking, improves trafficability on rough terrain.
Double Safety Anti-disengagement Lock System
Extended non-slip handle with red safety latch for double locking to avoid accidental unhooking; side fine-tuning knob accurately adjusts ball clearance to eliminate loose play, safe and stable under high-speed heavy load.
Full Electrophoresis Anti-corrosion & Wear-resistant Finish
Full black electrophoretic coating resists corrosion from rain, mud and mine salt alkali; built-in high wear-resistant alloy bushing prevents loose play after long heavy-duty towing, extends service life greatly.
Widened Thickened Universal Mounting Base
Widened trapezoid flange fits all standard 50# heavy drawbars, direct replacement without cutting or modification, firm and stable installation.

Max Towing Load D

280 kN

Compression Load Dc

140 kN

Vertical Static Load S

1000 kg

Lateral Shear Load V

75 kN

Net Weight

58 kg

Cantidad minima de pedido

1 Piezas

Descripción

Full-range Ultra High Load Capacity for Extreme Heavy Duty
280kN longitudinal traction, 140kN compression load, 1000kg vertical static load and 75kN lateral shear resistance. One-piece thick cast steel offers far better tension, torsion and compression resistance than WEQ40E/40F/WEQ45 models, no deformation or fracture under long-term mining, earthwork and long-distance heavy hauling.
Composite Shock Absorption: Hydraulic + Multi-stage Rubber
Outer multi-layer folded rubber buffer cooperates with built-in hydraulic damper to absorb impact during acceleration, braking and bumpy driving, reduce frame & axle fatigue damage and protect cargo for smoother long-distance towing.
360° Universal Swivel Joint
Full-angle universal deflection joint adjusts freely during turning and climbing, eliminates torsion stress to prevent drawbar cracking, improves trafficability on rough terrain.
Double Safety Anti-disengagement Lock System
Extended non-slip handle with red safety latch for double locking to avoid accidental unhooking; side fine-tuning knob accurately adjusts ball clearance to eliminate loose play, safe and stable under high-speed heavy load.
Full Electrophoresis Anti-corrosion & Wear-resistant Finish
Full black electrophoretic coating resists corrosion from rain, mud and mine salt alkali; built-in high wear-resistant alloy bushing prevents loose play after long heavy-duty towing, extends service life greatly.
Widened Thickened Universal Mounting Base
Widened trapezoid flange fits all standard 50# heavy drawbars, direct replacement without cutting or modification, firm and stable installation.
