Product Overview

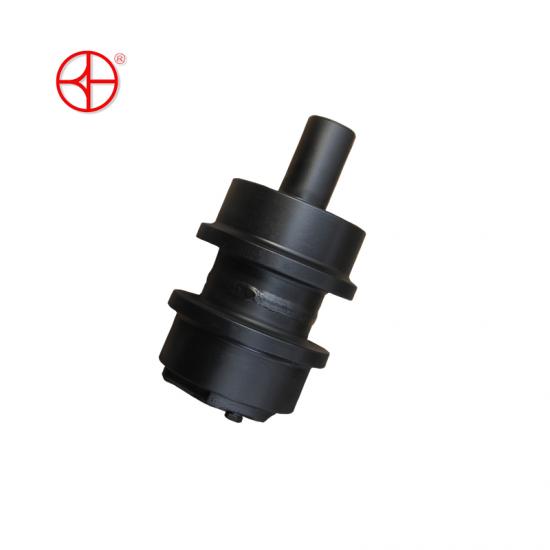

The Carrier Roller, also known as Top Roller or Upper Roller, is mounted above the track frame of the Doosan DX225 crawler excavator.

Its main function is to support the upper track chain and maintain correct chain alignment during travelling. By reducing friction between the track chain and undercarriage frame, the carrier roller helps improve travelling stability and extend the service life of the entire undercarriage system.

A worn or seized carrier roller may cause:

• Track chain vibration
• Abnormal travelling noise
• Increased travelling resistance
• Uneven track chain movement
• Accelerated wear of track links and bushings
• Increased maintenance costs

Our DX225 carrier rollers are manufactured using professional undercarriage production processes and provide a reliable aftermarket replacement solution for equipment dealers, distributors, repair workshops and fleet operators.

Key Features & Benefits

Designed for Doosan DX225

Compatible with:

Doosan DX225

The exact fitment should be confirmed according to machine serial number or existing carrier roller dimensions.

High-Strength Alloy Steel

Manufactured from:

40Mn2 Alloy Steel

Benefits:

• High structural strength
• Excellent impact resistance
• Strong fatigue resistance
• Superior wear resistance
• Long service life

Precision Heat Treatment

Typical specification:

• Surface hardness: HRC 52-58
• Hardening depth: 8mm-12mm

The hardened tread surface improves resistance against continuous track-chain contact and abrasive working conditions.

Reliable Floating Seal System

Equipped with:

• Heavy-duty floating oil seals
• Wear-resistant bushings
• Lifetime internal lubrication

The sealed structure helps prevent lubricant leakage and protects internal components against mud, dust and water contamination.

OEM-Style Direct Replacement

Manufactured with controlled:

• Roller diameter
• Shaft dimensions
• Mounting dimensions
• Track-chain contact dimensions

Designed for direct bolt-on replacement after confirming correct specifications.

Technical Specifications
