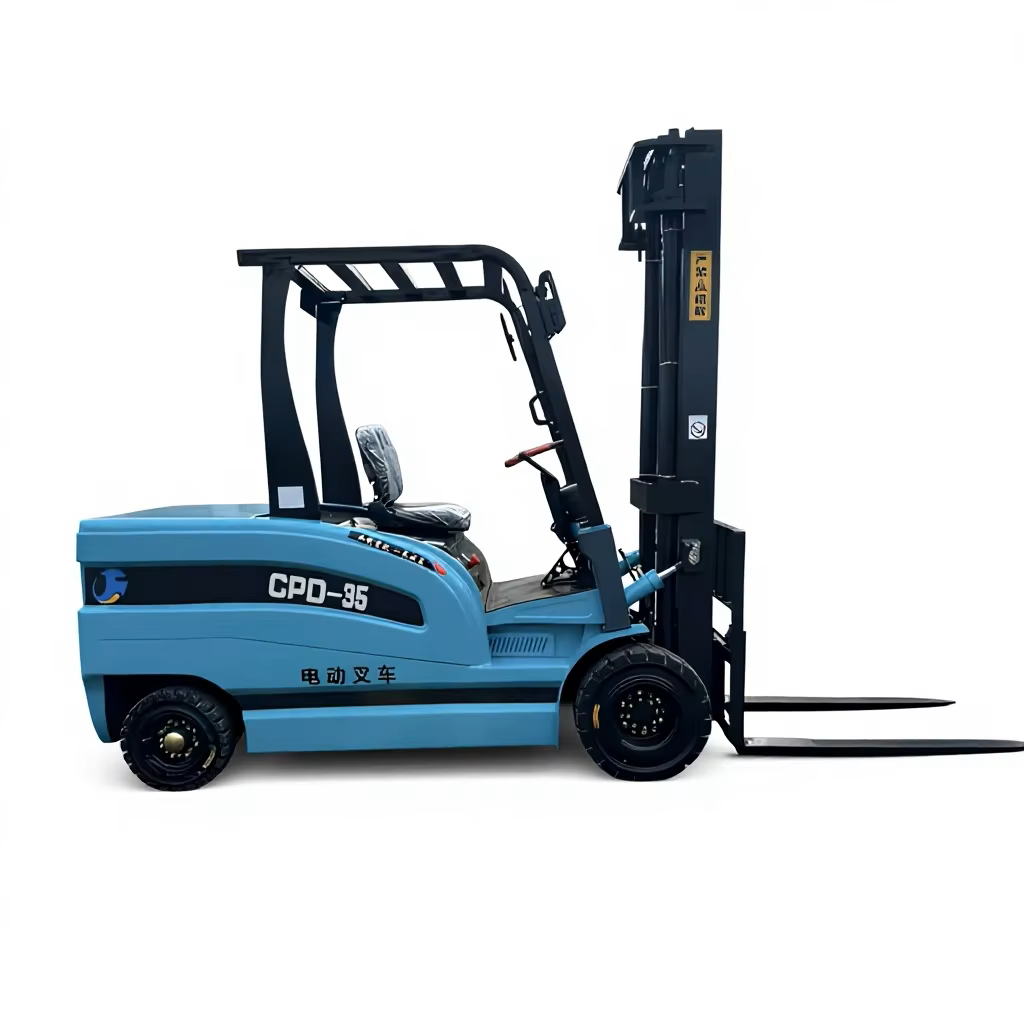

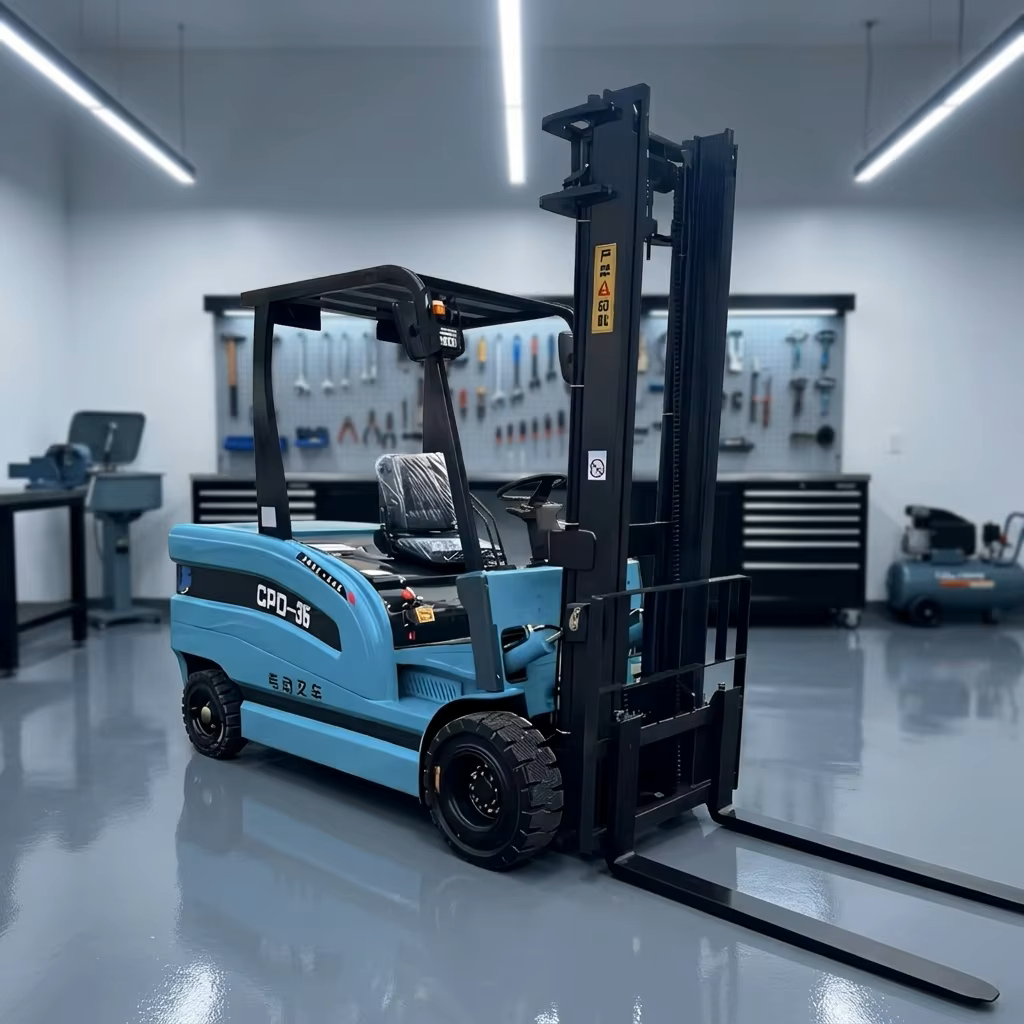

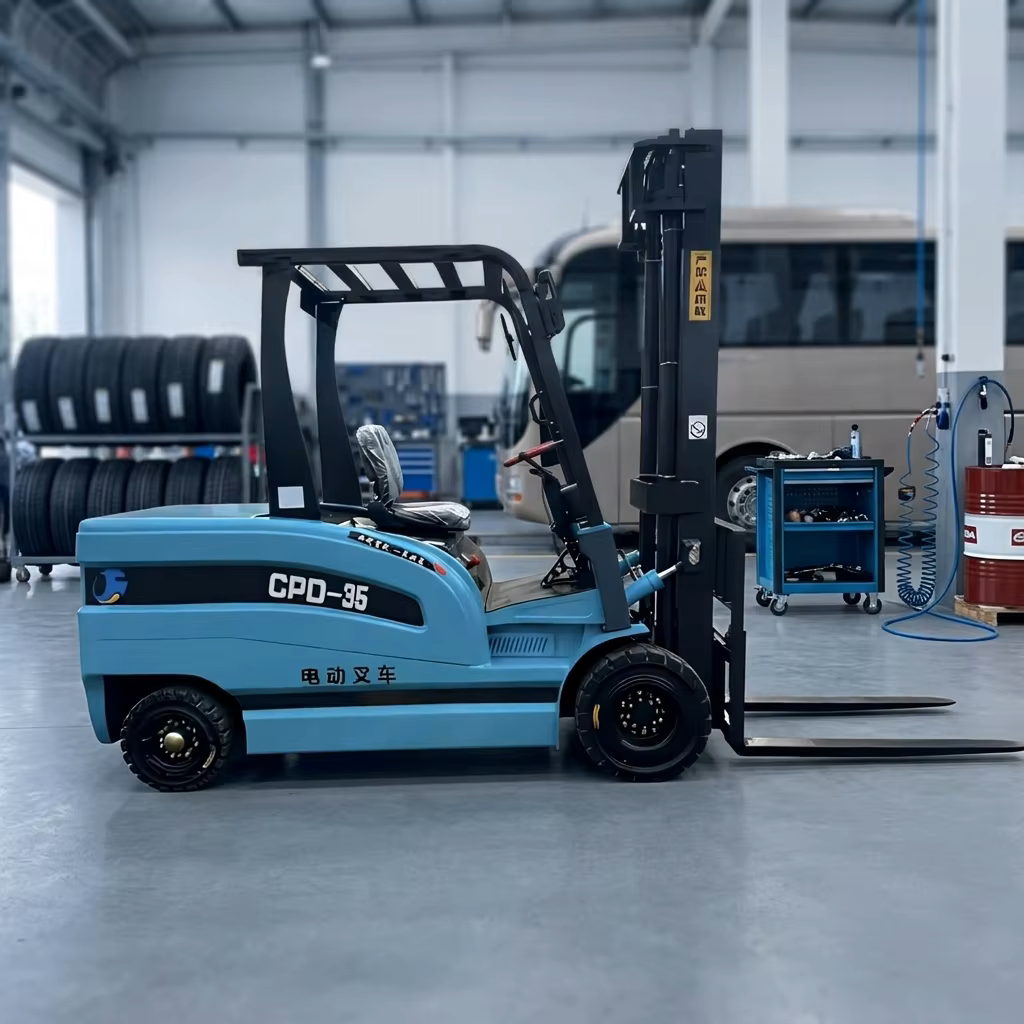

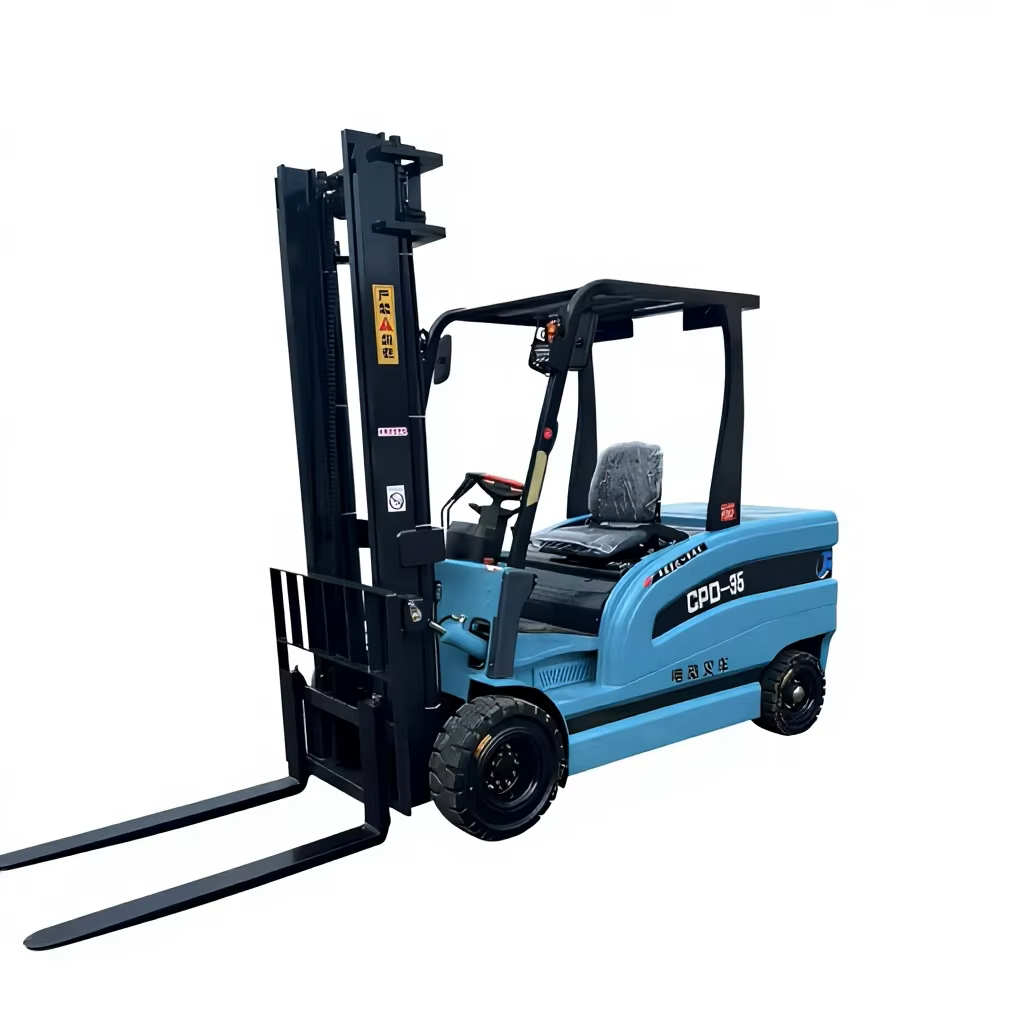

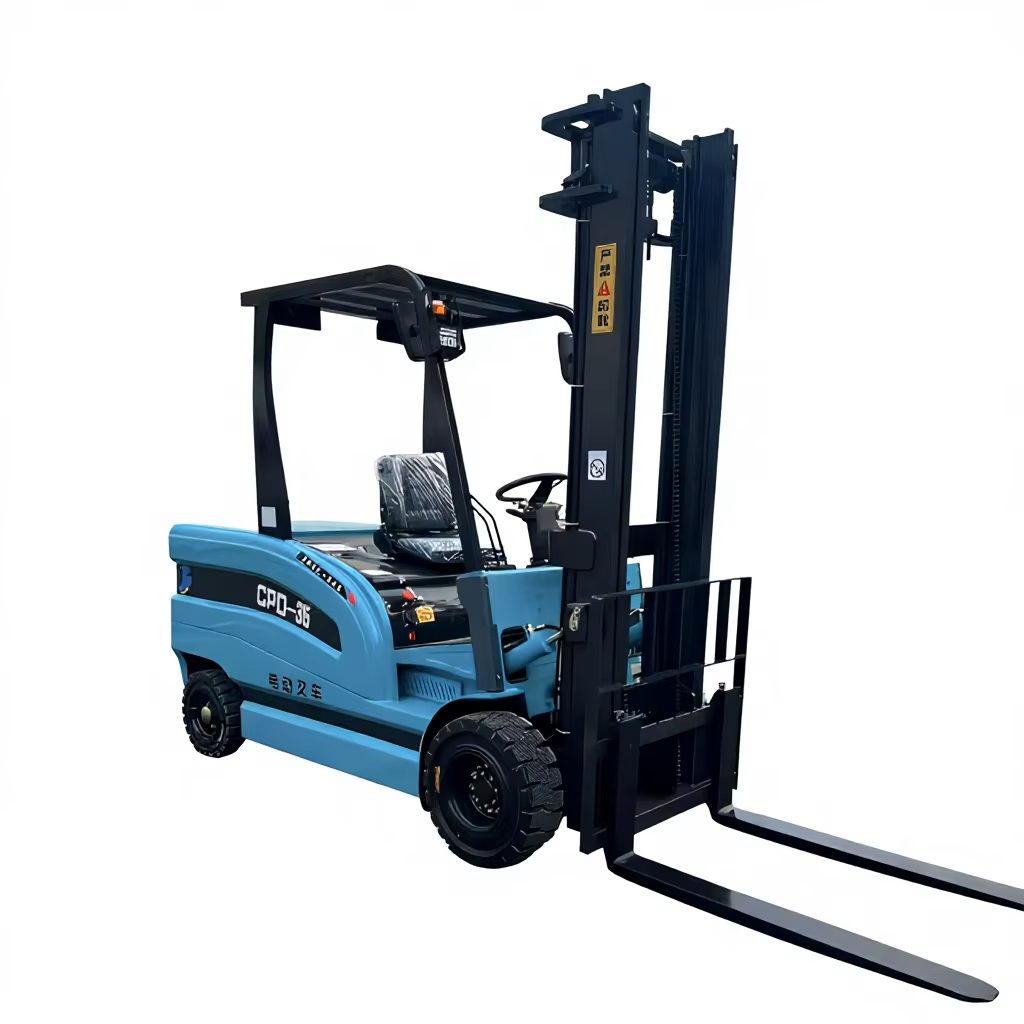

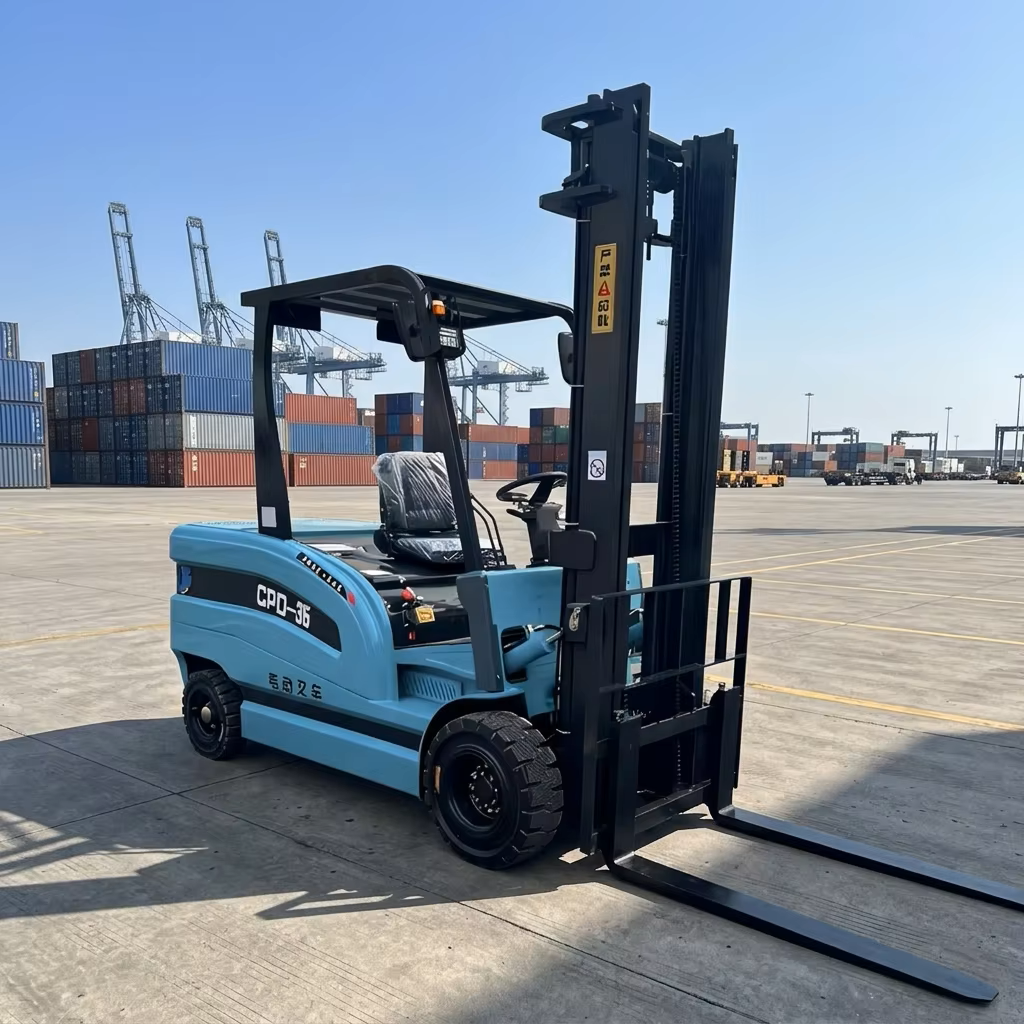

Factory Direct 60V Lithium Battery Drive 3.5 Ton Electric Forklift for Construction Farm Cargo Handling
USD $4200.00
/ Piezas
Pedido mínimo: 1 Piezas
- Model No.:
- CPD3.5
- Drive Type:
- Electric (Battery)
- Operation Type:
- Sit-down
- Rated Capacity:
- 3500kg
- Precio de referencia:
- USD $4200.00
- Cantidad mínima de pedido:
- 1 Piezas
Características y aplicaciones del producto
The CPD3.5 is a sit-down 3.5-ton electric counterbalance forklift with rated capacity of 3500kg and lifting height of 4500mm. Powered by 60V/70A Chaowei dry battery, it adopts national standard AC motors (5000W drive / 4000W lift) for high efficiency and energy saving. With compact dimensions and 2300mm turning radius, it is suitable for warehouses, factories, logistics centers and other scenarios. Tires can be solid or pneumatic, with about 3-year battery life, making it a low-noise, zero-emission industrial handling equipment.CPD3.5为坐式3.5吨电动平衡叉车，额定承载能力3500kg，起升高度4500mm。采用60V铅酸或可选锂电池供电系统，采用国标交流电机（5000W驱动/ 4000W提升），高效节能。尺寸紧凑，转弯半径2300mm，适用于仓库、工厂、物流中心等场景。轮胎可实心或气动，电池寿命约3年，是一种低噪音、零排放的工业搬运设备。
The CPD3.5T sit-down electric counterbalance forklift has a rated capacity of 3500kg and maximum lifting height of 4500mm, suitable for warehouse rack loading and unloading. Powered by 60V/70A Chaowei dry battery, it can work continuously for 3-5 hours after 6 hours of charging. Both drive and lift motors are 5KW AC motors with strong power and high efficiency. Equipped with solid rubber tires for wear resistance and durability, adapting to various ground conditions, with only 2300mm turning radius for flexible operation in narrow aisles. The vehicle has stable structure with hydraulic brake for safety and reliability, widely used in warehouses, factories, logistics centers and other scenarios, a low-noise, zero-emission heavy-duty industrial handling equipment. Sufficient stock supports bulk orders and customization services.CPD2.0坐下式电动平衡叉车，额定承载能力2000kg，最大起升高度4500mm，适合多层货架装卸。采用60V系统供电，标配铅酸电池和可选锂电池，充电8-10小时后可连续工作约5小时，电池寿命约3年。驱动和提升电机采用国标交流电机，功率强，效率高，提供出色的满负荷行程和提升速度。轮胎可选实心或气动，以适应不同的地面条件，只有2300mm的转弯半径，在狭窄的通道中灵活操作。该车结构稳定，采用液压制动，安全可靠，广泛应用于仓库、工厂、物流中心等场景，是一种低噪音、零排放的工业搬运设备。充足的库存支持批量订单和定制服务。
Especificaciones técnicas
- Model No.
- CPD3.5
- Drive Type
- Electric (Battery)
- Operation Type
- Sit-down
- Rated Capacity
- 3500kg
- Power System
- 60V/70A Chaowei Dry Battery
- Drive Motor Power
- National Standard AC 5000W
- Lift Motor Power
- National Standard AC 4000W
- Tire Type
- Solid Rubber / Pneumatic Optional
- Front Tire Size
- 650-10
- Rear Tire Size
- 500-8
- Lifting Height
- 4500mm
- Mast Retracted Height
- 2180mm
- Overhead Guard Height
- 2080mm
- Overall Length (Without Fork)
- 2900mm
- Vehicle Width
- 1200mm
- Fork Dimensions
- 40/535/1070/1220mm
- Turning Radius
- 2300mm
- Full Load Travel Speed
- 11km/h
- Full Load Lifting Speed
- 13m/s
- Service Brake
- Hydraulic
- Charging Time
- 8-10 Hours
- Continuous Working Time
- About 5 Hours
- Battery Lifespan
- About 3 Years
- Vehicle Weight (With Battery)
- About 4350kg
