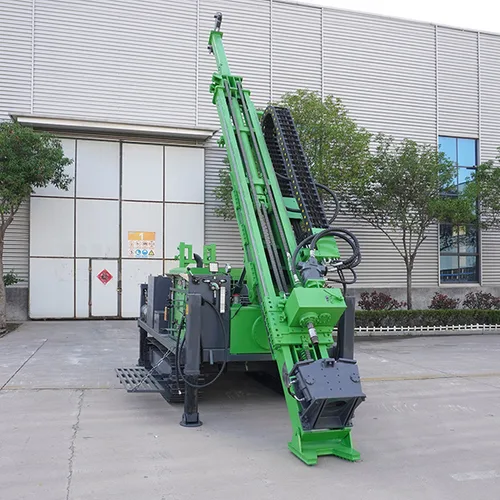

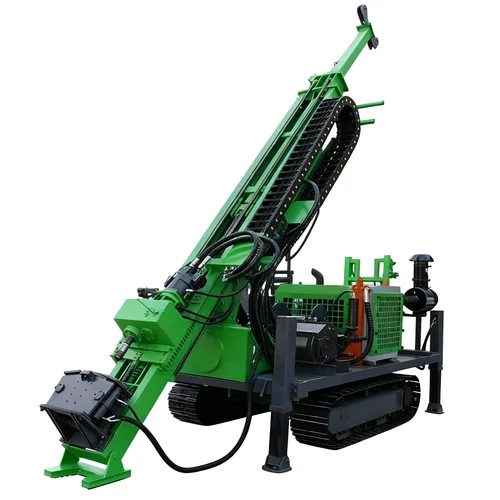

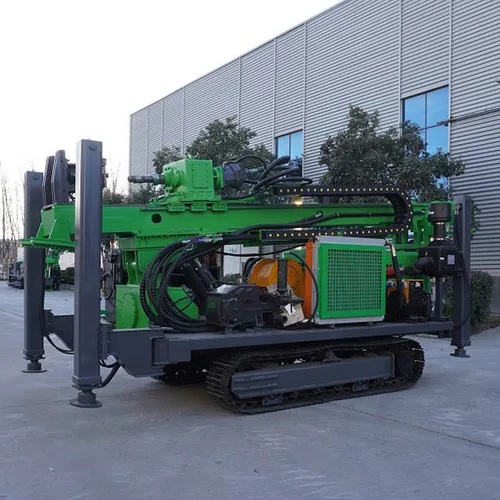

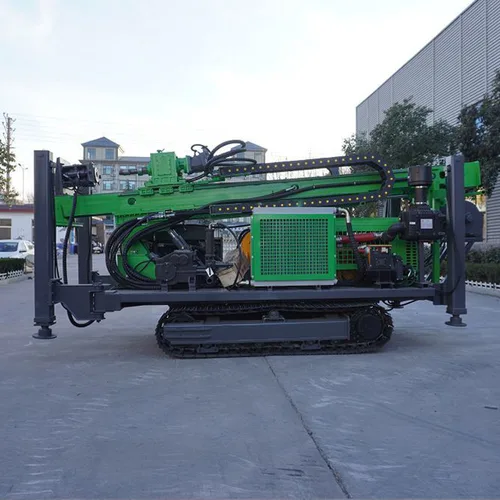

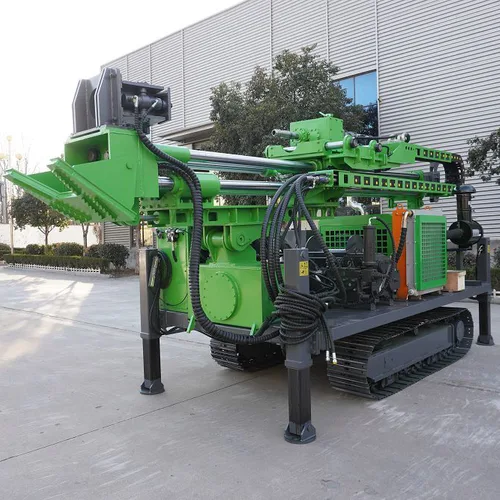

Full Hydraulic Core Drilling Rig Crawler Wireless Remote Control Exploration Drilling Equipment

Name: Full Hydraulic Core Drilling Rig Crawler Wireless Remote Control Exploration Drilling Equipment
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

The full hydraulic core drilling rig is a new generation of drilling equipment developed by our company combining advanced technologies at home and abroad. Adopting full hydraulic drive and load-sensitive control system, it features high torque, high efficiency and stable operation. The rig can perform solid mineral exploration, engineering geological investigation, shallow oil and gas wells, groundwater drilling, tunnel ventilation, drainage, dam grouting and other drilling works, suitable for 45°–90° multi-angle construction. Equipped with wireless remote control crawler and hydraulic leveling system, it has strong terrain adaptability, fast positioning and high safety, ideal for geological and engineering drilling.

$16082.00 - 43860.00

Enviar mensaje Contactar proveedor

Shandong Tengda Construction Machinery Equipment Co., Ltd.

Ver proveedor

Detalles

Especificaciones

This full hydraulic core drilling rig is innovatively upgraded based on absorbing advanced technologies of similar models at home and abroad, with advanced structure and stable performance. The whole machine adopts full hydraulic drive, and the rotation of power head is powered by axial piston pump and inclined axis piston motor, with mechanical two-speed + stepless speed regulation, which can flexibly match speed and torque according to formation.

The power head adopts oil cylinder chain double-speed feeding mechanism with smooth feeding and uniform force, equipped with lateral translation mechanism; the mast is driven by oil cylinder, can slide as a whole, supporting multi-angle drilling from 45° to 90°. The hydraulic system adopts load-sensitive control with low energy consumption, fast response and high efficiency.

The rig is equipped with hydraulic clamp, hydraulic leveling outriggers and telescopic mast for fast and accurate positioning; equipped with wireless remote control crawler traveling system, it can control the rig movement outside the safe distance, adapting to complex terrain and improving operation safety. It is widely used in solid mineral drilling, engineering investigation, shallow oil and gas, groundwater, grouting holes, ventilation and drainage holes and other drilling projects.

Product Name

Full Hydraulic Core Drilling Rig

Travel

Crawler (Wireless Remote Control)

Drive

Full Hydraulic Drive

Speed Control

Mechanical 2-speed + Stepless

Feeding

Cylinder Chain Double-speed Feeding

Drilling Angle

45°–90°
