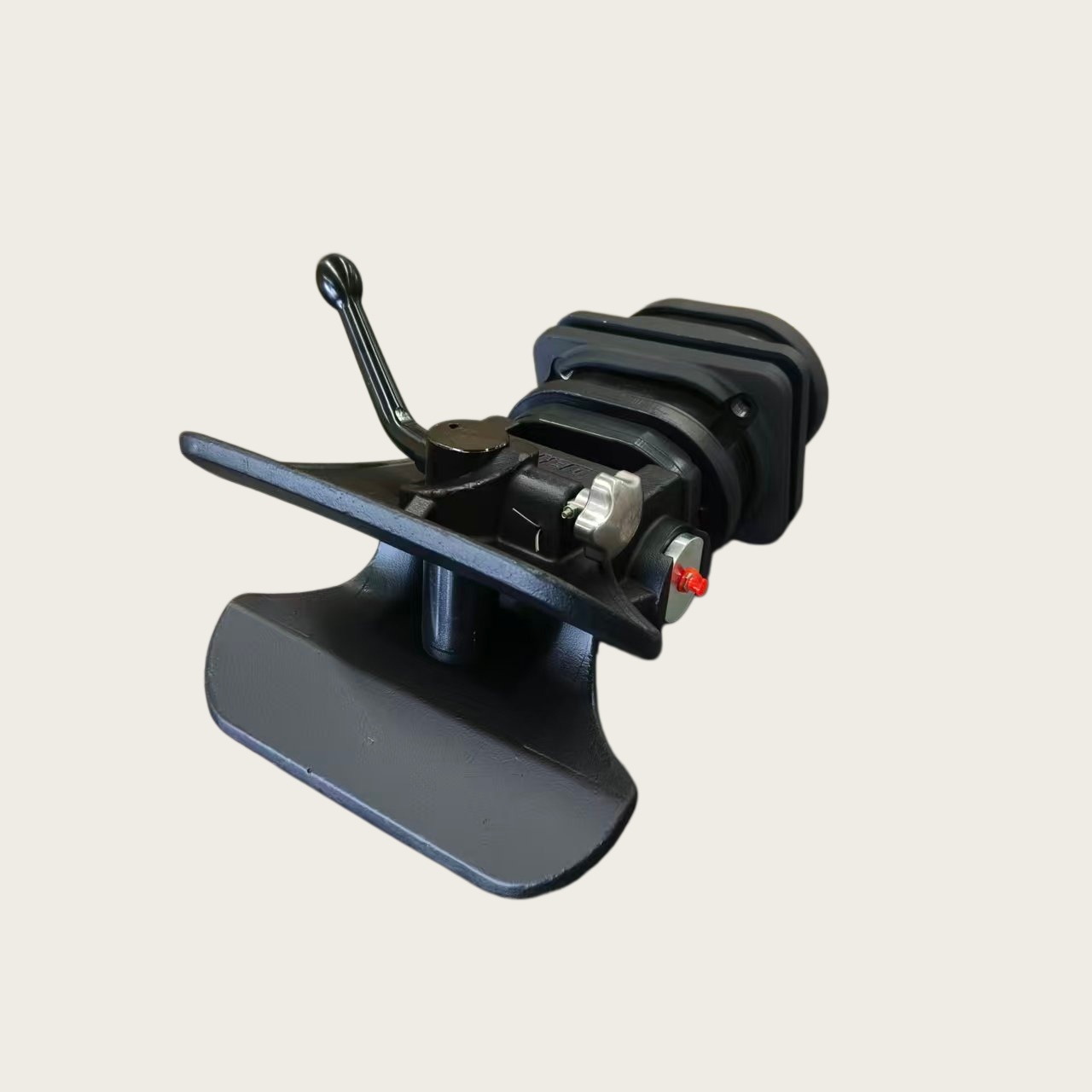

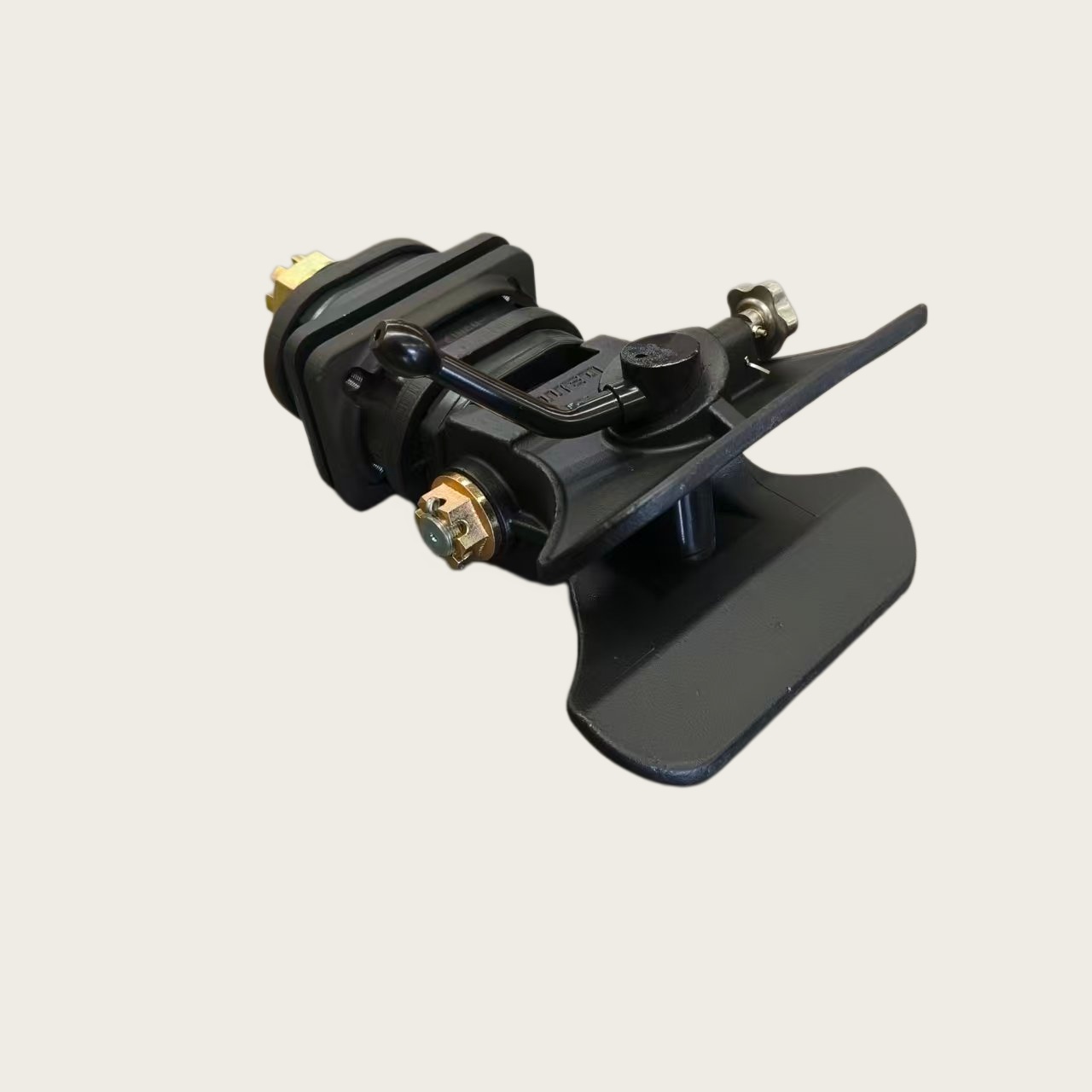

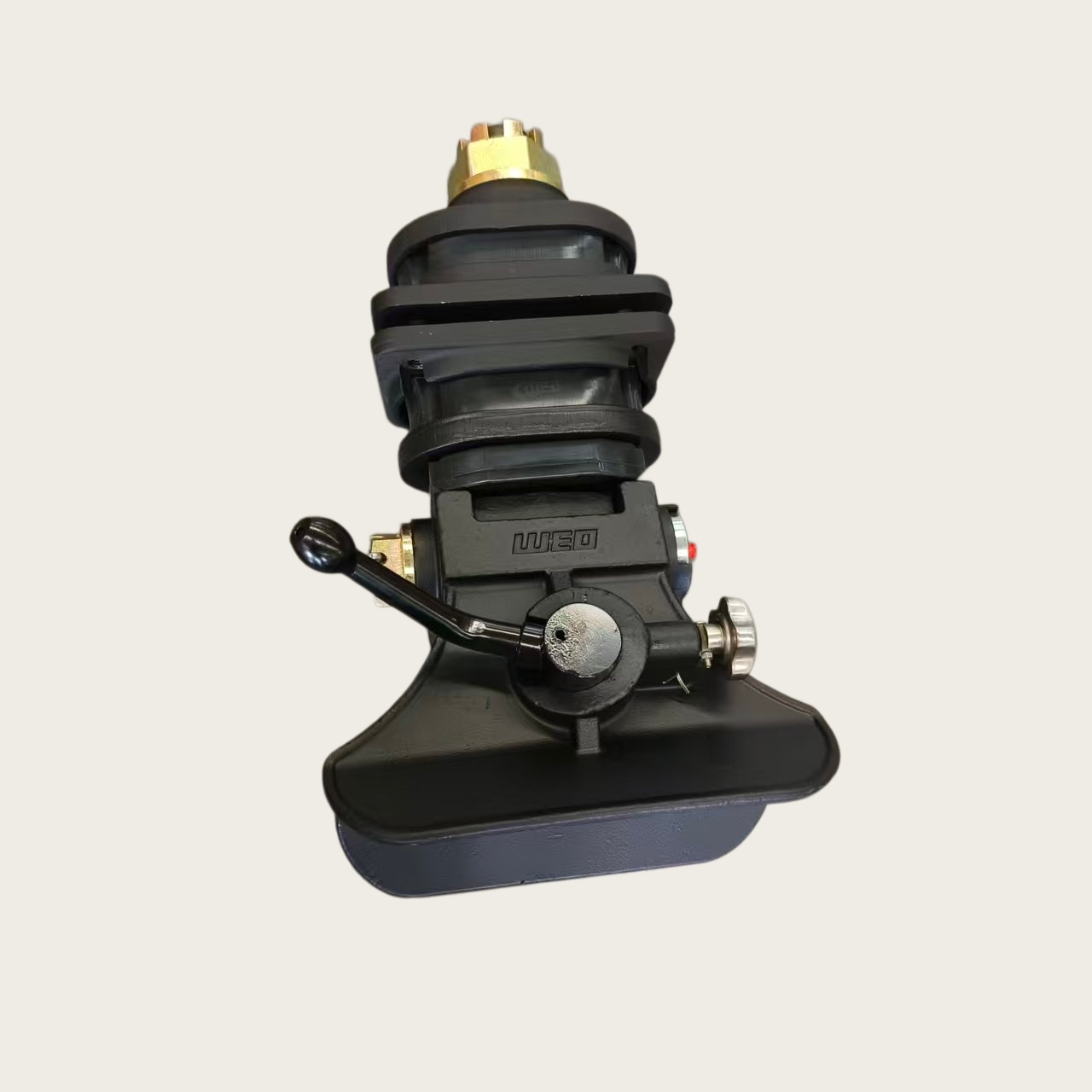

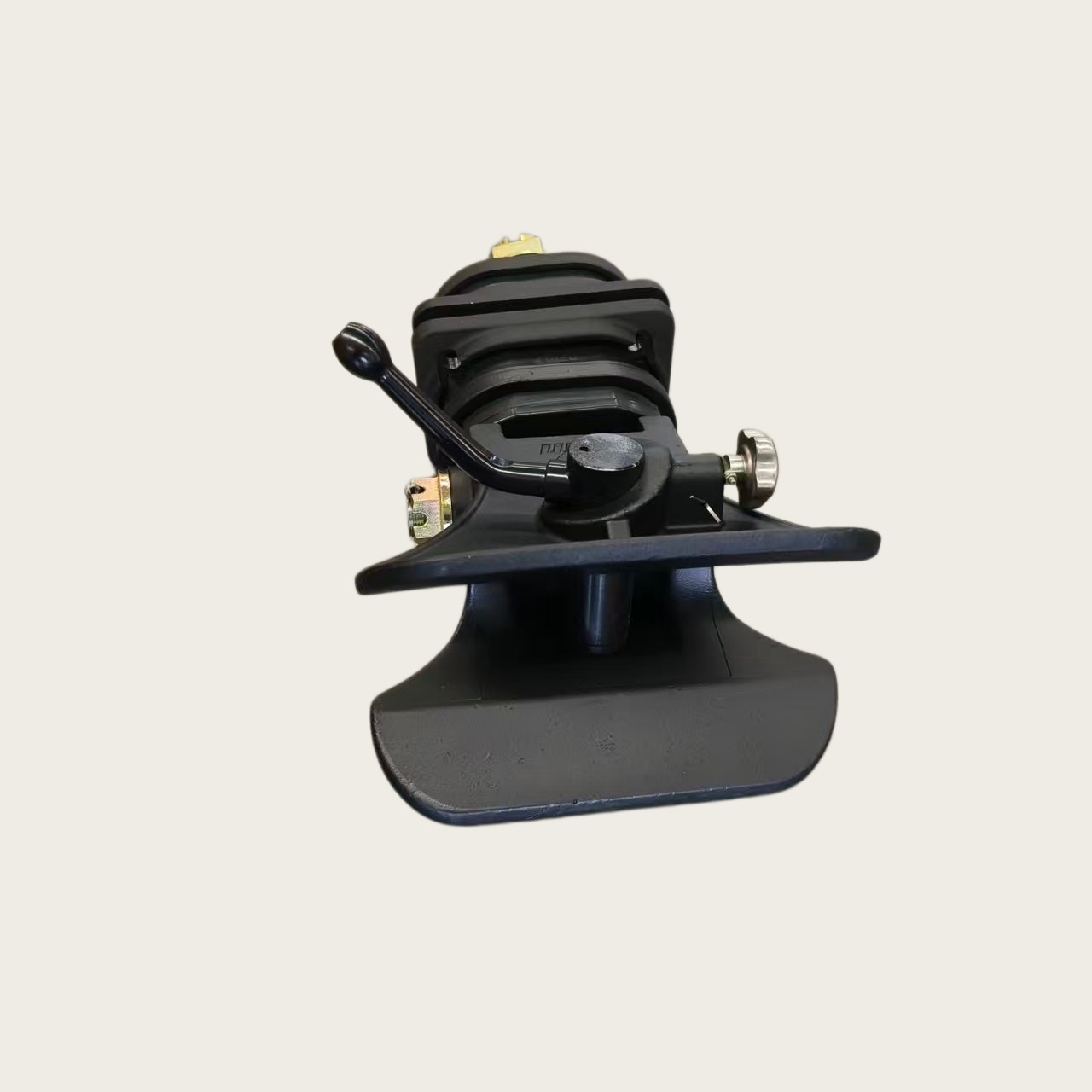

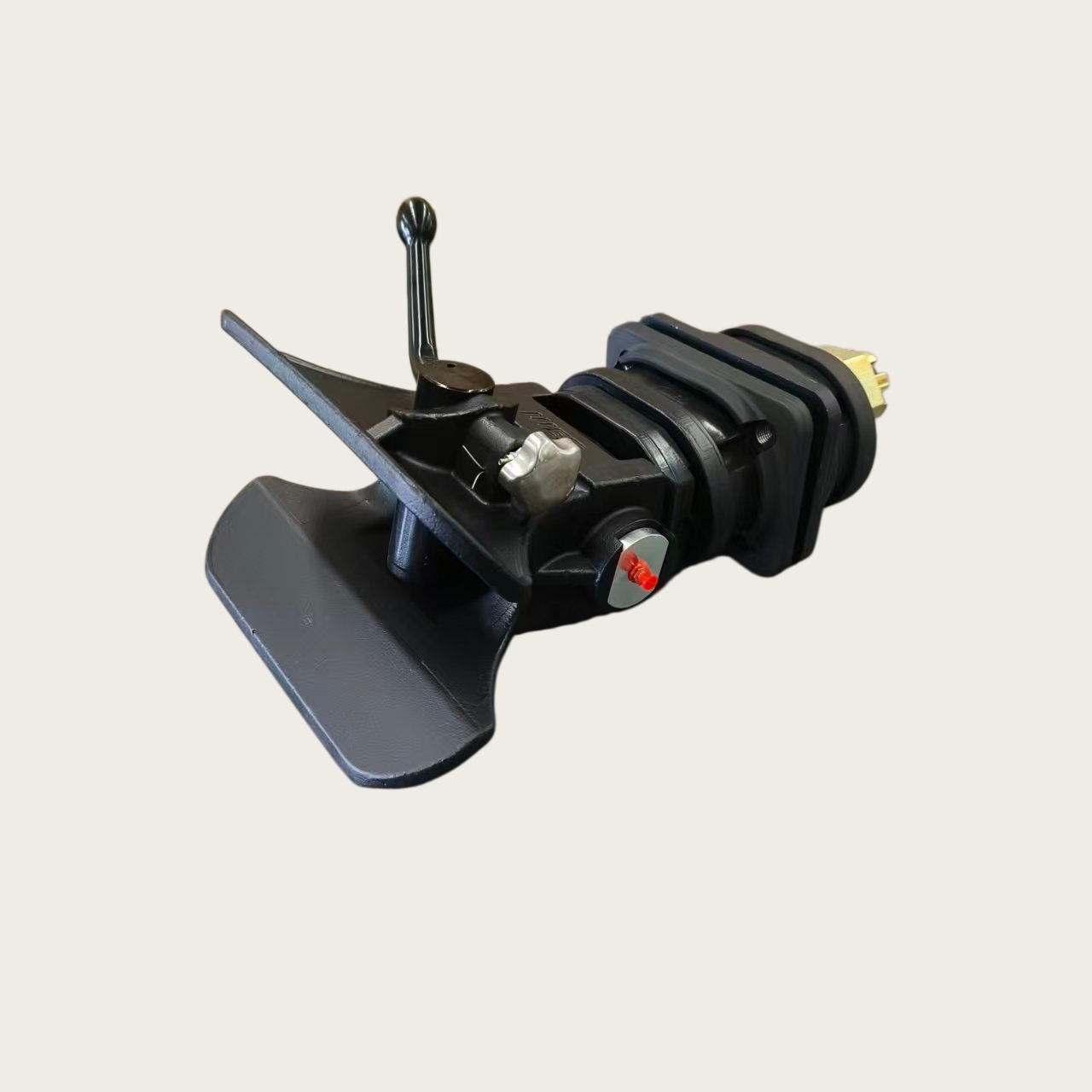

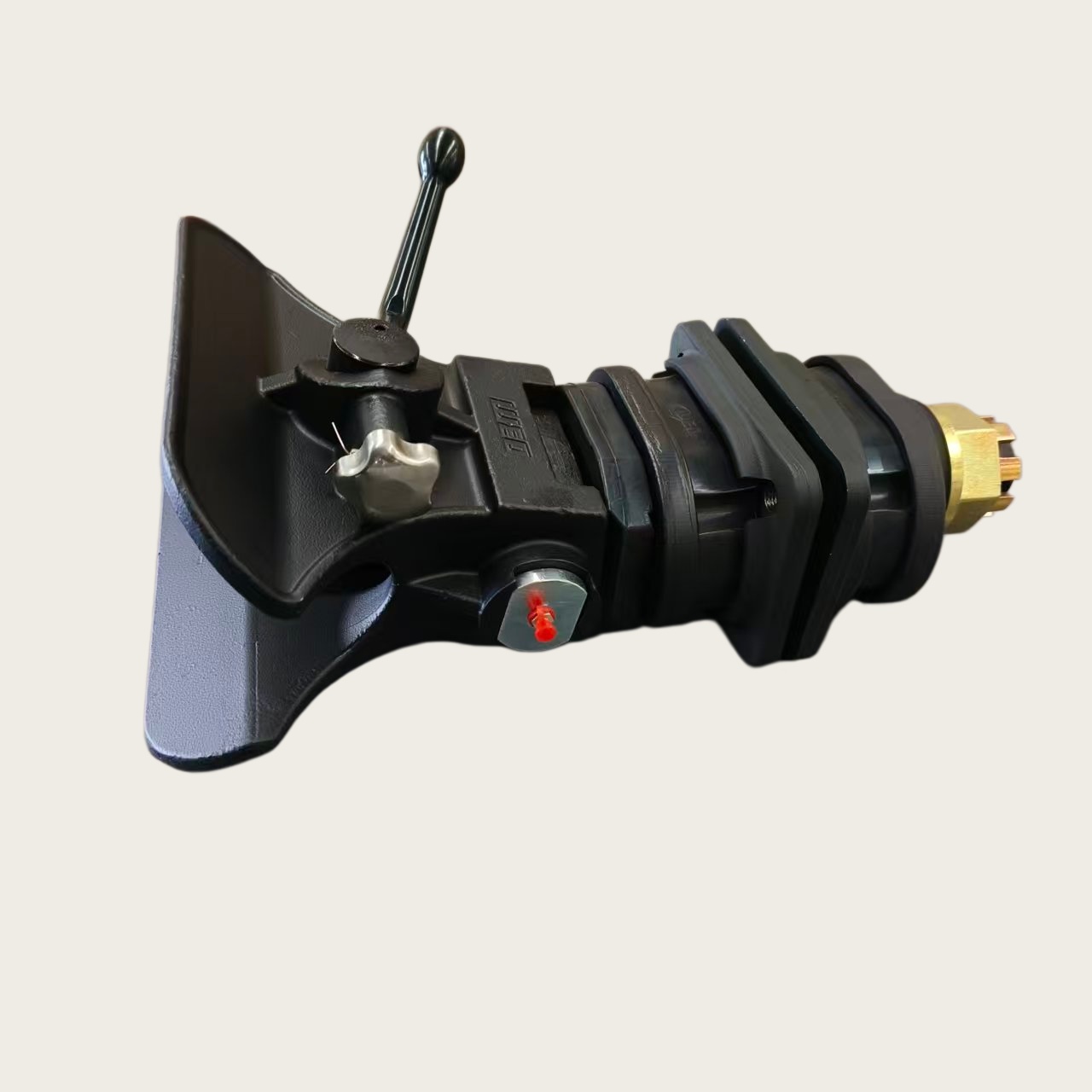

High Load Shock Absorbing Trailer Coupler WEQ45 280kN Towing Force Safety Anti-Drop Towing Head

Name: High Load Shock Absorbing Trailer Coupler WEQ45 280kN Towing Force Safety Anti-Drop Towing Head
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

Top-tier heavy-duty WEQ45 trailer coupling integrated with multi-stage rubber buffer and hydraulic shock absorber, max towing load up to 280kN, 40kN lateral shear resistance. Thick cast steel universal joint and double safety lock, ideal for mining and large construction heavy trailers, excellent shock absorption and ultra-high load capacity.

$381.42 - 382.20

Enviar mensaje Contactar proveedor

Shandong Saiqiang Vehicle Parts Co., Ltd.

Main Products: Landing Legs, Kingpins

Ver proveedor

Year Established Established in 2018

Main Products Landing Legs, Kingpins

Employees 51-100 People

Factory Area > 50,000 m²

Annual Revenue US$5 Million - US$10 Million

Main Markets Southeast Asia / Africa

Detalles

Especificaciones

Informacion comercial

Ultra High 280kN Towing Load for Heavy-duty Operation
Top-level 280kN longitudinal traction force, 40kN lateral shear resistance. One-piece thick cast steel for superior tension, compression and torsion resistance, far better than standard WEQ40E & WEQ40F models, no deformation or fracture under mining, long-distance heavy haul and earthwork transport.
Dual Shock Absorption: Multi-stage Rubber + Hydraulic Damping
Outer multi-layer folded rubber buffer with built-in hydraulic damper fully absorbs impact during acceleration, braking and bumpy road driving, reduce wear on frame and axle, protect cargo from shaking damage, deliver smoother long-distance towing.
360° Universal Swivel Joint
Middle universal deflection joint freely adjusts angle during turning and climbing, eliminates torsion stress to prevent drawbar cracking, greatly improves trafficability on rough terrain.
Double Safety Anti-disengagement Lock System
Extended non-slip operating lever matched with red safety latch for double locking to avoid accidental unhooking; side fine-tuning knob precisely adjusts ball clearance to eliminate loose play, safe and stable on rough high-speed roads.
Full Electrophoresis Anti-corrosion & Wear-resistant Finish
Full black electrophoretic coating blocks corrosion from rain, mud and mine salt alkali; built-in wear-resistant alloy bushing prevents loose play after long-term heavy-duty towing, extended service life.
Universal Widened Mounting Base
Widened trapezoid flange fits all standard 45# drawbars, direct replacement without cutting or modification, easy and firm installation.

Max Towing Load D

280 kN

Compression Load Dc

Expandable

Vertical Static Load S

Ultra High Capacity

Lateral Shear Load V

40 kN

Net Weight

40 kg

Cantidad minima de pedido

1 Piezas

Descripción

Ultra High 280kN Towing Load for Heavy-duty Operation
Top-level 280kN longitudinal traction force, 40kN lateral shear resistance. One-piece thick cast steel for superior tension, compression and torsion resistance, far better than standard WEQ40E & WEQ40F models, no deformation or fracture under mining, long-distance heavy haul and earthwork transport.
Dual Shock Absorption: Multi-stage Rubber + Hydraulic Damping
Outer multi-layer folded rubber buffer with built-in hydraulic damper fully absorbs impact during acceleration, braking and bumpy road driving, reduce wear on frame and axle, protect cargo from shaking damage, deliver smoother long-distance towing.
360° Universal Swivel Joint
Middle universal deflection joint freely adjusts angle during turning and climbing, eliminates torsion stress to prevent drawbar cracking, greatly improves trafficability on rough terrain.
Double Safety Anti-disengagement Lock System
Extended non-slip operating lever matched with red safety latch for double locking to avoid accidental unhooking; side fine-tuning knob precisely adjusts ball clearance to eliminate loose play, safe and stable on rough high-speed roads.
Full Electrophoresis Anti-corrosion & Wear-resistant Finish
Full black electrophoretic coating blocks corrosion from rain, mud and mine salt alkali; built-in wear-resistant alloy bushing prevents loose play after long-term heavy-duty towing, extended service life.
Universal Widened Mounting Base
Widened trapezoid flange fits all standard 45# drawbars, direct replacement without cutting or modification, easy and firm installation.
