Product Overview

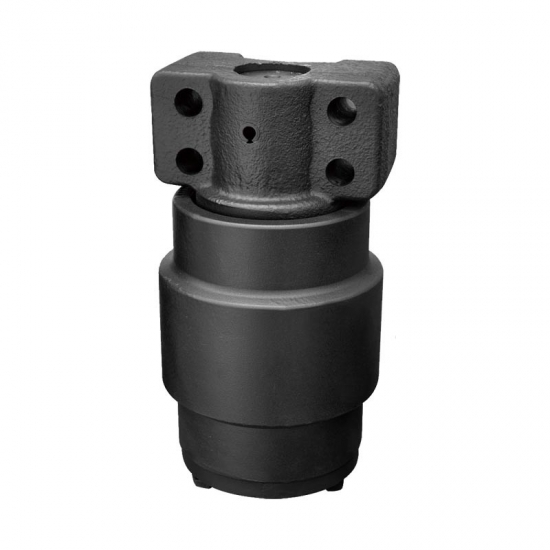

The Carrier Roller, also known as Top Roller or Upper Roller, is mounted above the track frame of the Hitachi ZX240-3 crawler excavator.

Its primary function is to support the upper track chain and maintain correct chain alignment during travelling. By keeping the track chain properly positioned, the carrier roller helps reduce friction, vibration and unnecessary wear throughout the undercarriage system.

A worn or seized carrier roller may result in:

• Track chain vibration
• Abnormal travelling noise
• Increased travelling resistance
• Uneven track chain movement
• Accelerated track link and bushing wear
• Increased undercarriage maintenance costs

Our ZX240-3 carrier rollers are manufactured using professional undercarriage production processes and provide a reliable aftermarket replacement solution for equipment dealers, distributors, repair workshops and fleet operators.

Key Features & Benefits

Designed for Hitachi ZX240-3

Compatible with:

Hitachi ZX240-3

The exact mounting configuration should be confirmed using the machine serial number or existing carrier roller before ordering.

High-Strength Alloy Steel

Manufactured from 40Mn2 Alloy Steel, providing high structural strength, impact resistance, fatigue resistance and excellent wear resistance.

Precision Heat Treatment

Typical specification:

• Surface hardness: HRC 52-58
• Hardening depth: 8mm-12mm

This improves resistance to continuous track-chain contact and abrasive working conditions.

Reliable Floating Seal System

Equipped with heavy-duty floating oil seals, wear-resistant bushings and lifetime internal lubrication to help retain lubricant and protect internal components from dust, mud and water.

OEM-Style Direct Replacement

Manufactured with controlled roller diameter, shaft dimensions, mounting dimensions and track-chain contact dimensions for bolt-on replacement when the correct configuration is selected.

Technical Specifications
