Light-duty 30m Aerial Work Platform on Foton Pilot S1, Flexible & Efficient for Urban Work
Pedido mínimo: 1 Unidad
- Model:
- Foton Pilot S1 GK30MAX Aerial Work Platform
- Chassis Model:
- Foton Pilot S1
- Engine Model:
- H20-120E60 (Quanchai 122HP)
- Transmission:
- Miles Young 5-speed
- Precio de referencia:
- USD $30300.00
- Cantidad mínima de pedido:
- 1 Unidad
Características y aplicaciones del producto

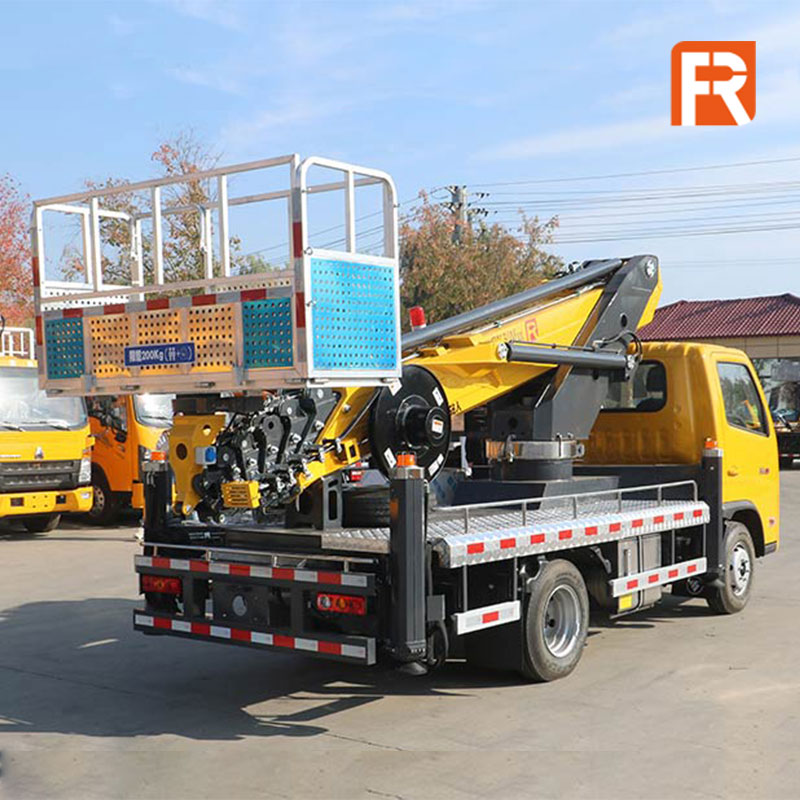

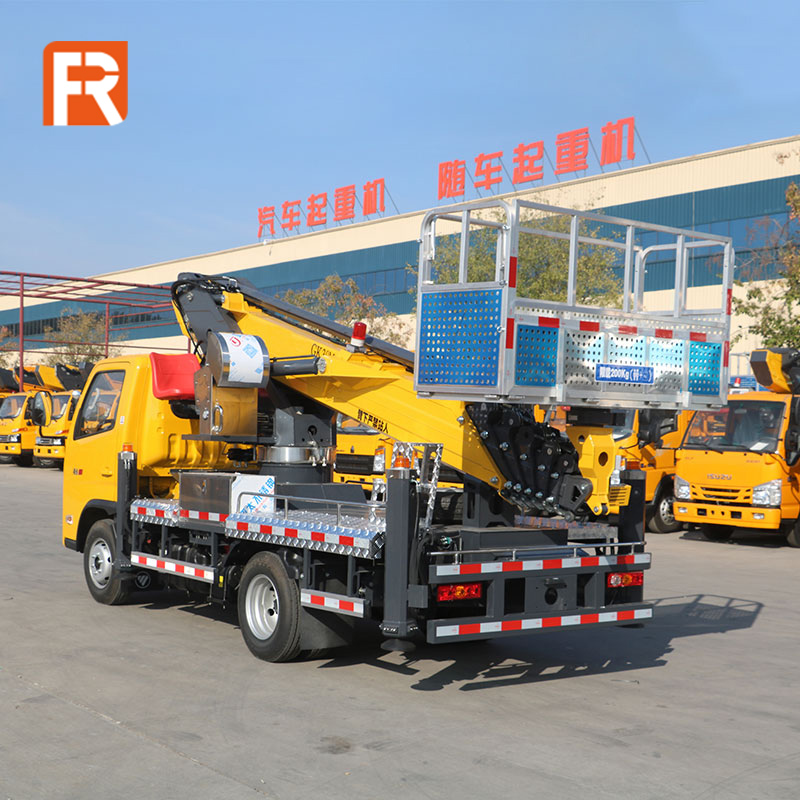

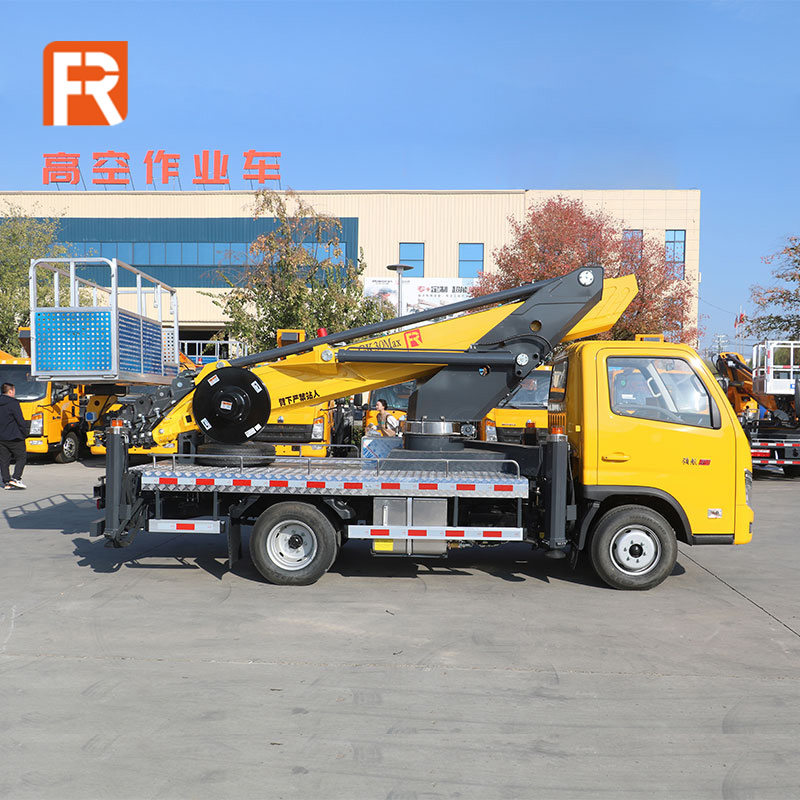

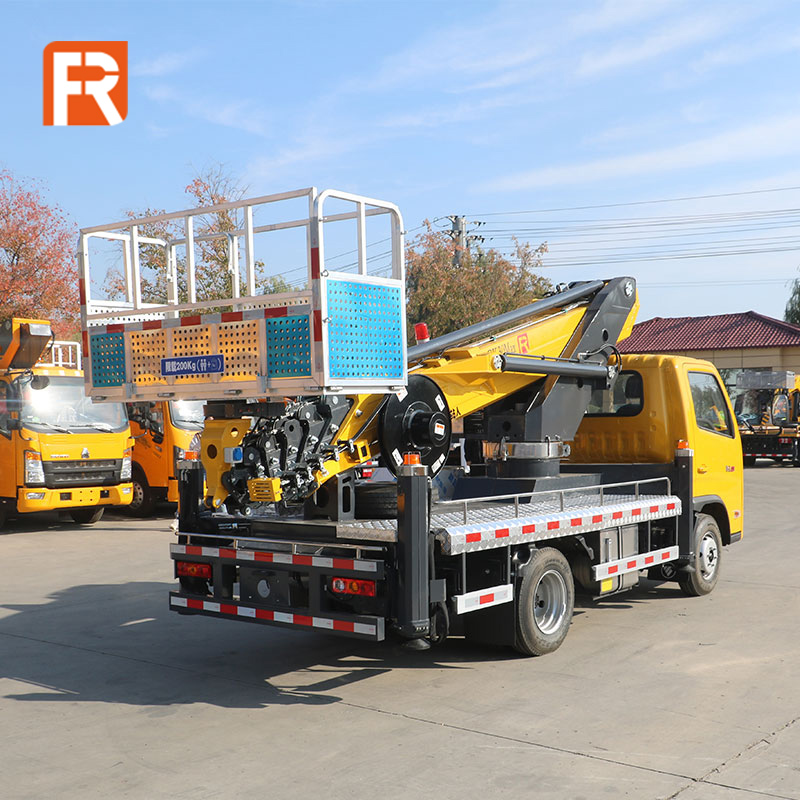

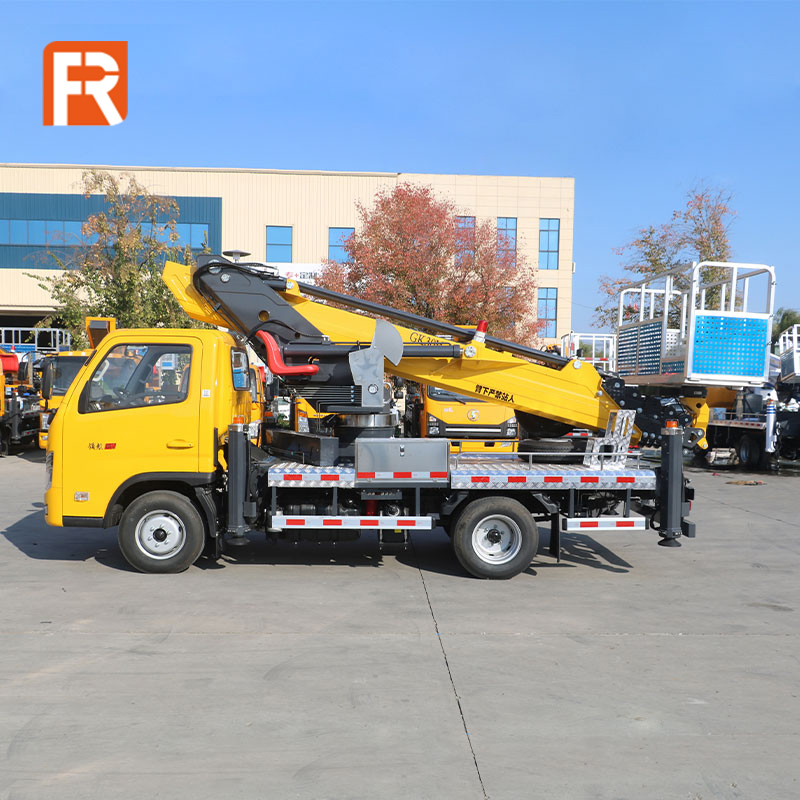

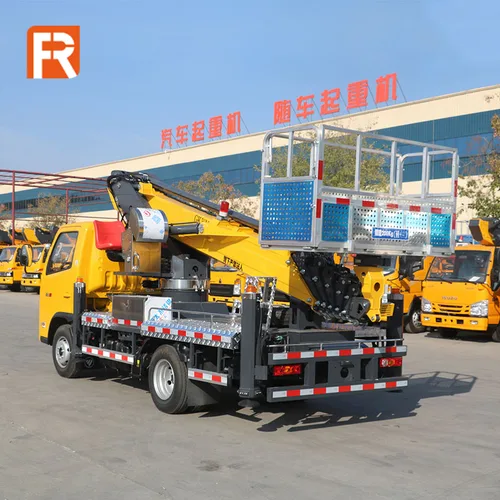

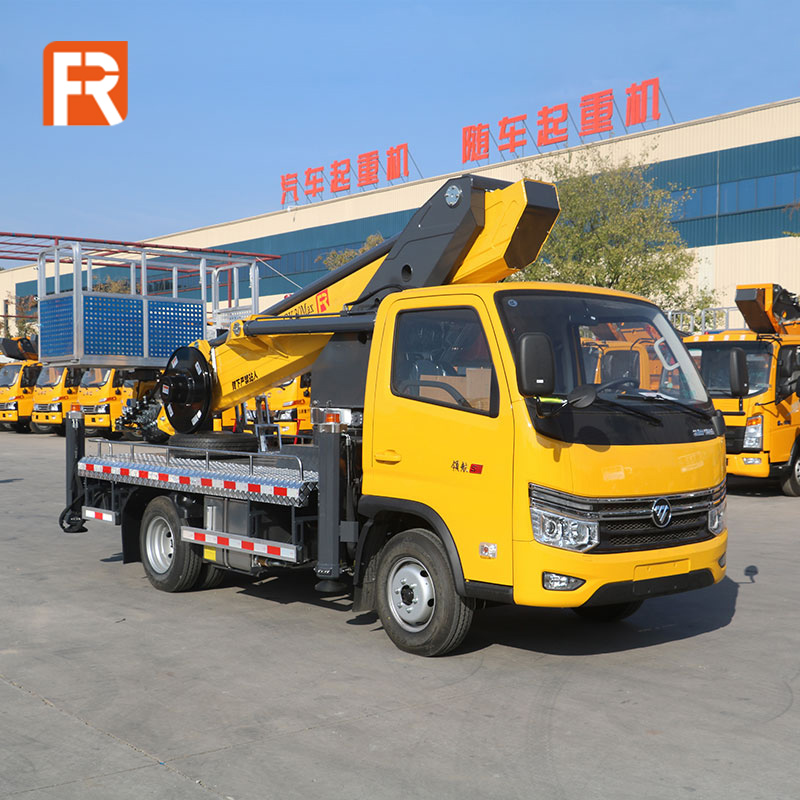

This Foton Pilot S1 GK30MAX aerial work platform is built on Foton Pilot S1 chassis, powered by Quanchai 122HP engine with Miles Young 5-speed transmission for stable performance. The GK30MAX aerial platform offers 30.3m max working height, 15m working radius, 200kg platform load and 360° infinite platform rotation. Equipped with dual steel wire safety design, X-shaped double-section outriggers and emergency power source, it is a light-duty and efficient equipment for urban aerial work.
Especificaciones técnicas
- Model
- Foton Pilot S1 GK30MAX Aerial Work Platform
- Chassis Model
- Foton Pilot S1
- Engine Model
- H20-120E60 (Quanchai 122HP)
- Transmission
- Miles Young 5-speed
- Total Mass
- 4495kg
- Curb Weight
- 4365kg
- Wheelbase
- 2800mm
- Overall Dimension
- 5995×2050×2800mm
- Tire Size
- 6.50R15LT Steel Wire Tires
- Brake System
- Oil Brake
- Cab Featu
- Original AC, Power Windows/Locking, MP3 Player
- Aerial Platform Model
- GK30MAX
- Max Working Height
- 30.3m
- Max Working Radius
- 15m
- Platform Rated Load
- 200kg
- Platform Dimensions
- 1600×700×1100mm (With Small Loading Platform)
- Platform Rotation Range
- 360° Infinite Rotation
- Boom Structure
- 7-section Boom, 6 Synchronous Sections, Dual Main/Spare Steel Wires
- Control System
- Domestic Control System + Wireless Remote (Three-way Operation)
- Hydraulic System
- Electro-hydraulic Proportional Valve (Stepless Speed) + Emergency Power
- Outrigger Type
- X-shaped 4 Double-section Outriggers (Individually Adjustable)
- Outrigger Spans
- 5400mm × 5650
- Aisle Plate
- Steel Non-slip Walking Board
- Safety Devices
- Upper/Lower Interlock, Emergency Power, Bidirectional Hydraulic Balance Valve
Especificaciones comerciales
- Precio de referencia
- USD $30300.00
- Cantidad mínima de pedido
- 1 Unidad
