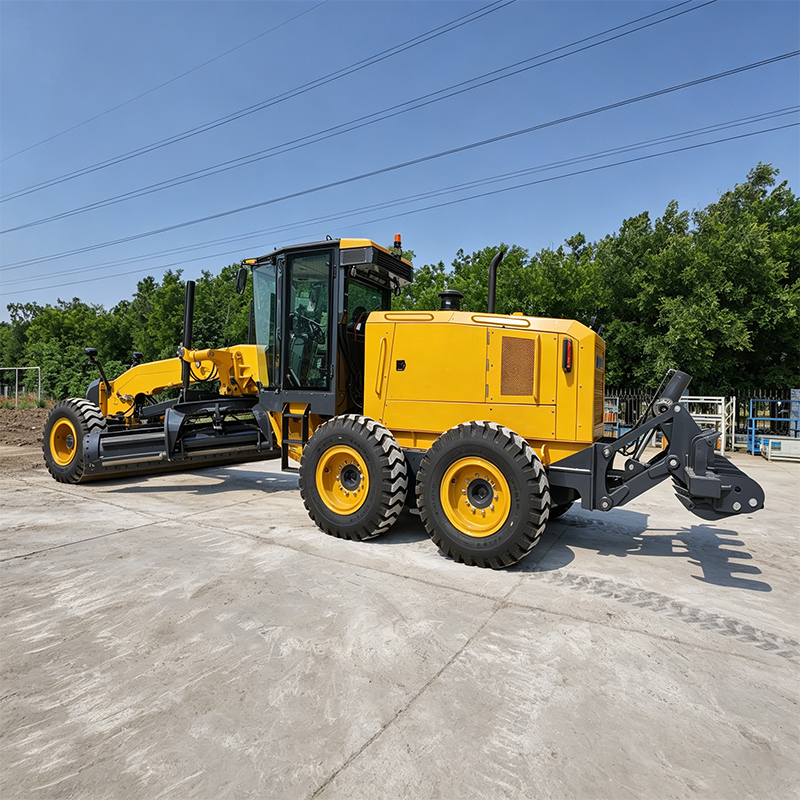

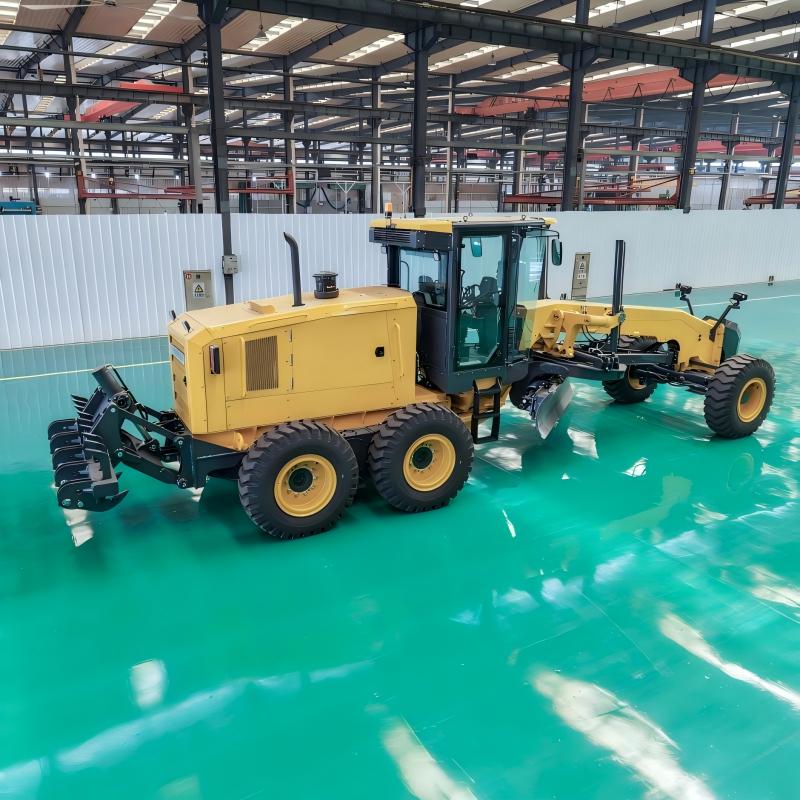

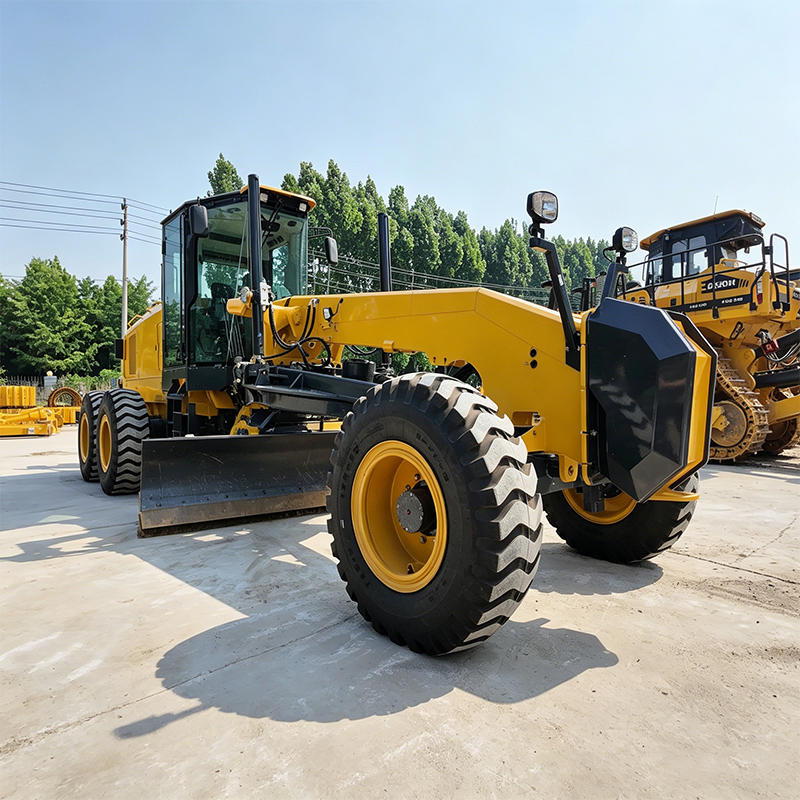

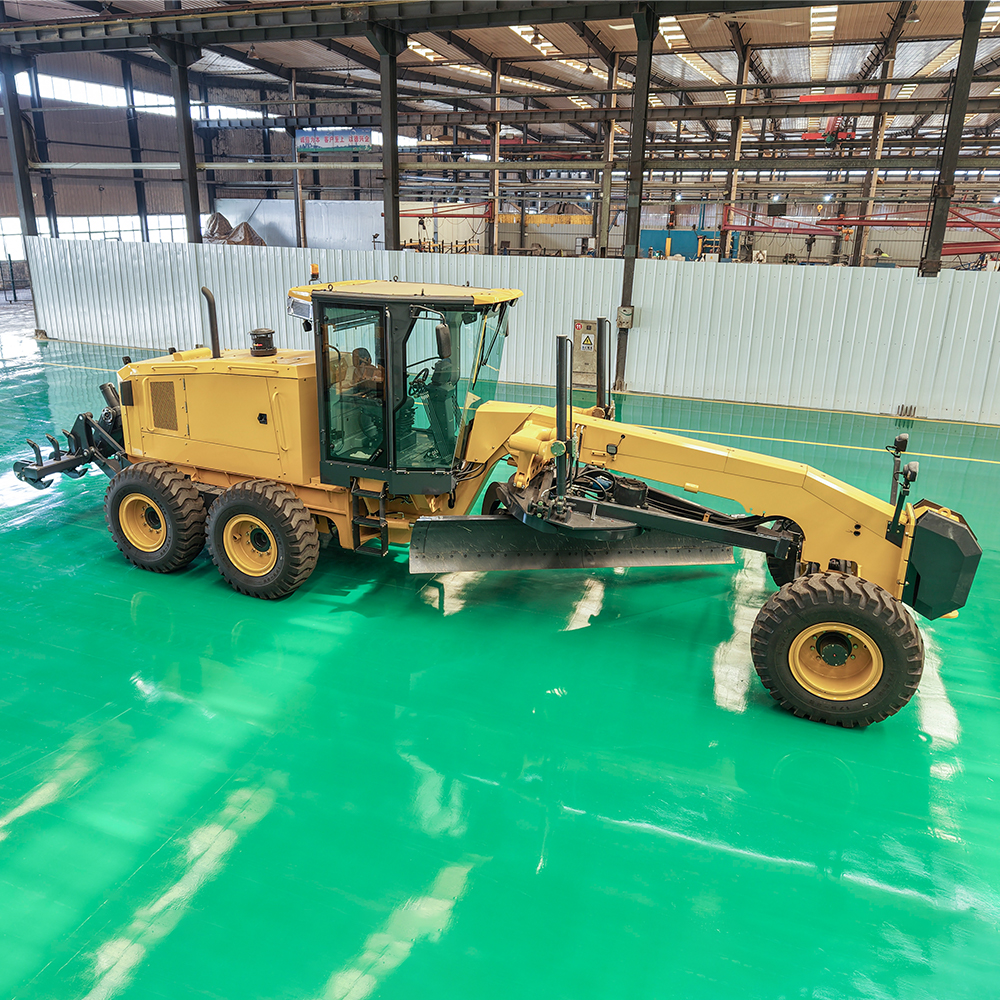

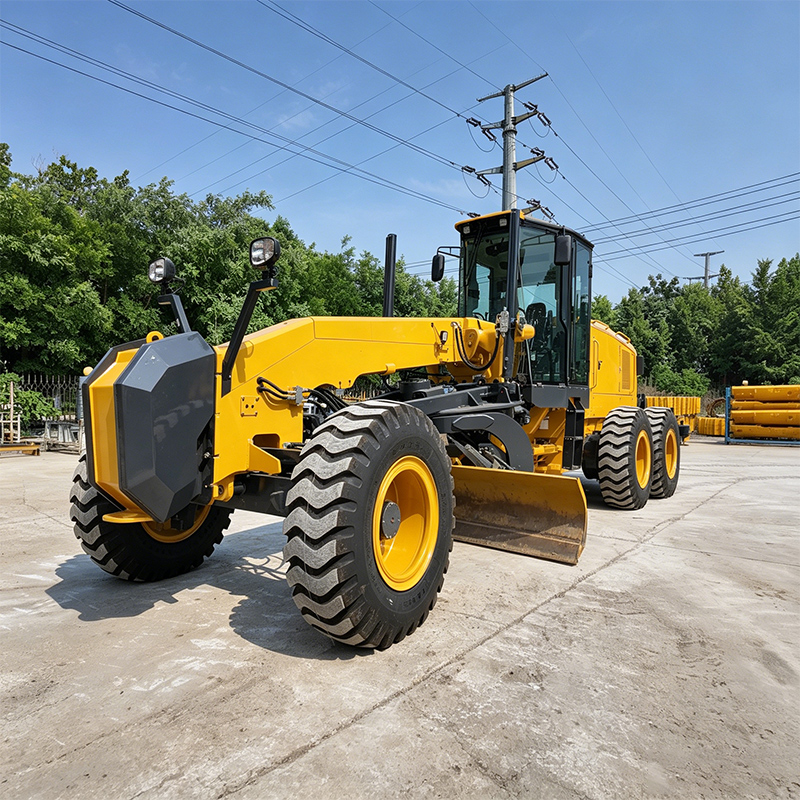

Motor Grader with 17.5-25 Tires, 88kN Max Traction, 360L Fuel Tank, Long Endurance Operation

Motor Grader with 17.5-25 Tires, 88kN Max Traction, 360L Fuel Tank, Long Endurance Operation

USD $76168.00 / Piezas

Pedido mínimo: 1 Piezas

Model:
SRG21
Standard Operating Weight:
16800kg
Weight with Front Blade:
17860kg
Weight with Rear Ripper:
18350kg
Precio de referencia:
USD $76168.00
Cantidad mínima de pedido:
1 Piezas
Enviar consulta

Características y aplicaciones del producto

SRG21 self-propelled motor grader is equipped with Cummins 6CTAA8.3-C215 China Stage 2 engine, with a rated power of 160kW, maximum traction of 88kN, standard operating weight of 16800kg, and total weight of 19000kg with front blade and rear ripper. The equipment adopts a fixed-axis electro-hydraulic control gearbox, single-stage three-element torque converter, matched with a modular planetary reduction rear axle and anti-skid differential, and 17.5-25PR12 tires for excellent trafficability. The full hydraulic control system ensures precise and smooth movement. It can be adapted to multi-scenarios such as road construction, site leveling, subgrade shaping and mining operations, and supports customization of attachments such as front blade and rear ripper. It is widely used in highway, municipal, mining, farmland water conservancy and other engineering fields, and is the core equipment for earthwork leveling operations.

SRG21 self-propelled motor grader is a professional engineering equipment specially designed for road construction, site leveling and earthwork engineering. With four core advantages of Cummins power, electro-hydraulic transmission, full hydraulic control and modular design, it has become the mainstream motor grader model for overseas highway, municipal, mining and farmland water conservancy engineering fields.
The power system is equipped with Cummins 6CTAA8.3-C215 in-line 6-cylinder four-stroke water-cooled direct injection engine, with a displacement of 8.3L, rated power of 160kW@2200rpm, maximum torque of 980N.m@1500rpm, and rated fuel consumption of 223g/kW.h. It has sufficient power, stable fuel consumption and high reliability, meeting the emission requirements of many countries. The transmission system adopts a fixed-axis electro-hydraulic control gearbox, matched with a single-stage single-phase three-element torque converter, with smooth shifting and high power transmission efficiency, which can easily handle heavy-duty operating conditions.
The walking system adopts a modular design. The rear axle is a planetary reduction structure equipped with a "no-Spin" anti-skid differential, which can automatically distribute the power of the left and right wheels to avoid slipping and getting stuck, and is suitable for complex roads such as mud and sand. The front axle supports ±16° swing and ±18° tilt, with 17.5-25PR12 tires, large minimum ground clearance, and trafficability far exceeding that of equipment of the same level. The maximum traction of the whole machine is 88kN, which can easily complete heavy earthwork pushing and subgrade shaping operations.
The control system adopts full hydraulic design, with dual pump oil supply (gear pump 32ml/r + piston pump 75ml/r). The hydraulic pressure of the working device is 18/24MPa, the steering system is 16.5MPa, and the brake system is 10MPa. The action response is fast, the control is precise and smooth, and even novices can get started quickly. The equipment is equipped with a 360L large-capacity fuel tank and 85L hydraulic oil tank, which has strong long-endurance operation capability and reduces frequent refueling shutdown time. The electrical system is equipped with 2×12V 105Ah batteries and 28V 70A alternator, with stable and reliable power supply.

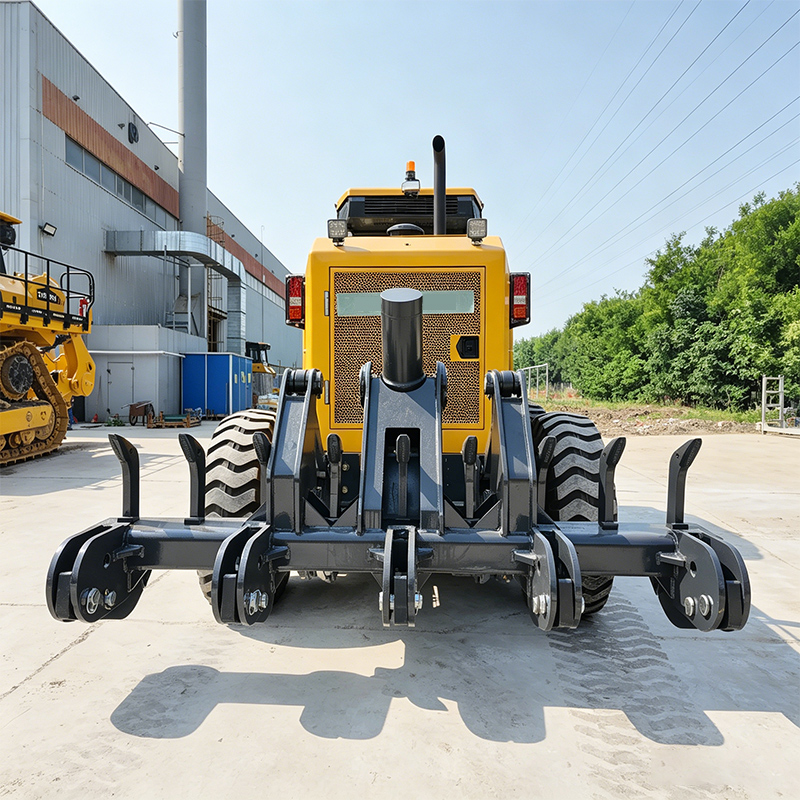

The whole machine has a reasonable structural design and is easy to maintain. The core components are all made of internationally renowned brand accessories, with low failure rate and long service life. Attachments such as front dozer blade and rear ripper can be optionally configured according to customer needs to adapt to different operation scenarios. It is widely used in highway subgrade construction, municipal road maintenance, mine site leveling, farmland water conservancy land consolidation and other projects. It is an ideal professional equipment for earthwork leveling operations, supporting full container export and customized services.
