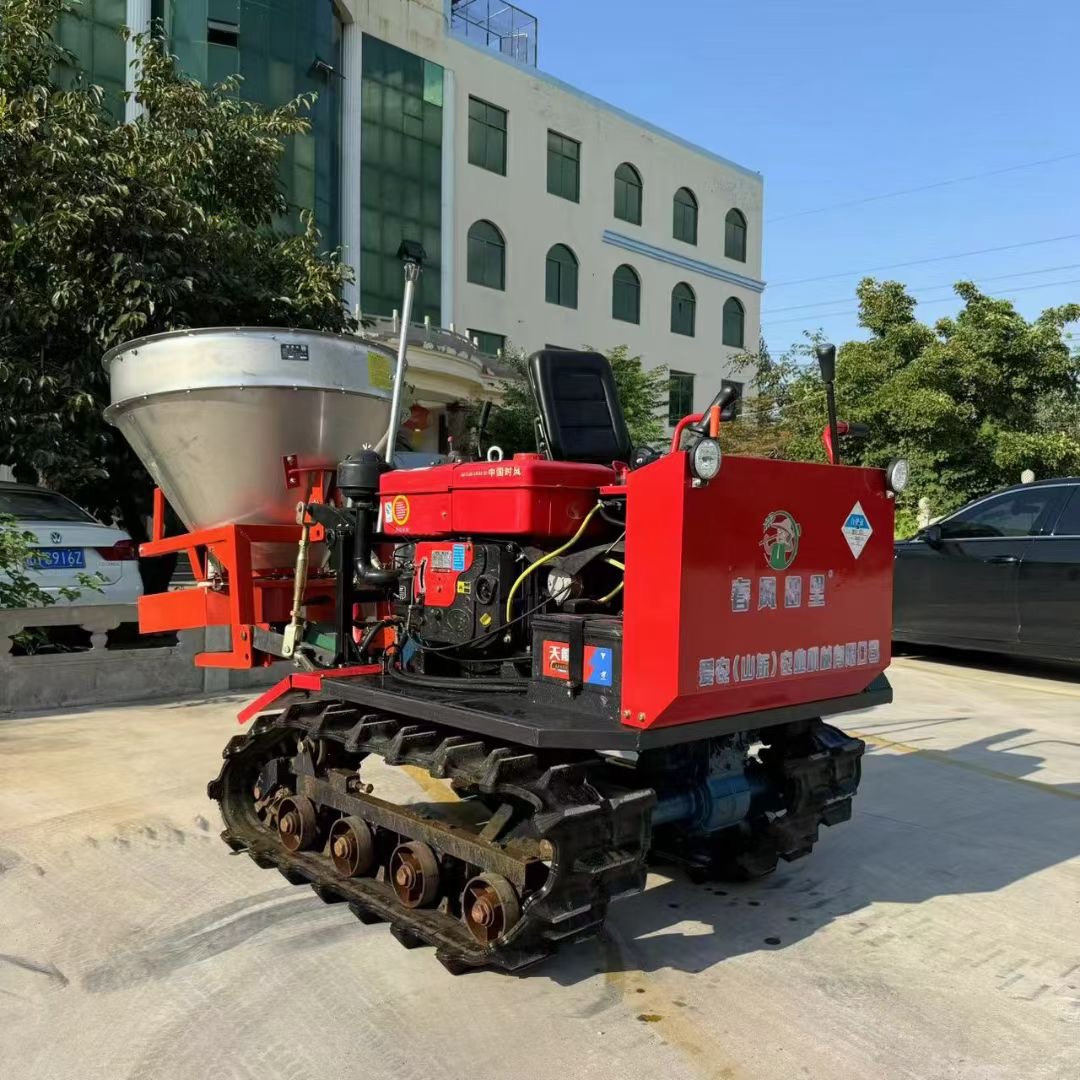

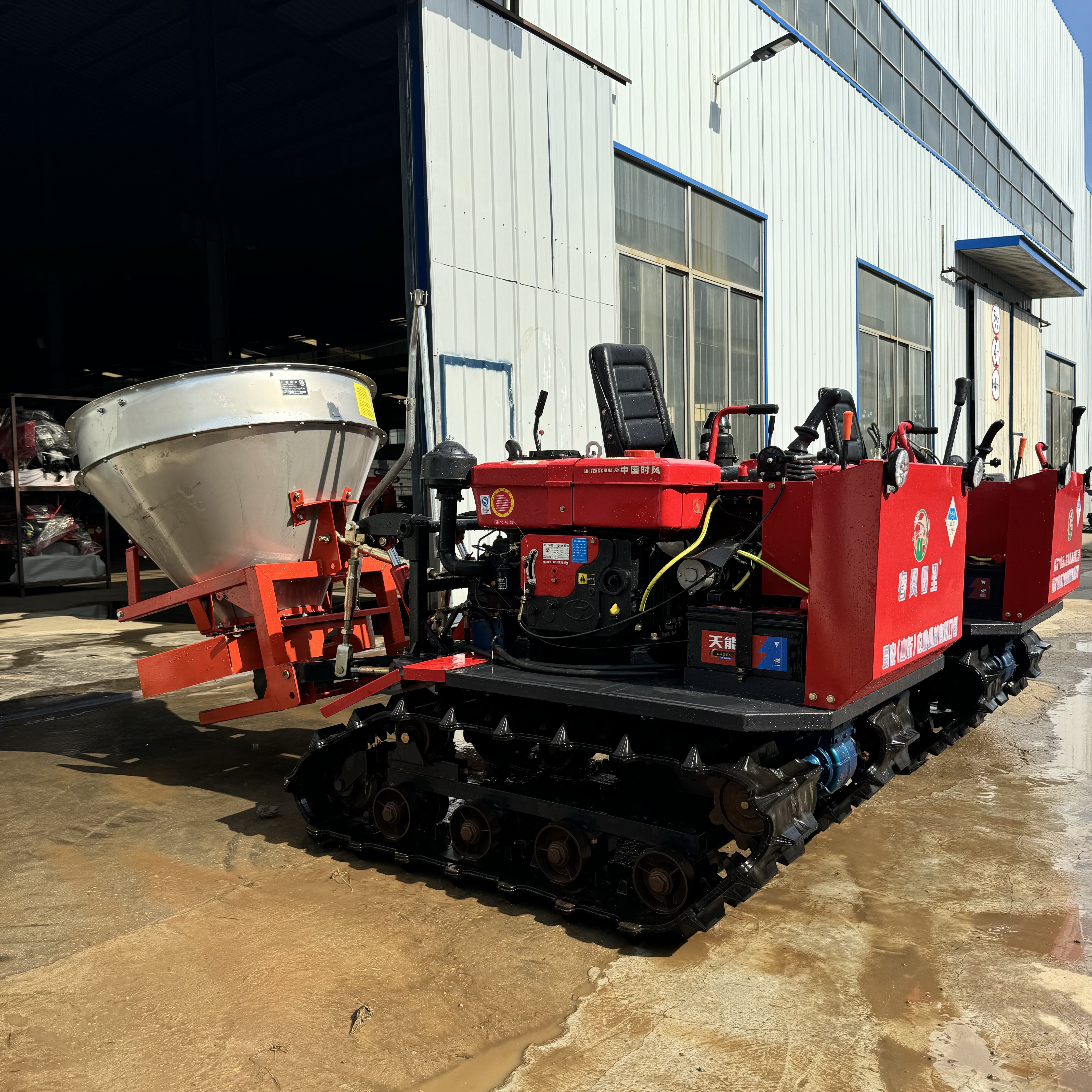

Multi-purpose tracked transport vehicle

Parameter Items	Value
Overall Dimensions	2750×1300×1400mm
Engine Brand	Shifeng / Changchai / Yangma
Power	35-50 HP
Machine Weight	850kg-900kg
Fuel Consumption	2-3 L/mu
Transmission Type	Gear Drive
Track Specification	Width 350mm, 90×38
Gear Shift	CVT operation, 2+R with high/low speed lever, total 4 gears
Travel Speed	10-20km/h
Working Speed	2-5 mu/h
Air Filter	Oil Bath Type
Water Tank	Evaporative Cooled (Do not run dry)
Gearbox	Custom Full Gear Transmission
Engine Speed	2200-2400rpm
Standard Attachments	1.2m Rotary Tiller

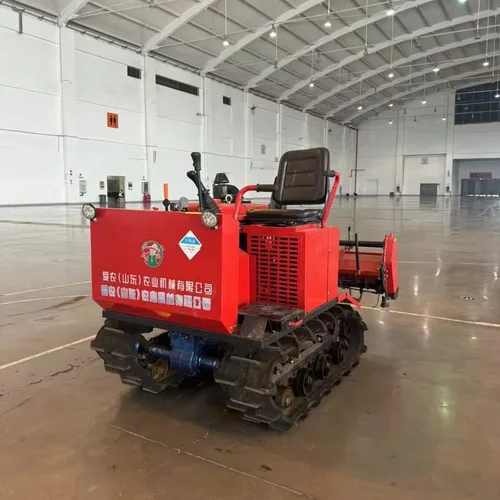

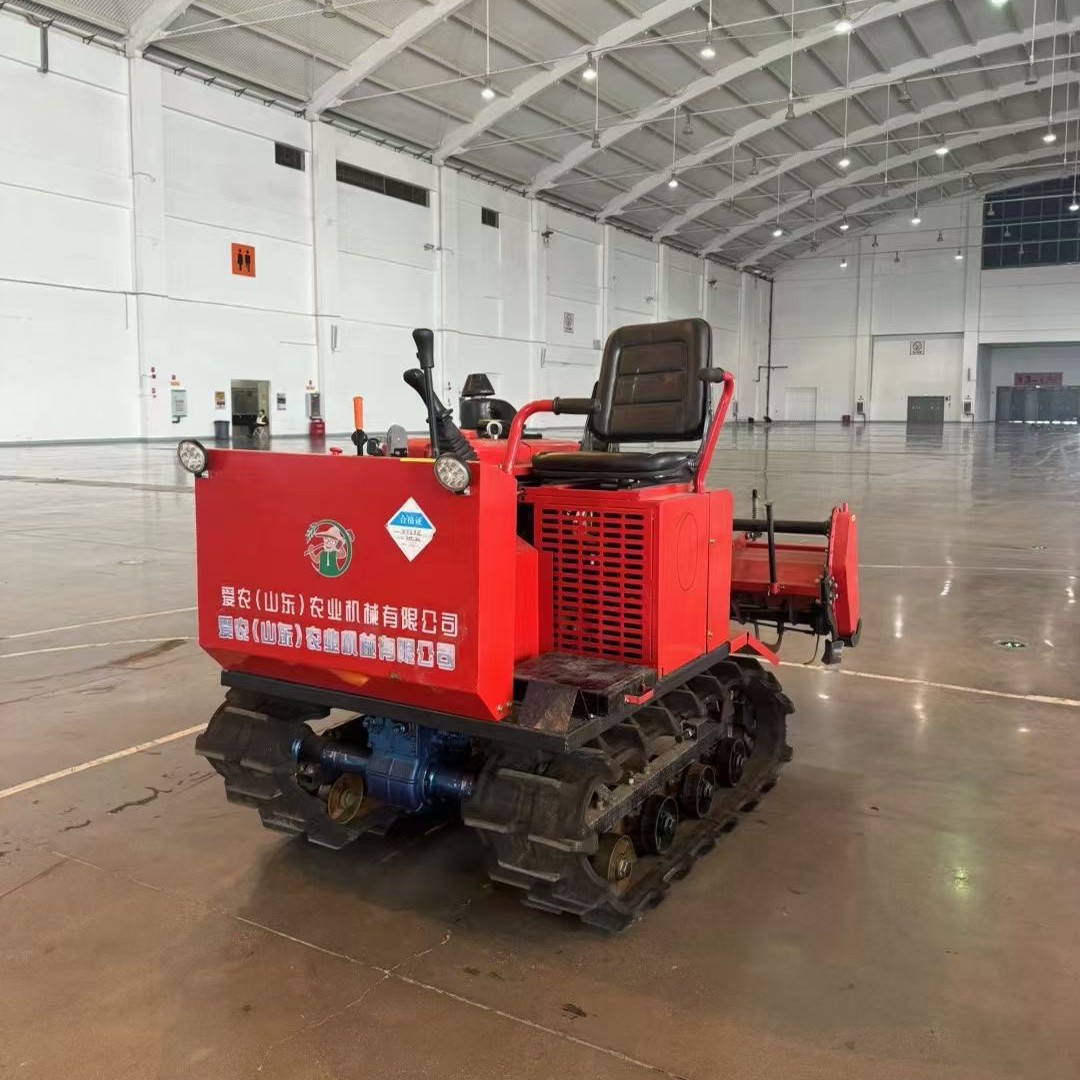

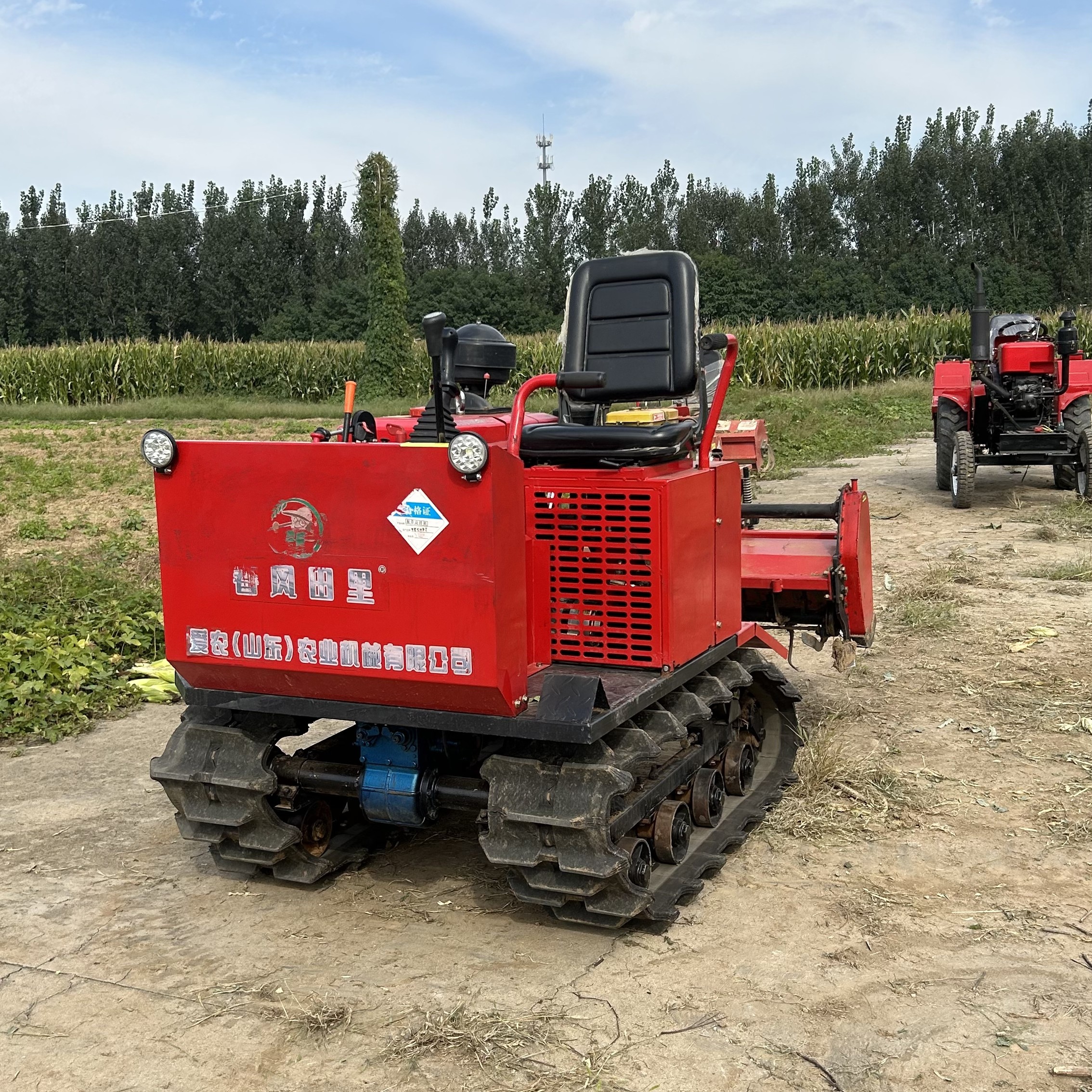

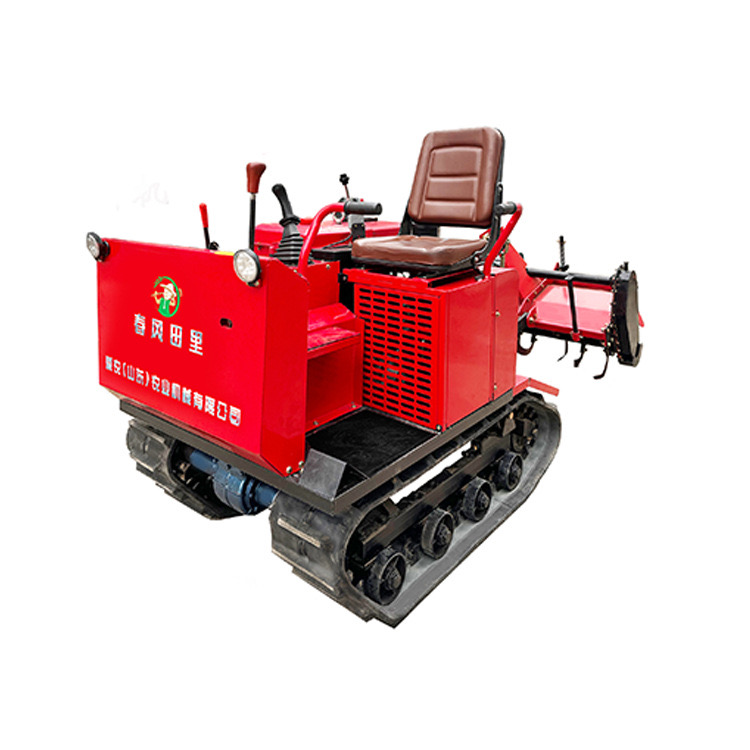

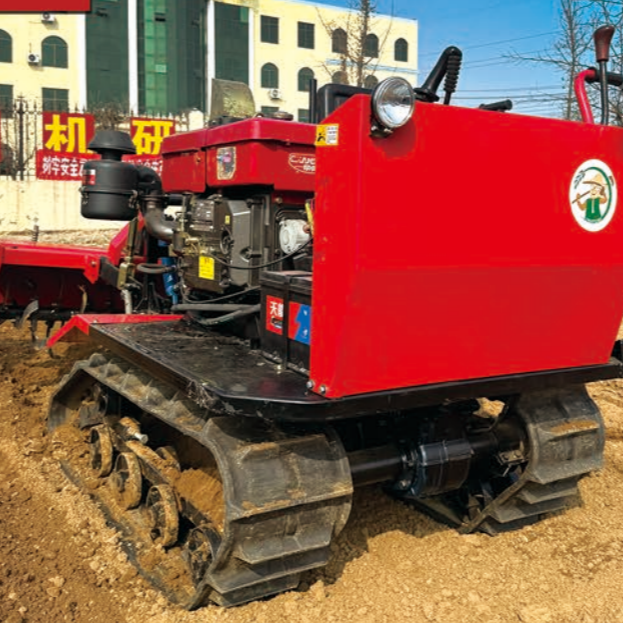

Product Introduction: Ride-On Tracked Micro Tiller
I. Basic Product Specifications
This ride-on, three-point hitch tracked micro tiller is manufactured in Shandong. It features a driver's seat, a tracked undercarriage, diesel power, and a three-point hitch for rear-mounted implements. It comes equipped with a rear rotary tiller:
Power: Single-cylinder diesel engine, available in air-cooled or water-cooled versions, offering ample power and low fuel consumption, ensuring sufficient power for mountainous and field operations;
Traction: Wide rubber tracks provide a large contact area, preventing slippage and sinking;
Structure: Three-point hitch interface allows for quick-release attachment and removal of implements, saving time on part changes; the seated driving position eliminates the need for manual pushing while bending over.

II. Suitable Land Scenarios
✅ Suitable Land Types
Various orchards (primary focus): Peach, apple, citrus, cherry, and other orchards; narrow-row orchards where large tractors cannot access the rows; mountainous and hilly terrain (slopes ≤25°, terraced fields), with tracks that climb slopes without slipping;
Greenhouses and small vegetable plots: Fruit and vegetable greenhouses, scattered vegetable gardens, and small courtyard plots; compact design allows for agile turning and maneuvering inside greenhouses;
Muddy and damp areas: Clay soil after rain, riverbanks, and shallowly waterlogged fields; wheeled machinery is prone to getting stuck, while the tracks allow for normal operation;
Nurseries, landscaping, and land reclamation: Soil preparation for tree nurseries and flower beds, clearing of wasteland, and slope grading.
❌ Not suitable for: Deep water, muddy, or flooded fields, or large contiguous open fields.
III. Applicable Tasks (Multi-purpose machine; achieved by changing attachments)
Standard Configuration: Rear Rotary Tiller

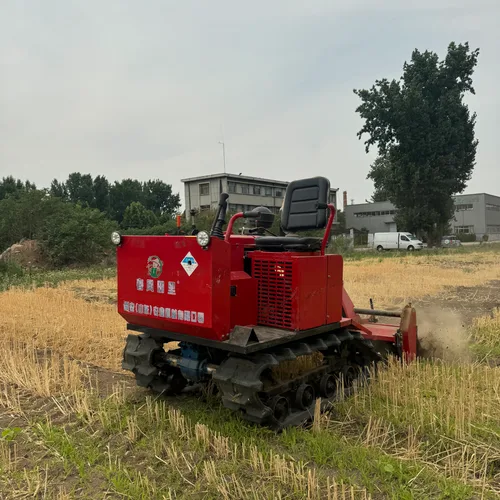

Inter-row tilling for loosening and breaking up soil, breaking up soil crusts, and preparing orchard and vegetable plots.
Optional Attachments (3-point hitch with quick-release system)
Trenching Attachment: Digging trenches for orchard fertilization and vegetable plot drainage, depth 20–40 cm;
Weed Cutter: Shredding weeds and straw for soil incorporation, inter-row weeding in orchards;
Ridging Machine: For ridging in sweet potato, chili, and melon/fruit cultivation;
Backfilling and Vine Burying Machine: For backfilling trenches and winter root burial to protect grapevines from cold;
Front-Mounted Dozer Blade: For leveling orchards, clearing ditches and building up soil, and snow plowing in winter;
Optional Sprayers, Branch Shredders, and Trailers: For spraying fruit trees, shredding branches for soil amendment, and short-distance transport of fertilizers and produce.

IV. Core Product Advantages
Ride-on operation: Operate while seated, saving energy compared to walk-behind tillers and reducing fatigue during prolonged work;
Excellent track traction: Smooth passage over steep slopes, muddy terrain, and narrow paths; low ground pressure minimizes damage to fruit tree root systems;
Three-point hitch: Easy attachment and removal of implements; a single operator can quickly switch between different attachments;
Compact Design: Maneuvers easily in tight spaces such as orchards and greenhouses, with convenient turning at field edges;
Direct from Manufacturer: Supplied directly from the factory, with a full range of spare parts and convenient after-sales service.
