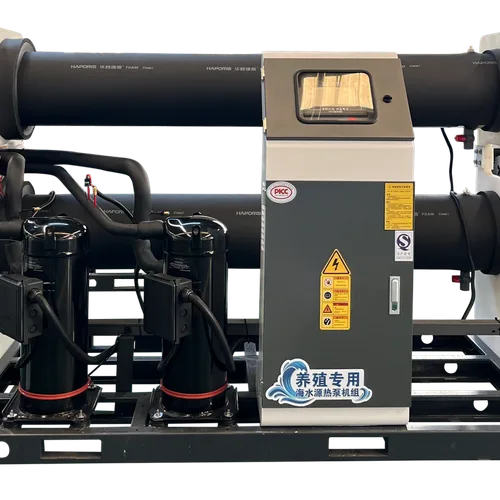

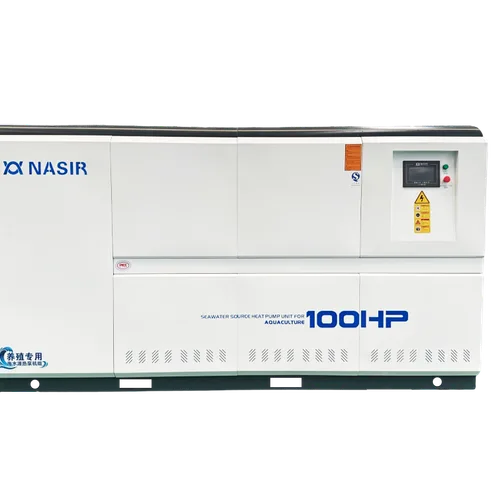

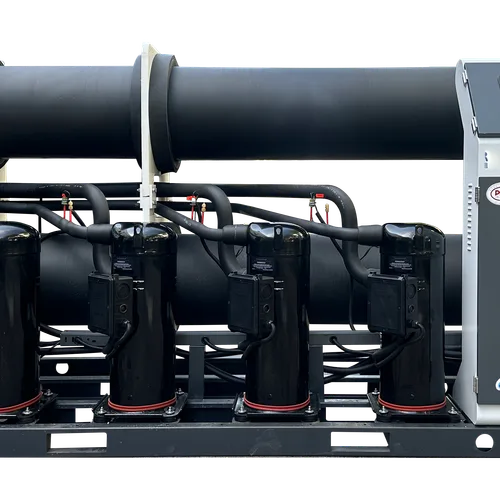

NXHR Series Seawater Source Heat Pump Unit for Aquaculture

NXHR series seawater source heat pump extracts heat from seawater, providing both heating in winter and cooling in summer for aquaculture ponds, delivering constant water temperature for industrial farming systems with low energy consumption and zero pollution.
$13562.00
Enviar mensaje Contactar proveedor

Shandong Naxin New Energy Co., Ltd.

Main Products: Aquaculture Equipment
Ver proveedor
Year Established Established in 2017
Main Products Aquaculture Equipment
Employees 101-500 People
Factory Area 10,000-50,000 m²
Annual Revenue Above US$50 Million
Main Markets North America / Europe / Southeast Asia / South Asia
Detalles
Especificaciones

Unit Advantages

  • High Efficiency & Energy Saving: Utilizes seawater heat with low operating cost and high COP.
  • Safe & Reliable: Multi-protection design for stable operation and low failure rate.
  • Durable: Titanium alloy heat exchanger resistant to seawater corrosion for long service life.
  • Modular Design: Flexible combination for wide applications and easy expansion.
  • Smart Cloud Control: Supports remote monitoring and centralized management with high automation.
  • Self-Adjusting Temperature: Flexible outlet water temperature adjustment for different aquaculture needs.
  • Touchscreen Control: Intuitive interface for simple and smart operation.
  • High Water Temperature: Max outlet temperature up to 85℃ for versatile scenarios.
  • Wide Temperature Range: Ultra-wide hot/cold water range to meet various working conditions.
  • Enhanced Heat Transfer: Shell-and-tube continuous spiral baffle + C&S heat exchanger for improved efficiency.
  • Precise Control: Electronic expansion valve for precise throttling and temperature control.
  • Flexible Installation: Compact design saves floor space with strong adaptability.
  • Eco-Friendly: No groundwater consumption or pollutant emissions.

Applications

Ideal for industrial aquaculture, seawater pond temperature control, circulation/ direct heating systems, water insulation and coil heat exchange. Temperature control accuracy reaches ±0.1℃, effectively reducing heat loss.
Power Range
18.7~153.2kW
Water Temp Rise
5℃
Water Flow Rate
15~130 m³/h
Model
NXR-80~800HS / Single/Double Titanium Unit
Temp Control Accuracy
±0.1℃
Max Outlet Temp
85℃
Heat Exchanger Type
Shell-and-tube continuous spiral baffle + C&S heat exchanger
Throttling Method
Electronic expansion valve
Control Method
Touchscreen control + smart cloud control system
Applications
Circulation heating /direct heating /aquaculture water insulation /pond coil heat exchange
  • NXHR Series Seawater Source Heat Pump Unit for Aquaculture
  • NXHR Series Seawater Source Heat Pump Unit for Aquaculture
  • NXHR Series Seawater Source Heat Pump Unit for Aquaculture

Descripción

Unit Advantages

  • High Efficiency & Energy Saving: Utilizes seawater heat with low operating cost and high COP.
  • Safe & Reliable: Multi-protection design for stable operation and low failure rate.
  • Durable: Titanium alloy heat exchanger resistant to seawater corrosion for long service life.
  • Modular Design: Flexible combination for wide applications and easy expansion.
  • Smart Cloud Control: Supports remote monitoring and centralized management with high automation.
  • Self-Adjusting Temperature: Flexible outlet water temperature adjustment for different aquaculture needs.
  • Touchscreen Control: Intuitive interface for simple and smart operation.
  • High Water Temperature: Max outlet temperature up to 85℃ for versatile scenarios.
  • Wide Temperature Range: Ultra-wide hot/cold water range to meet various working conditions.
  • Enhanced Heat Transfer: Shell-and-tube continuous spiral baffle + C&S heat exchanger for improved efficiency.
  • Precise Control: Electronic expansion valve for precise throttling and temperature control.
  • Flexible Installation: Compact design saves floor space with strong adaptability.
  • Eco-Friendly: No groundwater consumption or pollutant emissions.

Applications

Ideal for industrial aquaculture, seawater pond temperature control, circulation/ direct heating systems, water insulation and coil heat exchange. Temperature control accuracy reaches ±0.1℃, effectively reducing heat loss.
