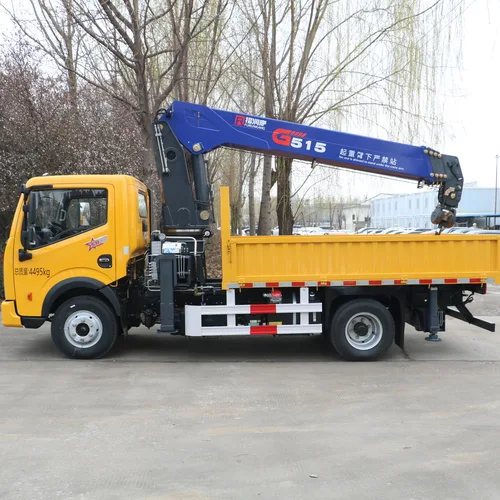

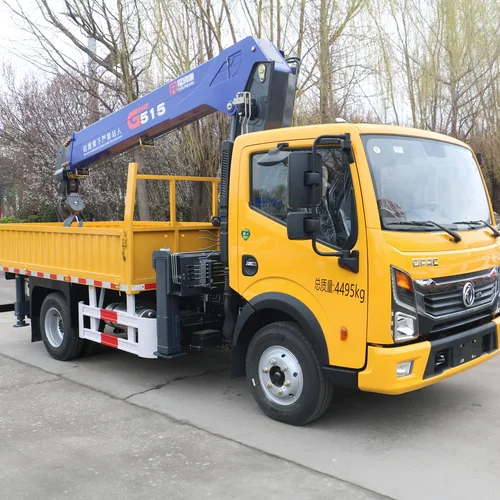

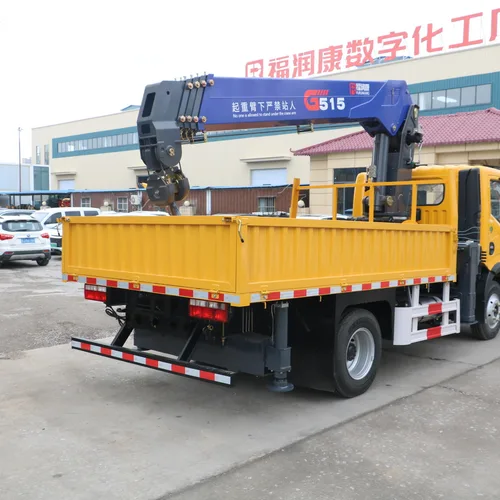

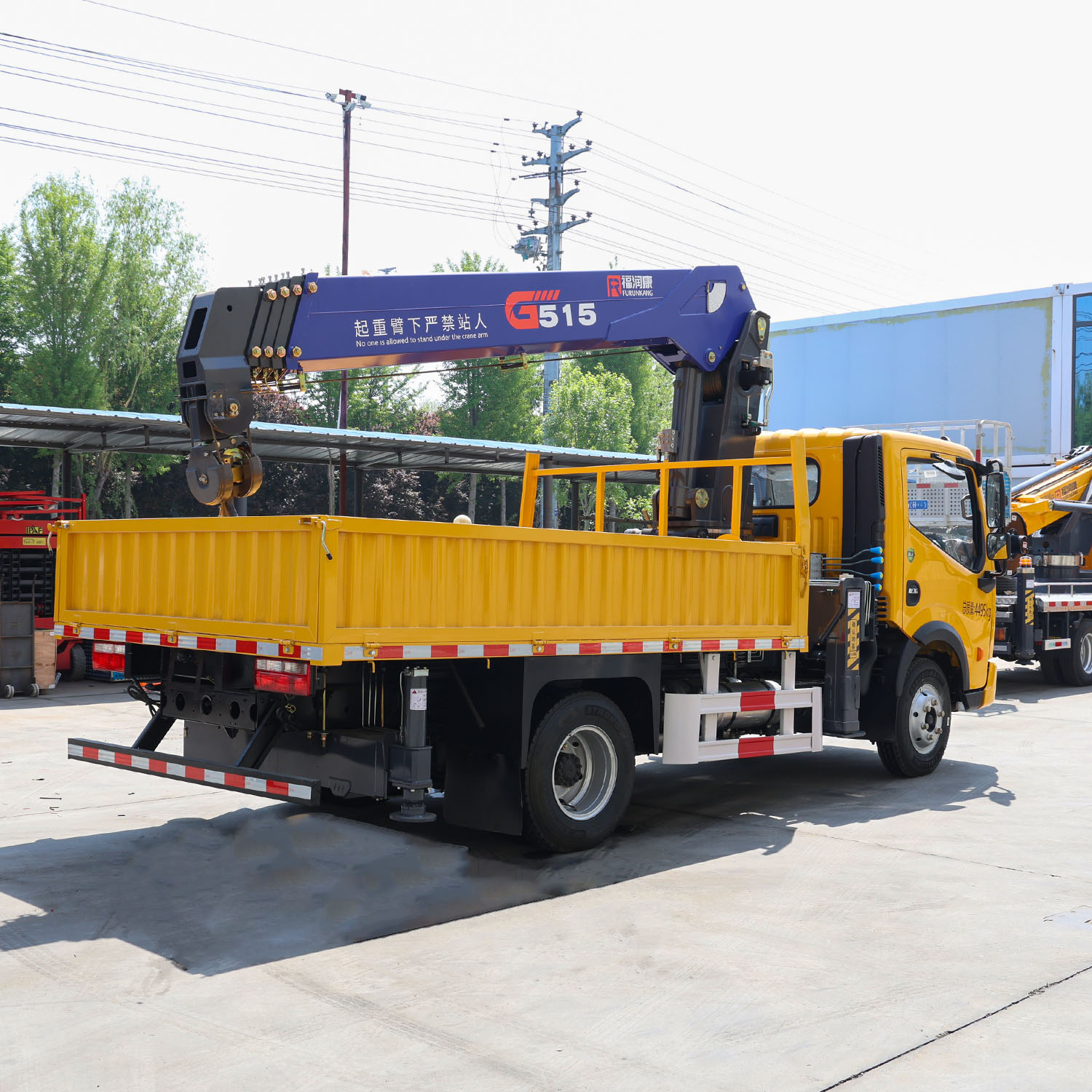

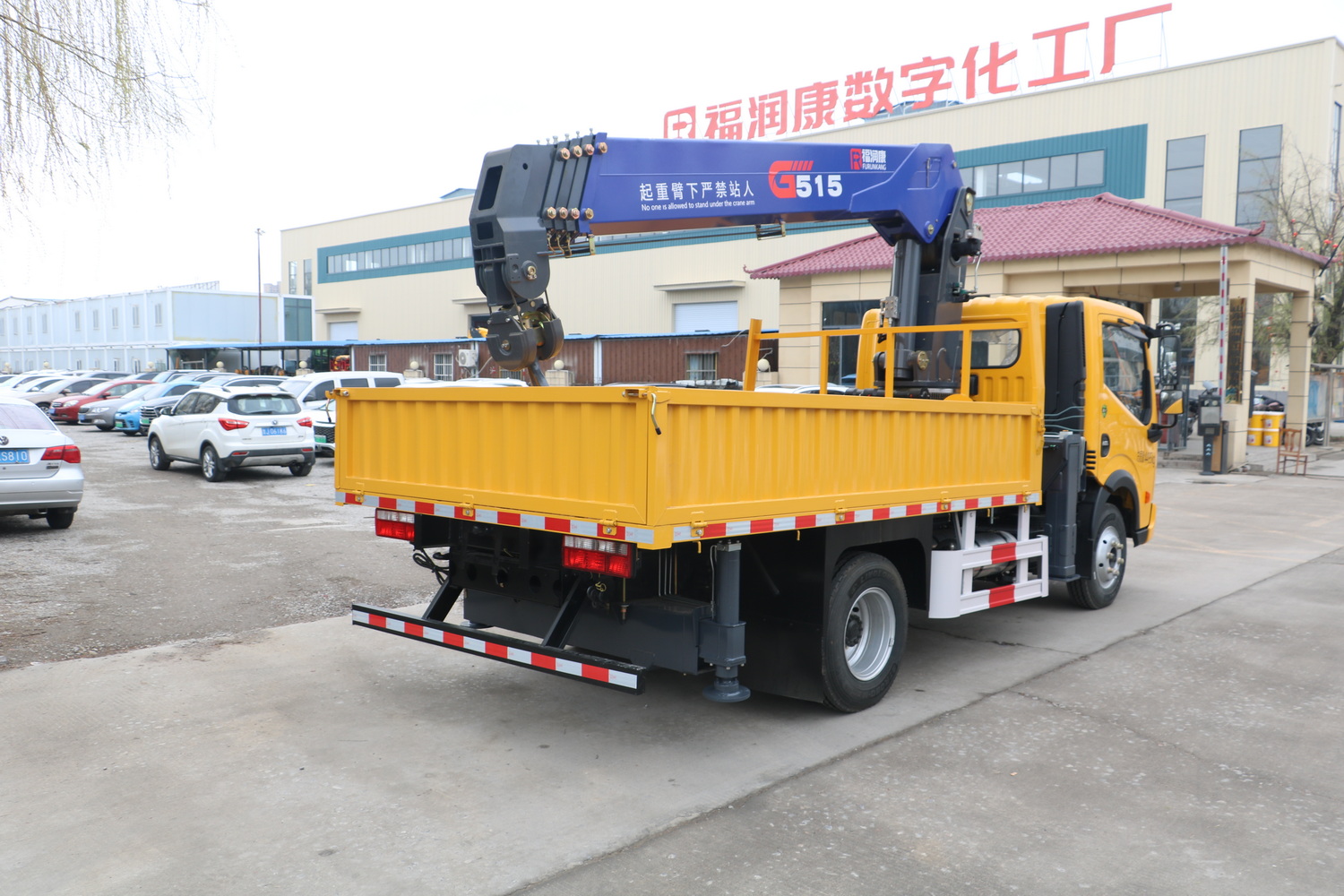

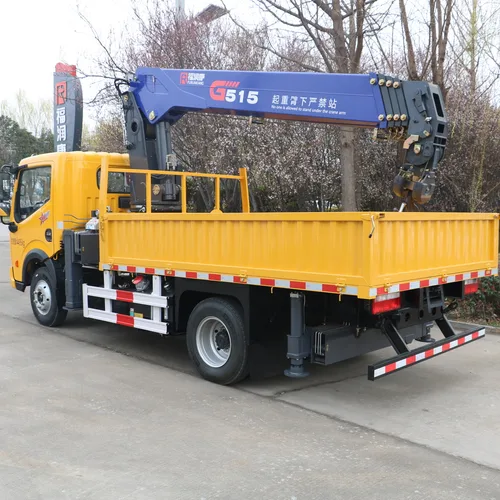

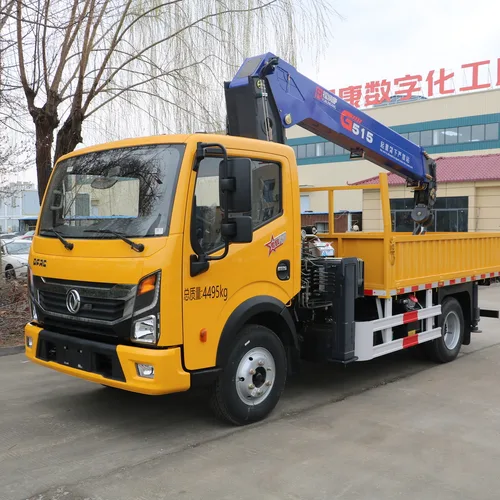

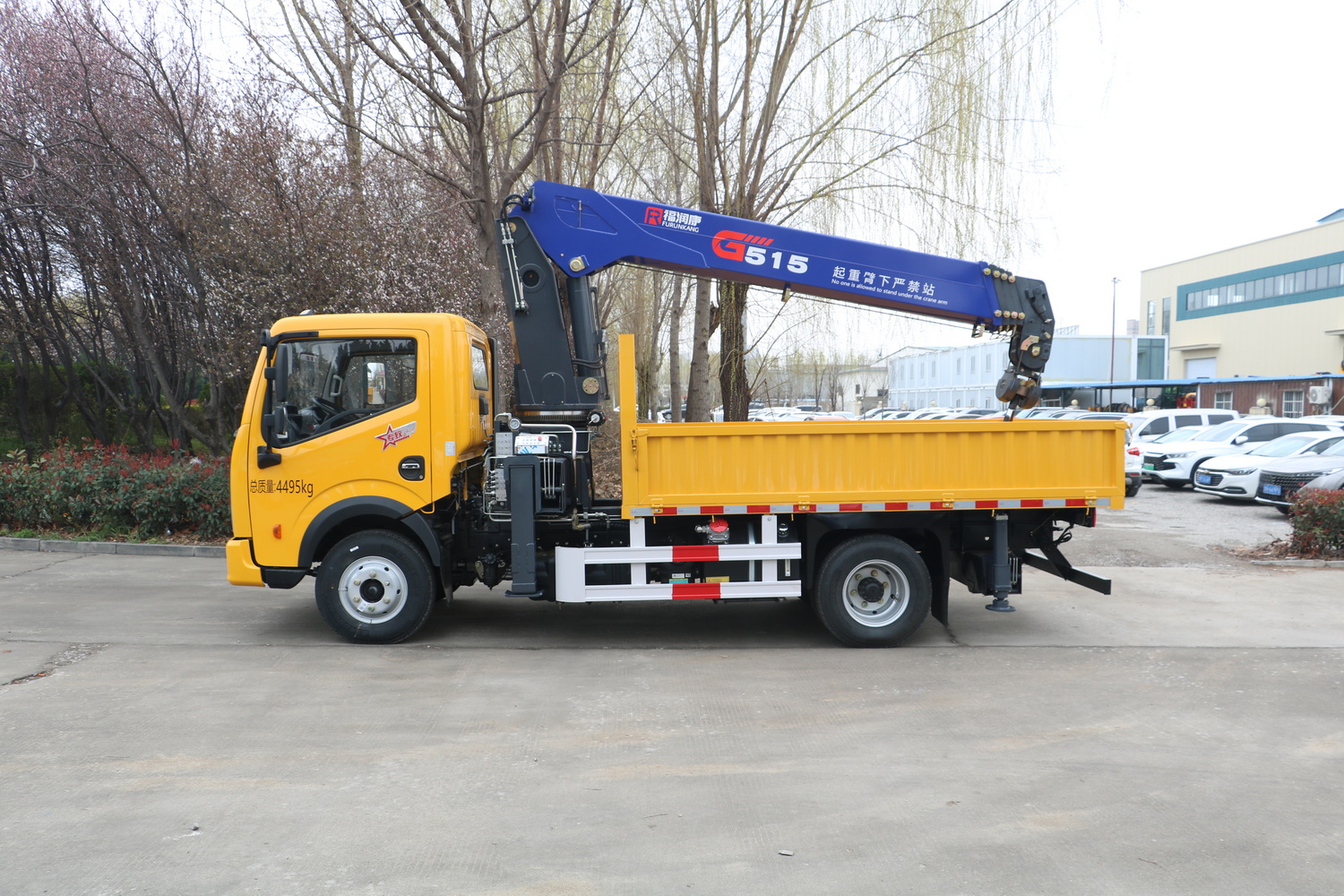

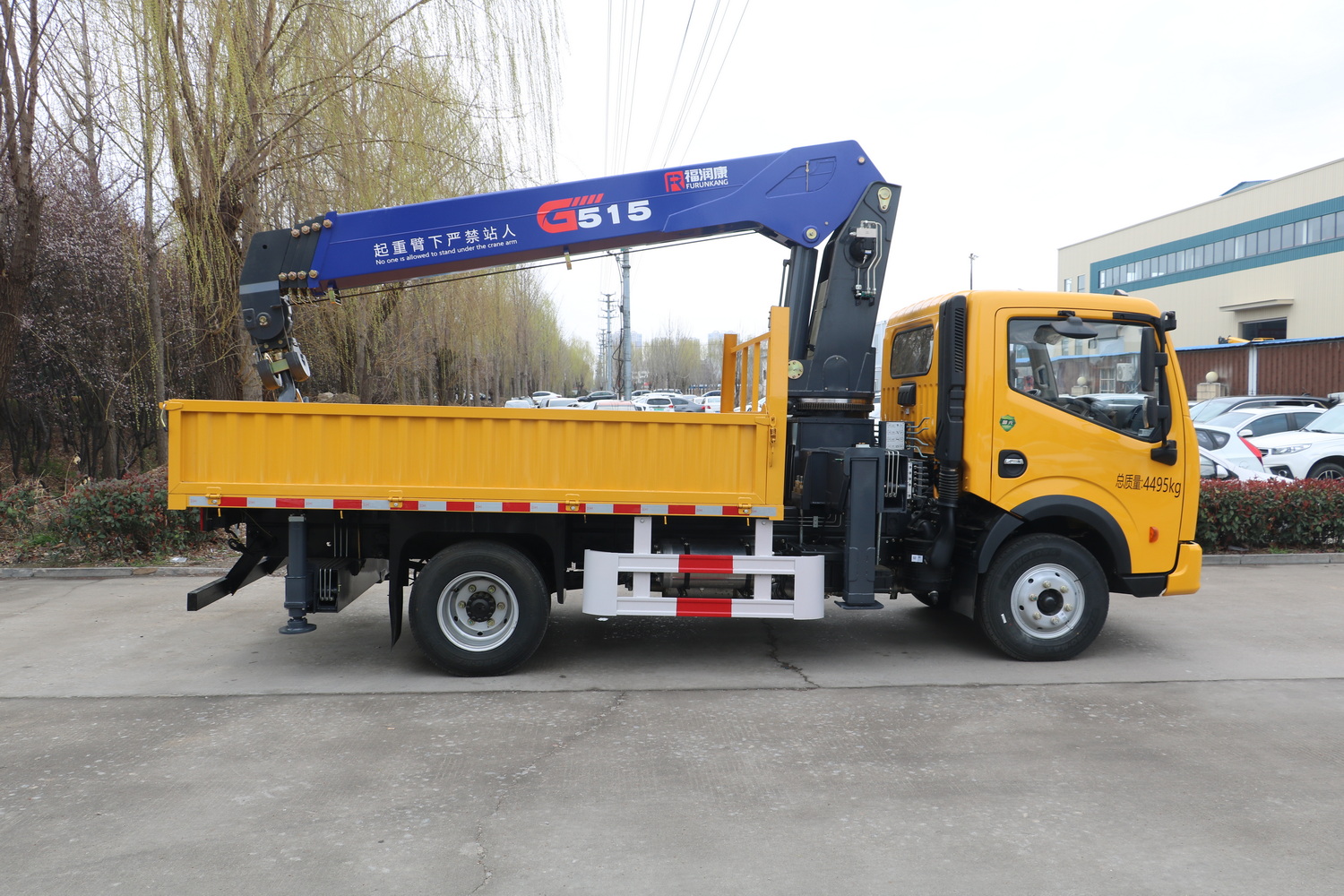

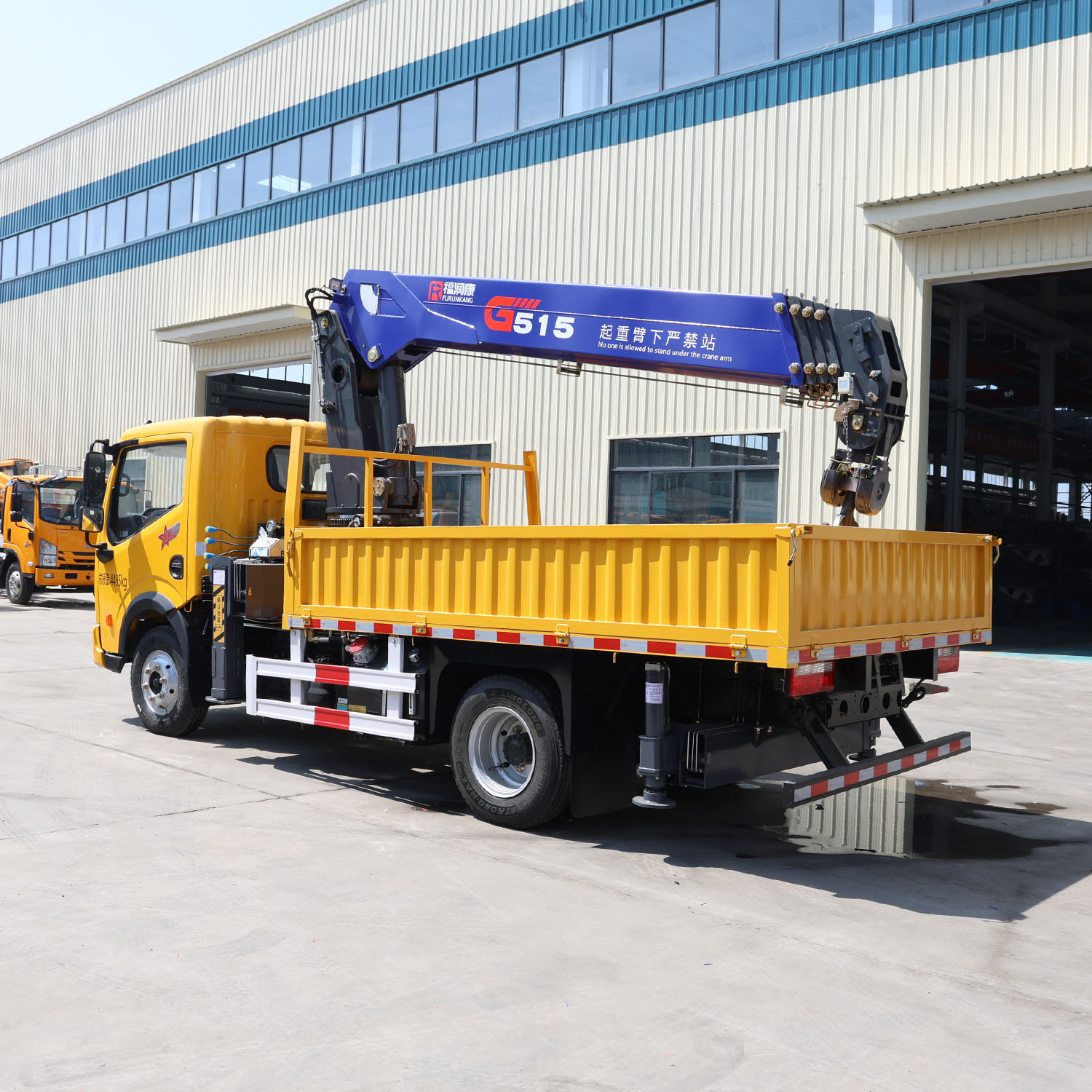

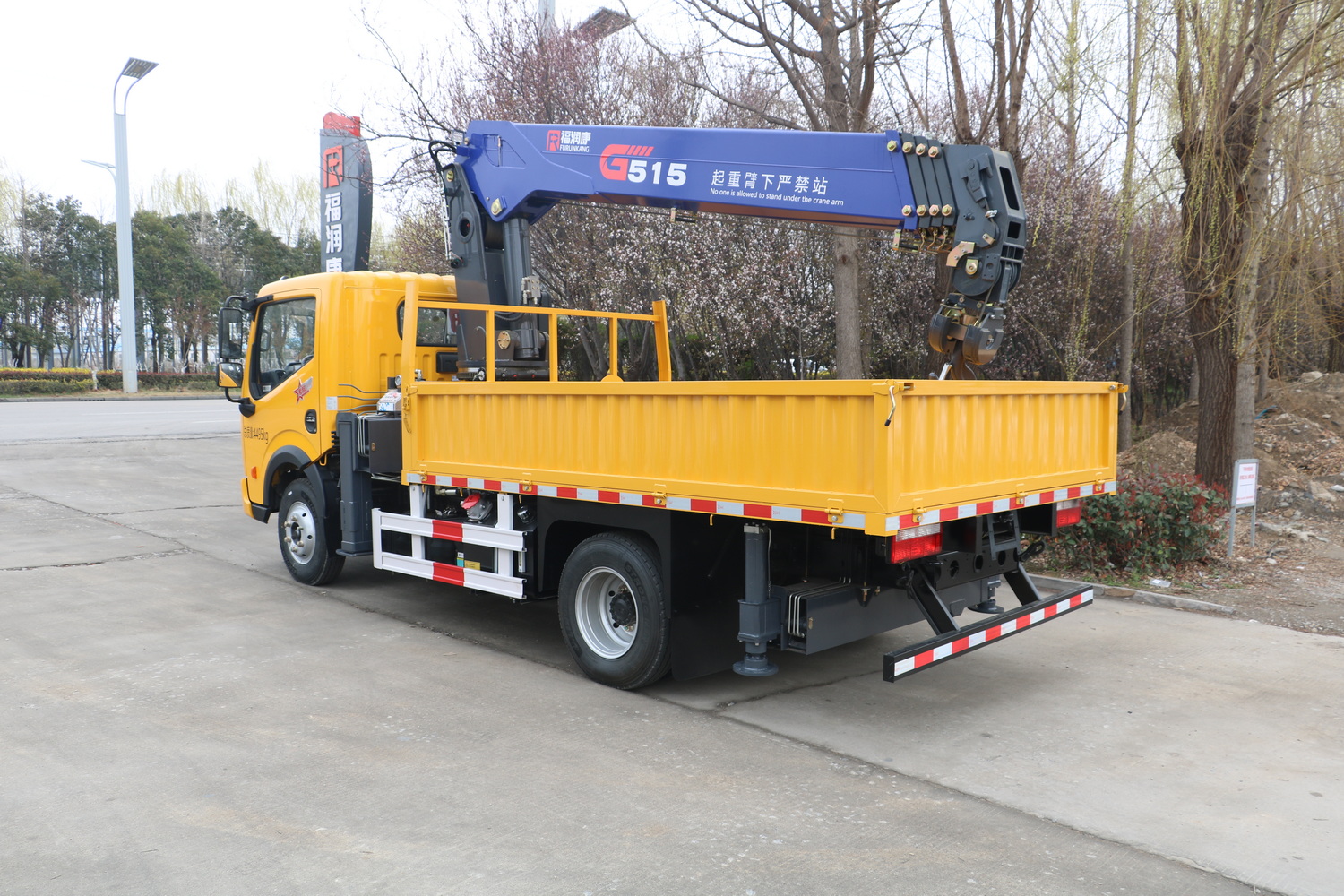

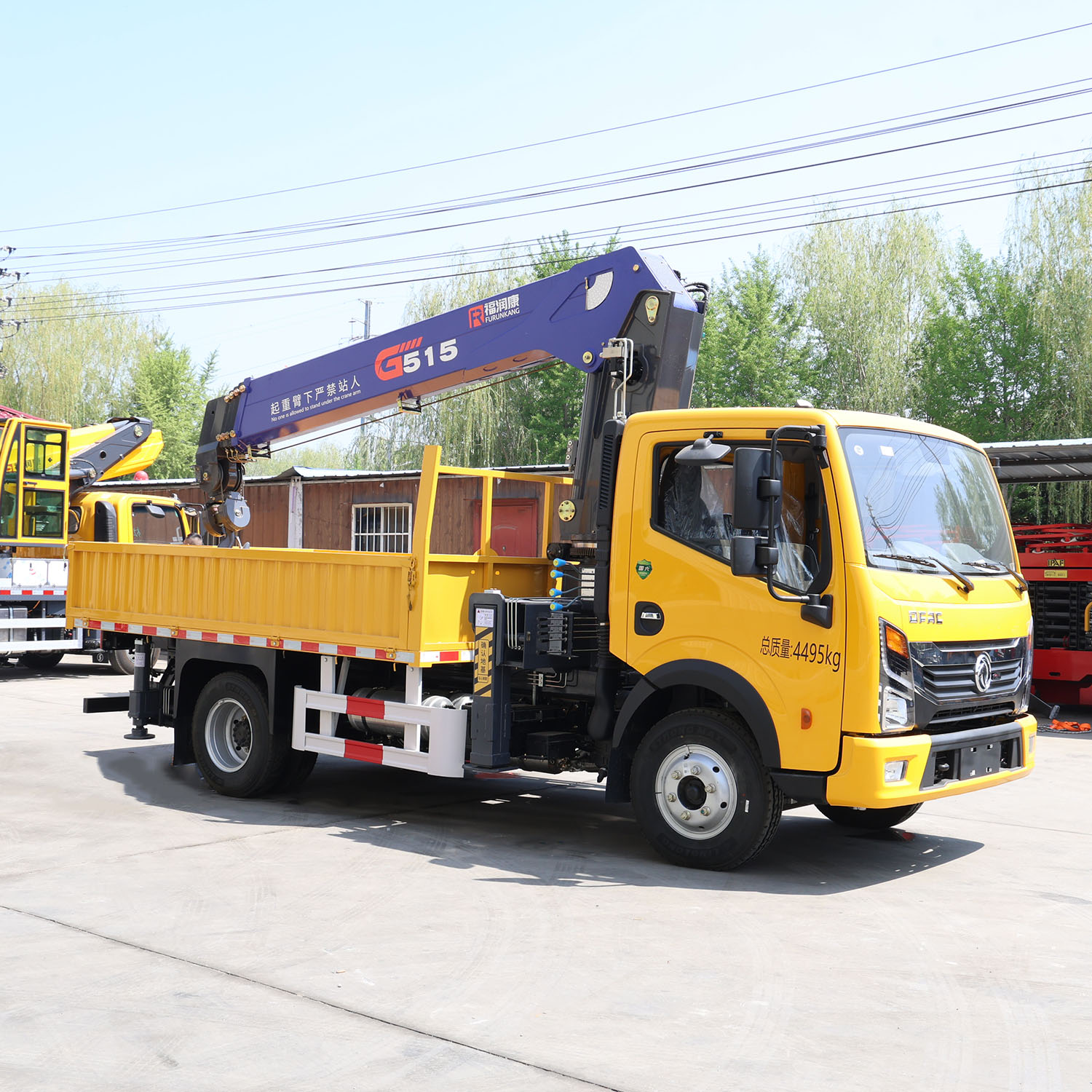

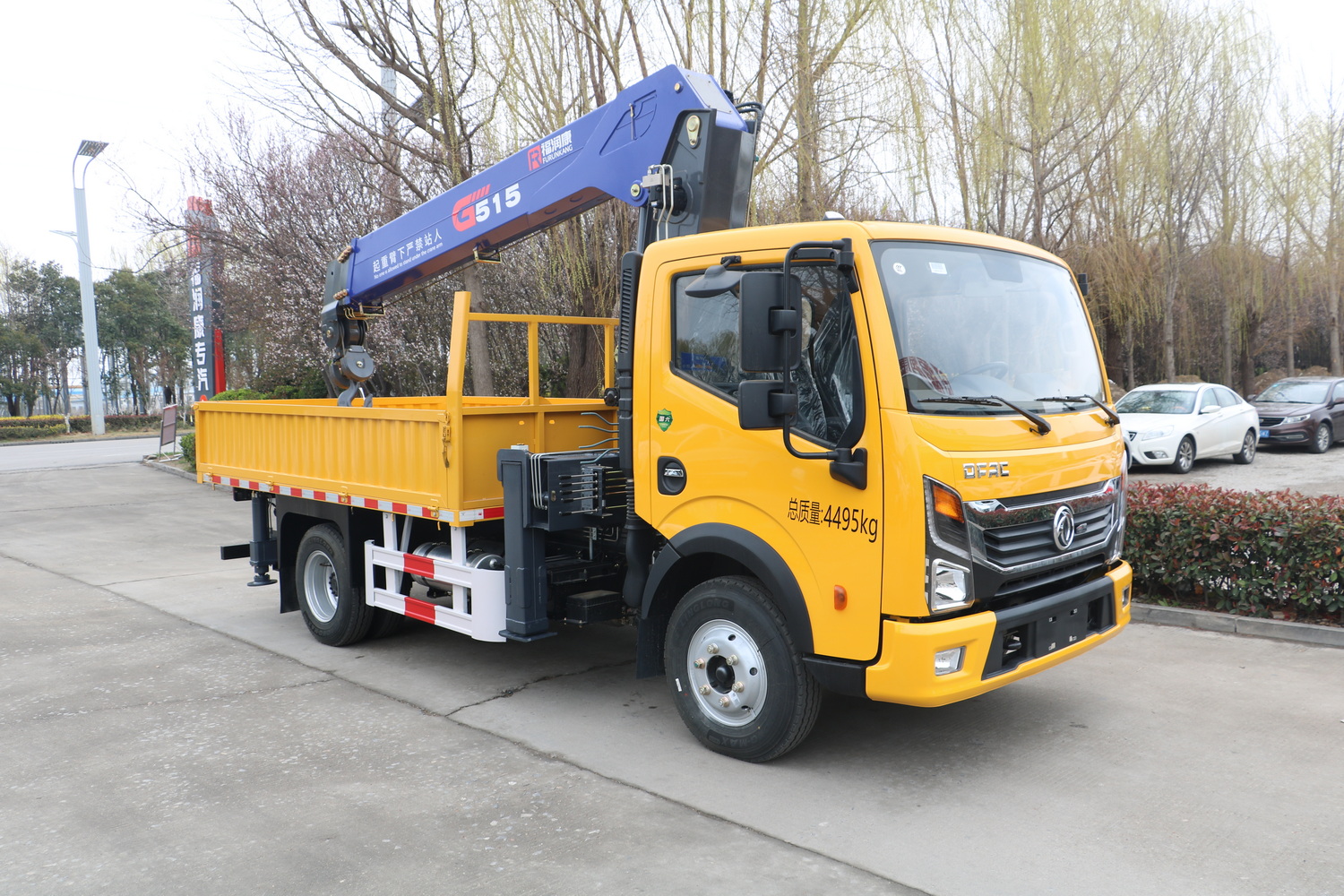

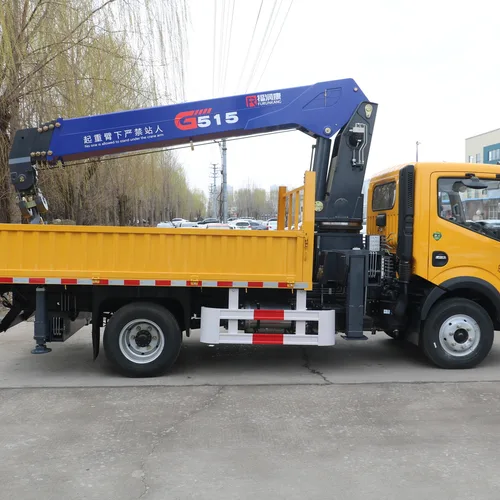

Small 5 Ton Hydraulic Straight Arm Telescopic Crane 16.5m Max Lifting Height High Efficiency Truck Mounted

Small 5 Ton Hydraulic Straight Arm Telescopic Crane 16.5m Max Lifting Height High Efficiency Truck Mounted

USD $22000.00 - $26000.00 / Piezas

Pedido mínimo: 1 Piezas

Términos comerciales admitidos:
FOBCIF
Precio de referencia:
USD $22000.00 - $26000.00
Cantidad mínima de pedido:
1 Piezas
Plazo de entrega:
30days
Puerto de envío:
青岛
Enviar consulta

Características y aplicaciones del producto

The Type 515 5-ton truck-mounted crane is Baoliwei's latest product. We innovatively use a hydraulically driven boom extension structure, allowing this crane to extend its boom under load-something ordinary wire-hauled cranes cannot do. We also offer a variety of chassis options, and the boom length can be customized to your needs.


The Type 515 5-ton truck-mounted crane is Baoliwei's latest product. We innovatively use a hydraulically driven boom extension structure, allowing this crane to extend its boom under load-something ordinary wire-hauled cranes cannot do. We also offer a variety of chassis options, and the boom length can be customized to your needs.

Product Description

Vehicle Model   Dongfeng Dolica D6 + Furunkang 5-ton G515
Gross Vehicle Weight   4495 kg
Curb Weight   4300 kg
Engine   YN25PLUS160B Yunnei 160 hp
Transmission   Changtai 8-speed transmission
Wheelbase   3308 mm
Overall Dimensions   5990 × 2200 × 3185 mm
Cargo Box Dimensions   3300 × 2200 × 550 mm


Frame   192 double-layer frame
Front / Rear Axles   2T / 6T
Tires   7.00R16LT steel radial tires
Brakes   Air brakes
Cab   Nebula extra-wide cab
Central Locking   Yes
Power Windows   Yes
Air Conditioning   Yes
Upper Structure Model   Furunkang G515

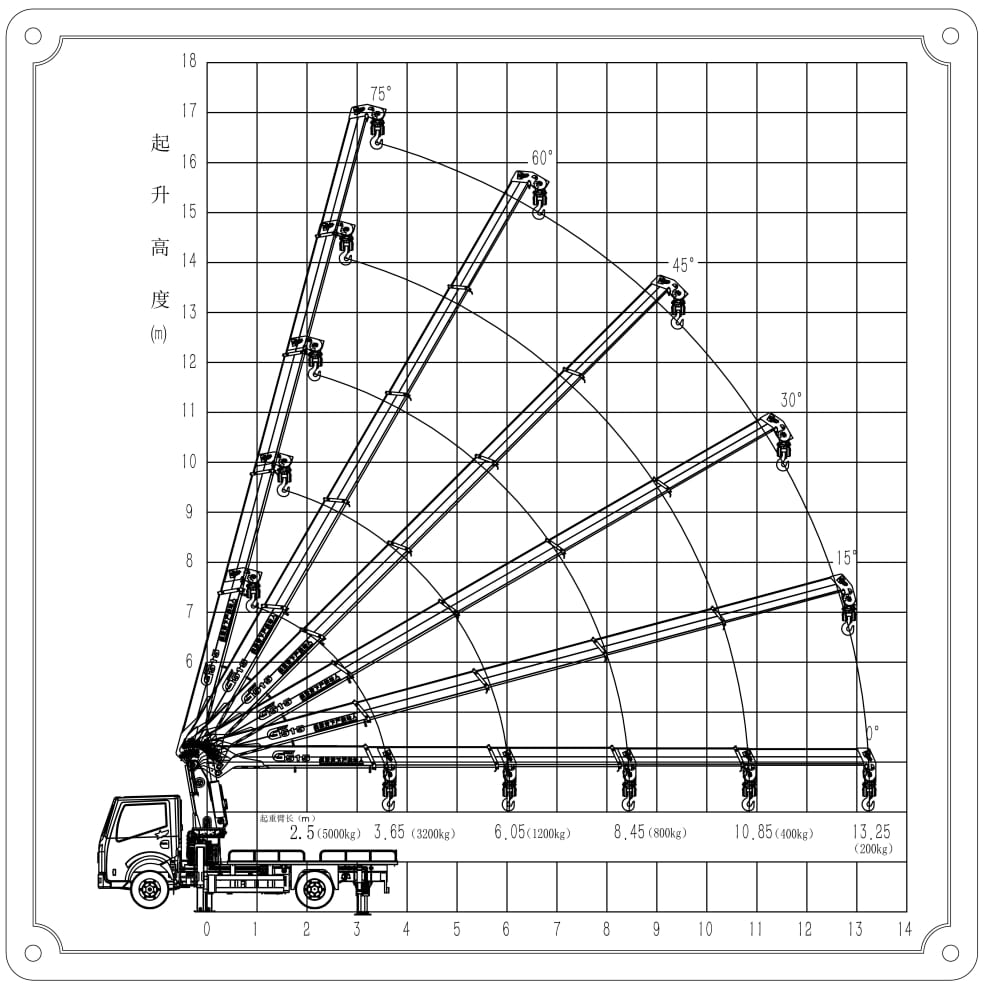

Maximum Lifting Capacity   5000 kg


Boom Type   2.3-section individually telescopic; 4.5-section synchronously telescopic
Slewing Angle   360 degrees
Full Extension Boom Length   13.5 m
Maximum Lifting Height   16.5 m
Luffing Angle   -17° to +75°

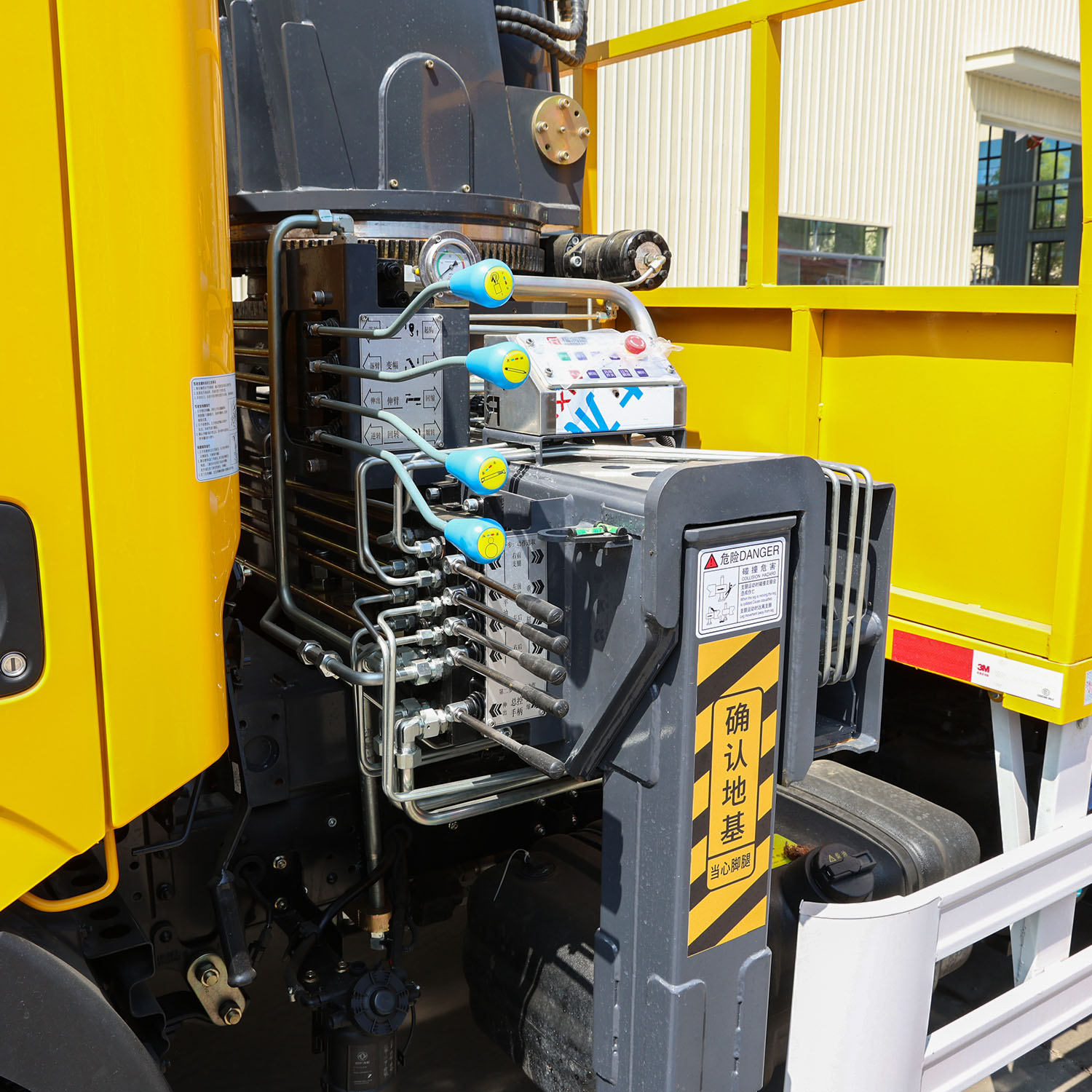

Operation Method   Bottom operation
Sub-beam   Through sub-beam
Front Outriggers   Double-cavity
Rear Outriggers   Double-cavity
Front Outrigger Span   5.2 m
