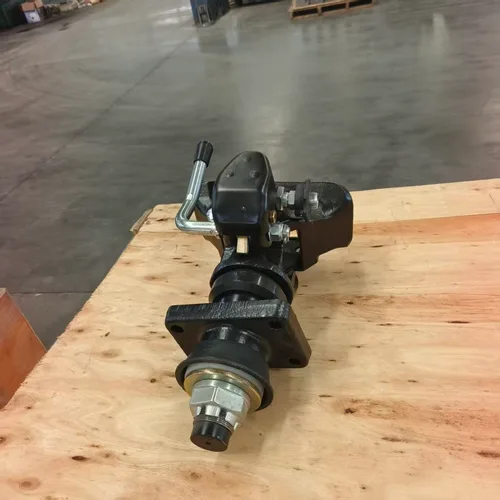

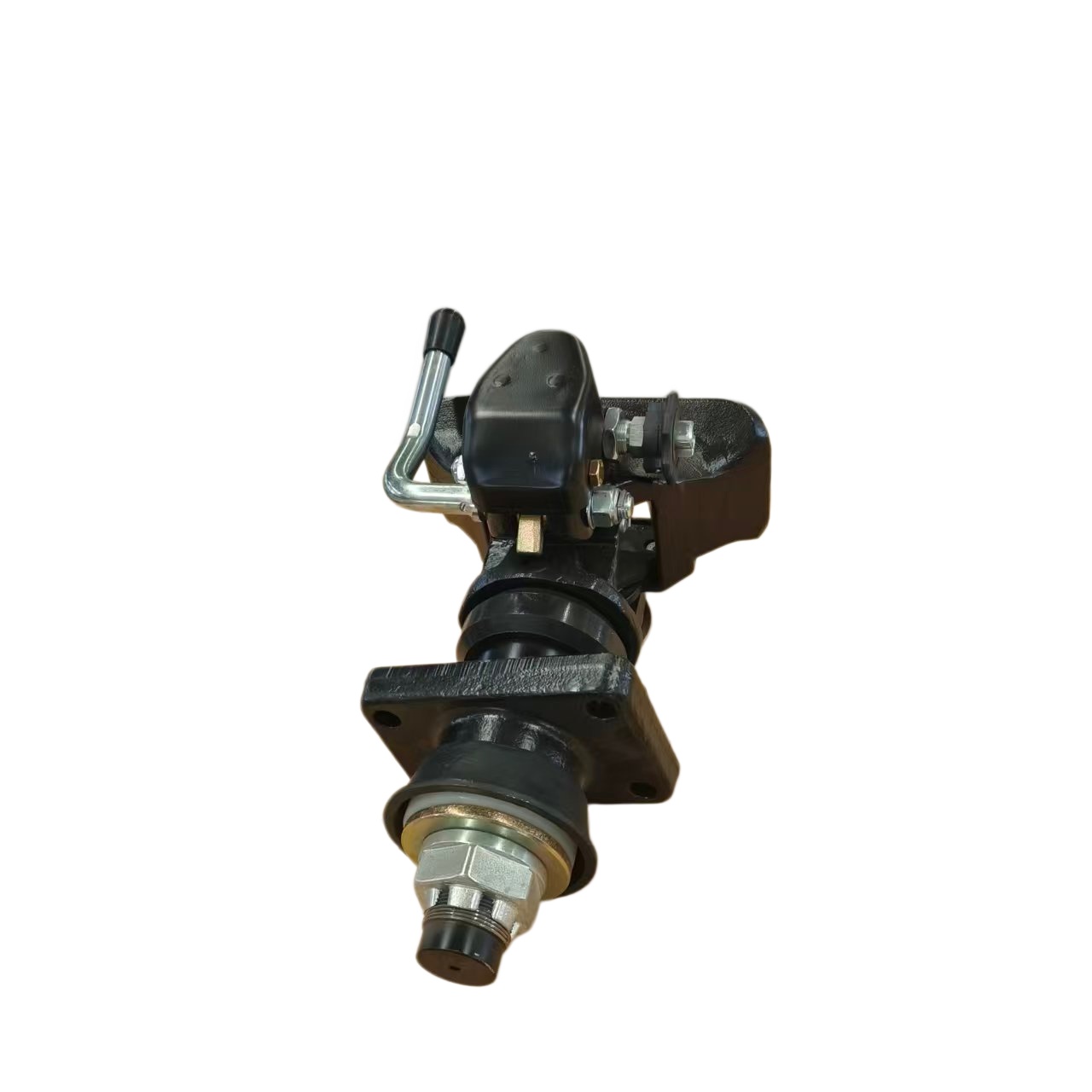

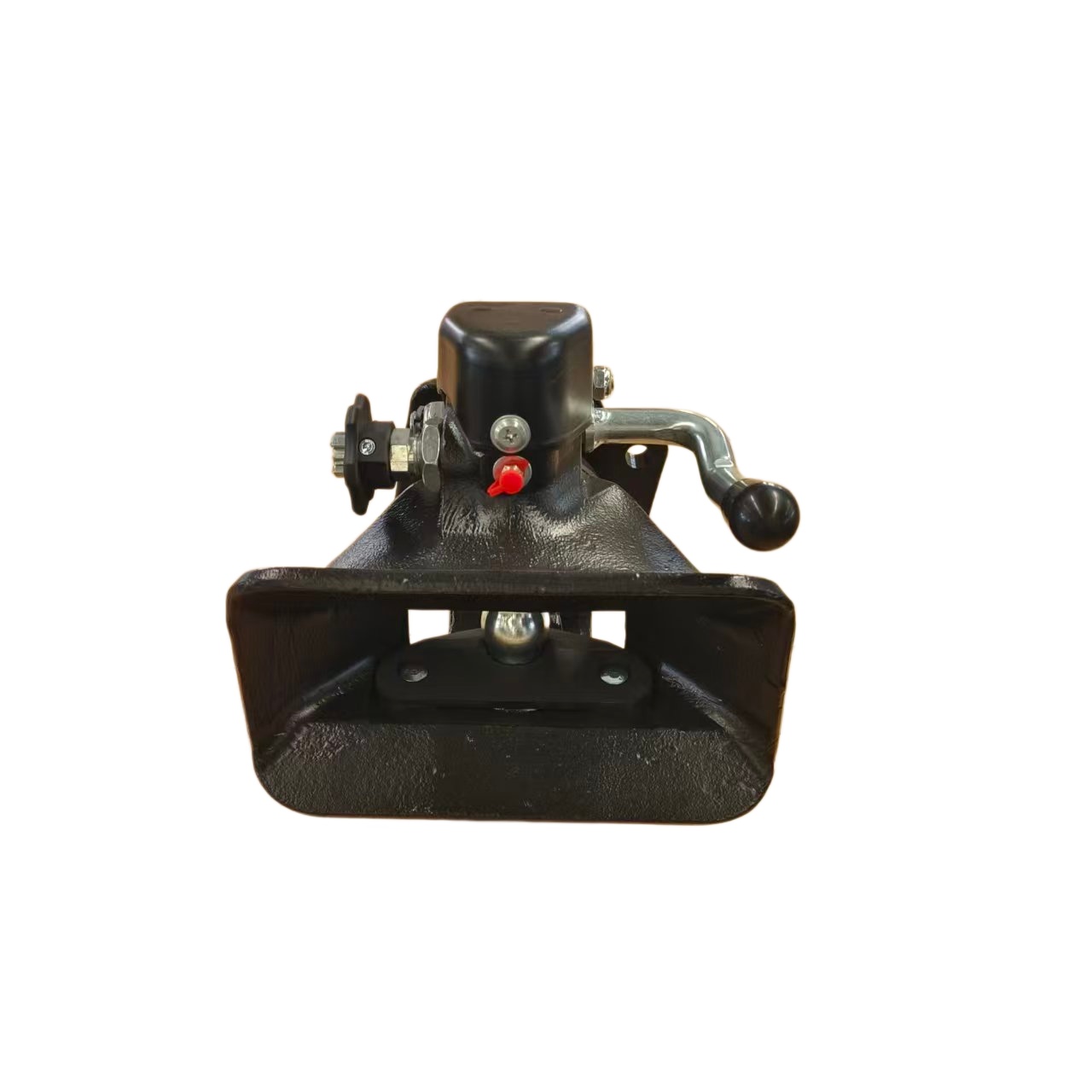

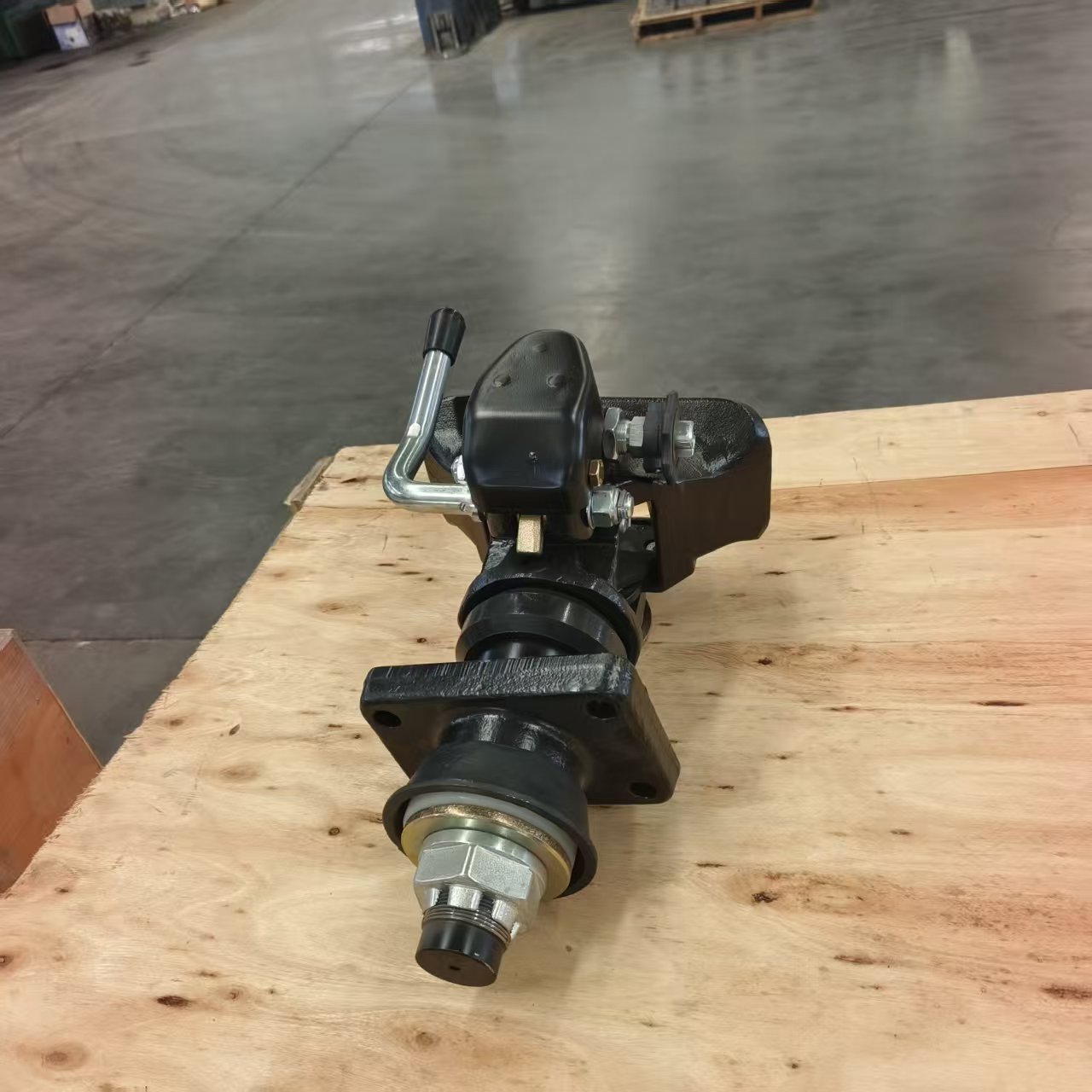

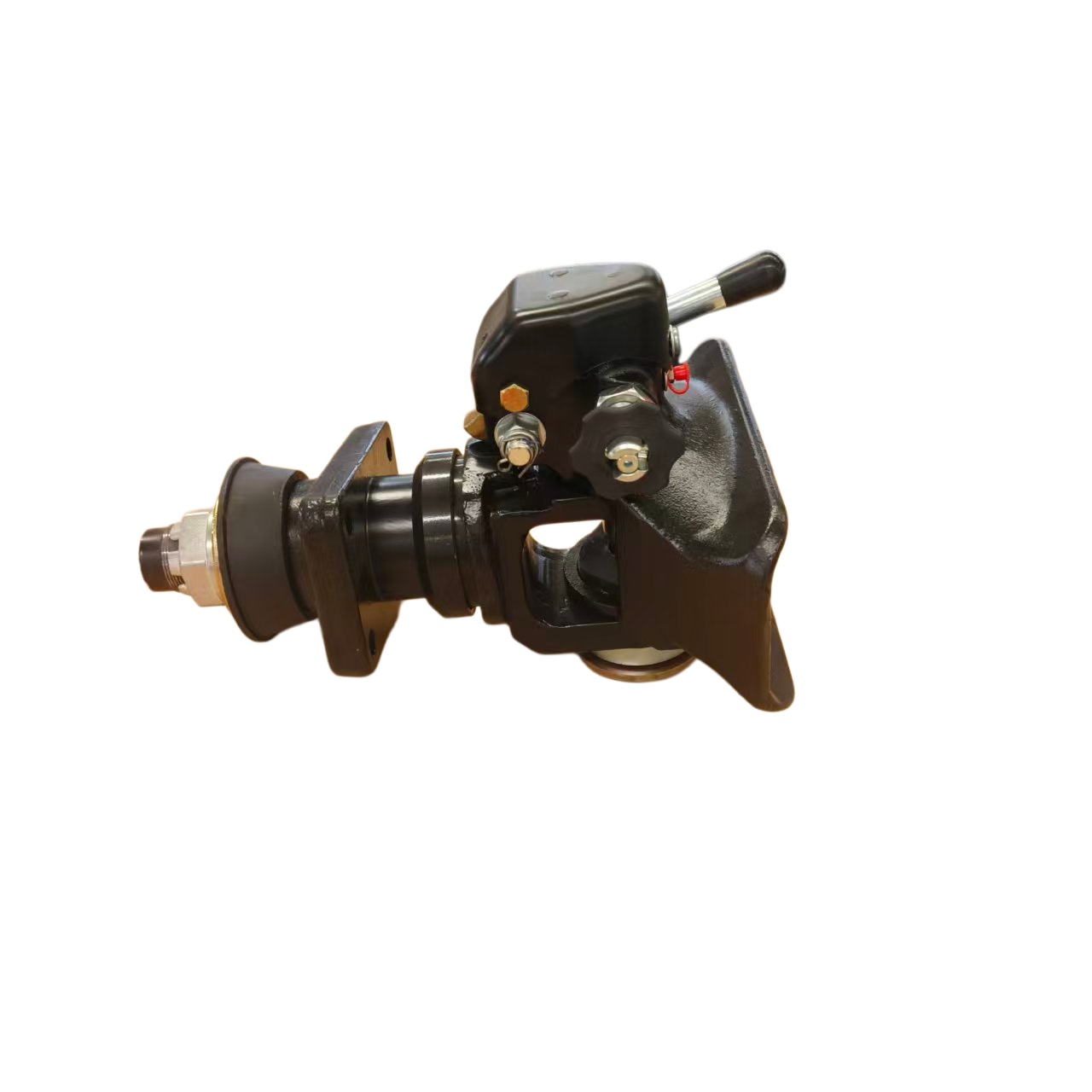

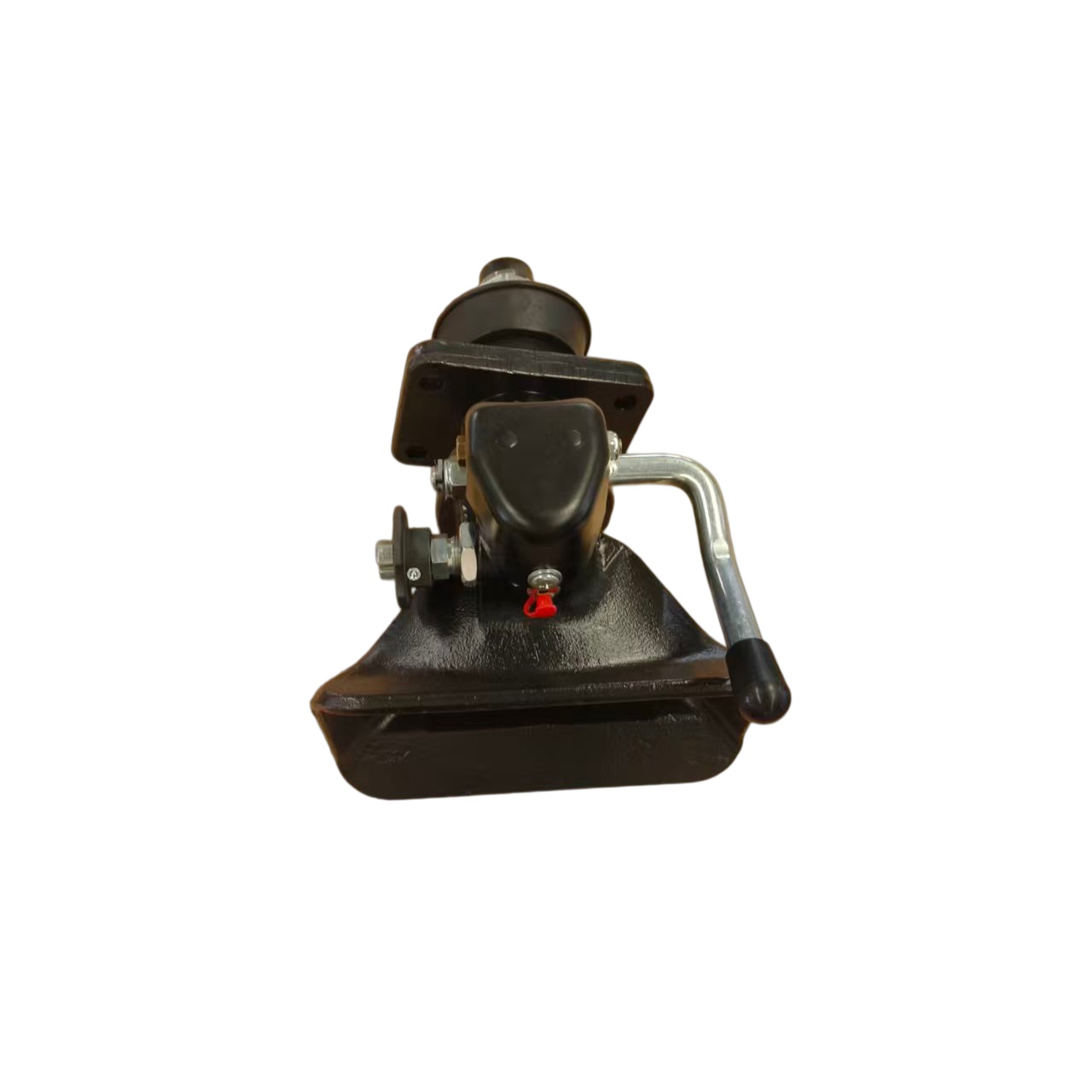

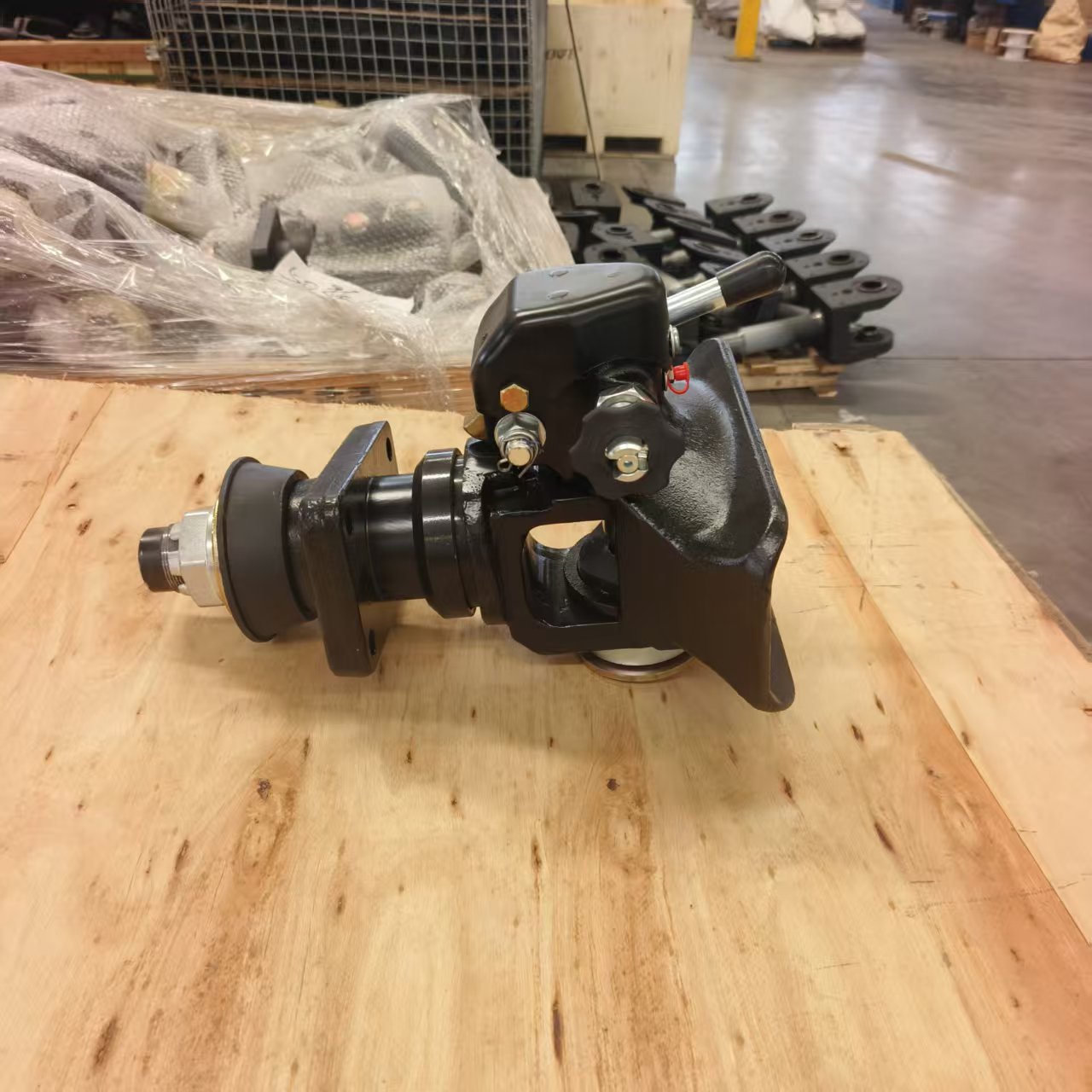

Universal Swivel Heavy Load Trailer Hitch WEQ40F 1000kg Vertical Static Load Construction Trailer Connector

Universal Swivel Heavy Load Trailer Hitch WEQ40F 1000kg Vertical Static Load Construction Trailer Connector

USD $264.06 - $264.60 / Piezas

Pedido mínimo: 1 Piezas

Max Towing Load D:
137 kN
Compression Load Dc:
92 kN
Vertical Static Load S:
1000 kg
Lateral Shear Load V:
40 kN
Precio de referencia:
USD $264.06 - $264.60
Cantidad mínima de pedido:
1 Piezas
Enviar consulta

Características y aplicaciones del producto

WEQ40F shock absorbing heavy-duty trailer coupling integrates hydraulic buffer and universal rotary joint, max towing load 137kN, vertical static load 1000kg. Adopts double safety anti-disengagement lock, thickened cast steel housing for high load capacity. Perfect for large central axle and construction heavy trailers, shock absorption extends service life of whole vehicle.

  • Built-in Integrated Hydraulic Shock Absorber
    Combined rubber buffer and hydraulic damping to absorb impact during braking, starting and bumpy road driving, reduce wear on trailer frame and cargo, smoother long-distance heavy hauling.
  • Super Heavy Load Bearing Capacity
    Max towing load up to 137kN, vertical static load 1000kg, double the capacity of standard WEQ40E model, suitable for over 10-ton heavy trailers, stable under mine, construction and long-distance transport heavy-duty working conditions.
  • 360° Universal Rotary Joint
    Middle universal swivel joint allows free deflection during turning and climbing, eliminates torsion stress to prevent drawbar cracking, better trafficability on rough terrain.
  • Double Anti-disengagement Safety Lock System
    Extended non-slip operating lever with red safety latch for double locking; side adjustable knob fine-tunes ball clearance to eliminate loose play and avoid accidental unhooking during rough driving.
  • One-piece Thickened Cast Steel & Anti-rust Finish
    Integral heavy cast steel housing with enhanced tensile & compression resistance; full electrophoretic black coating for excellent mud and water corrosion resistance for long outdoor service life.
  • Standard 4-hole Flange Mount Base
    Universal square 4-hole flange plate fits most heavy-duty drawbars, direct replacement without modification, easy and stable installation.
