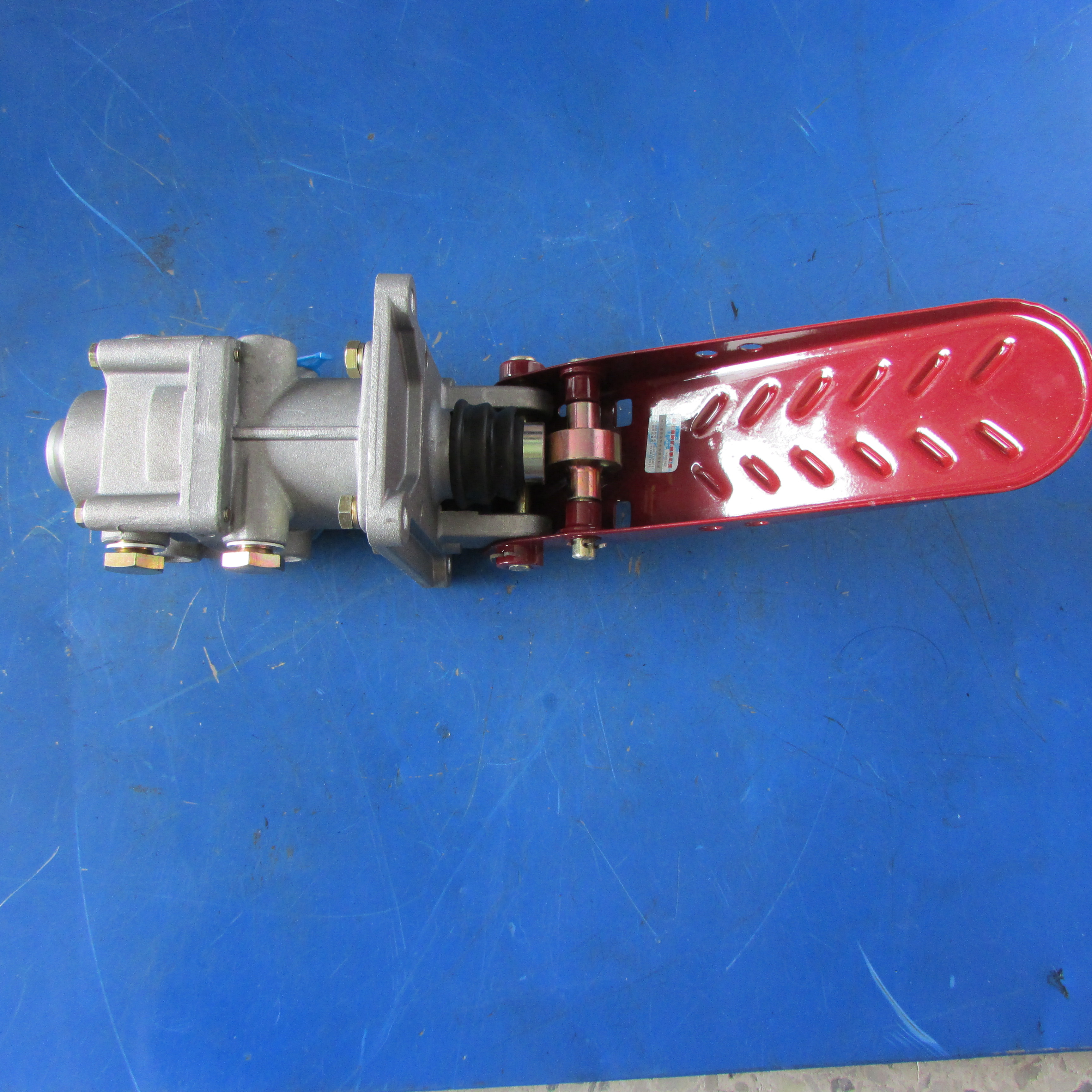

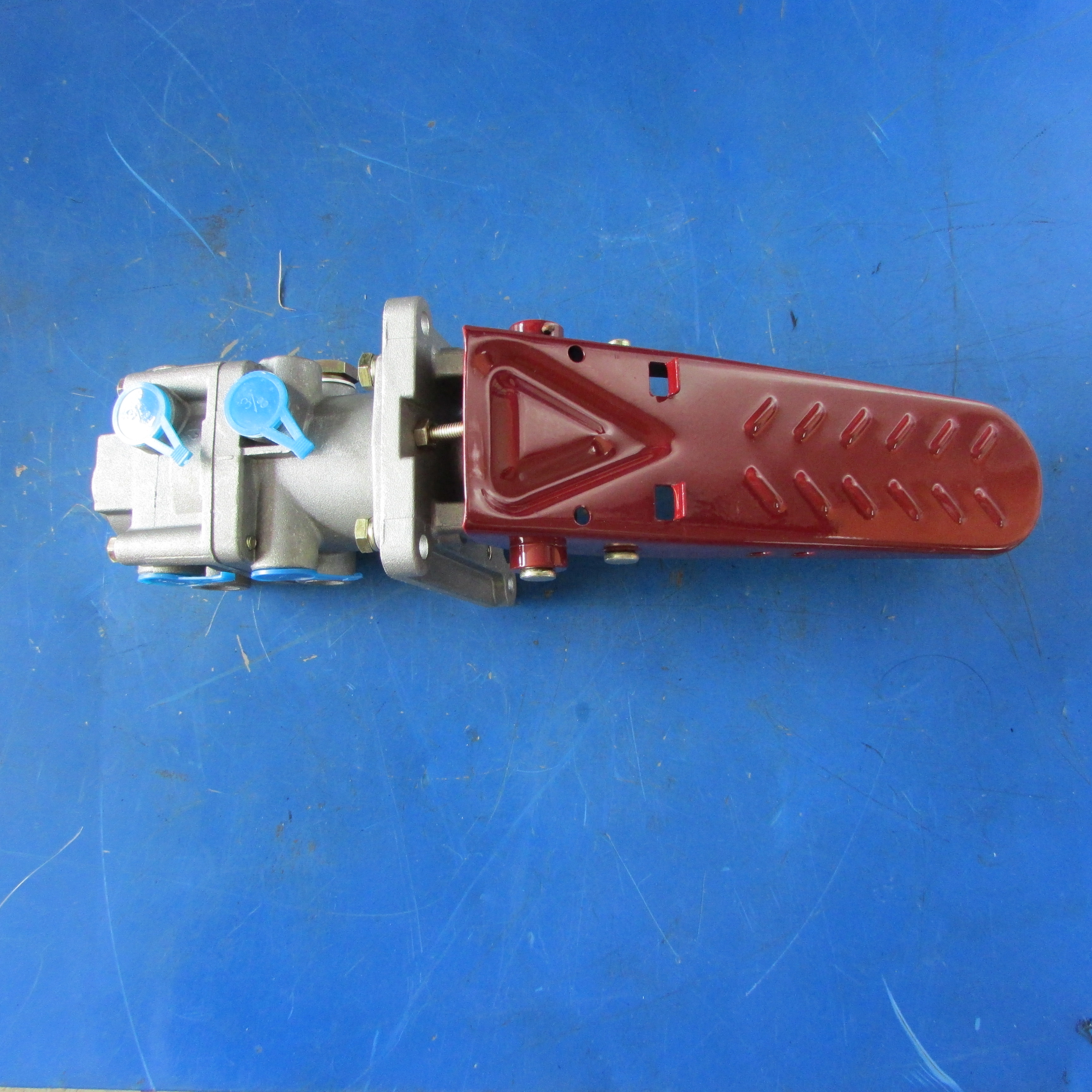

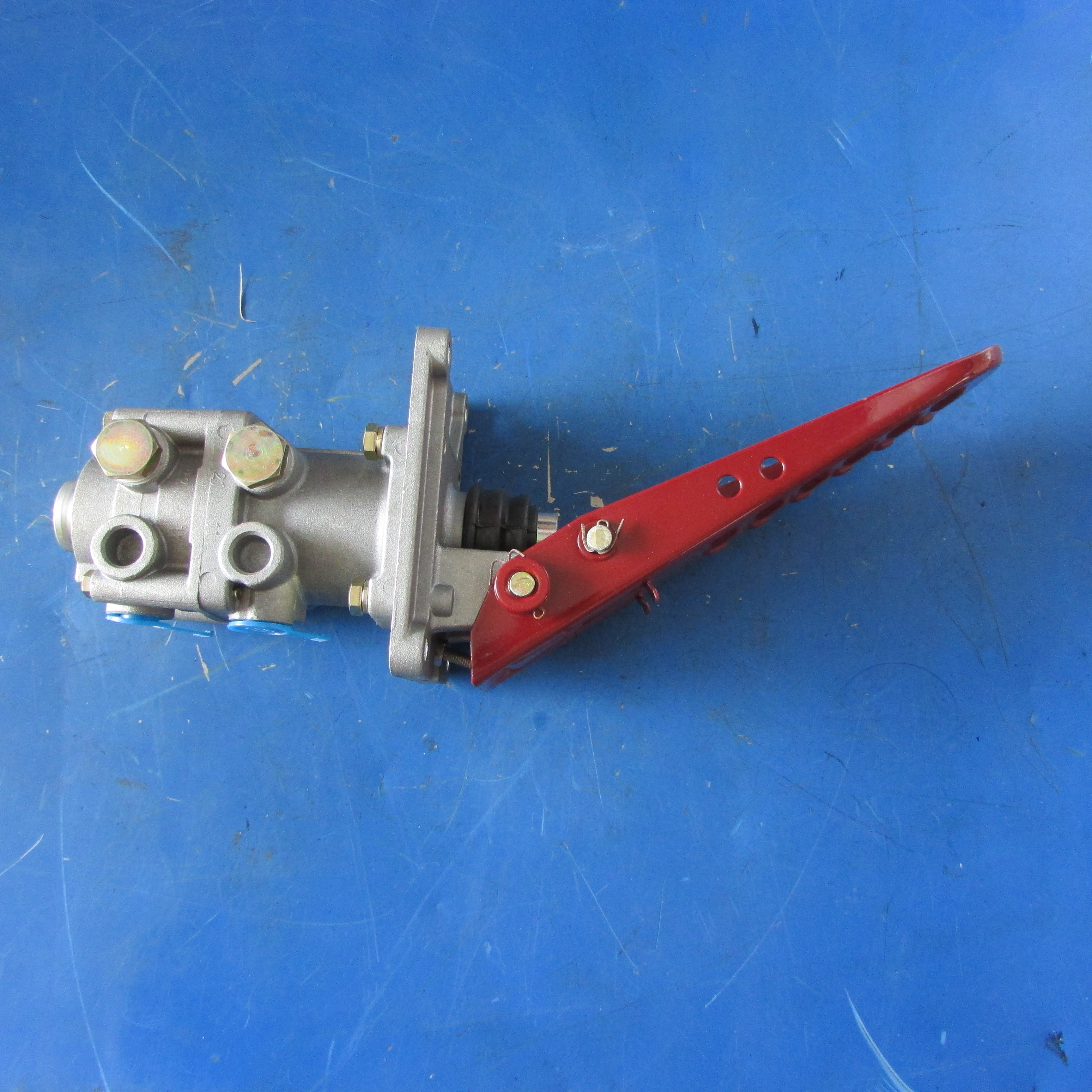

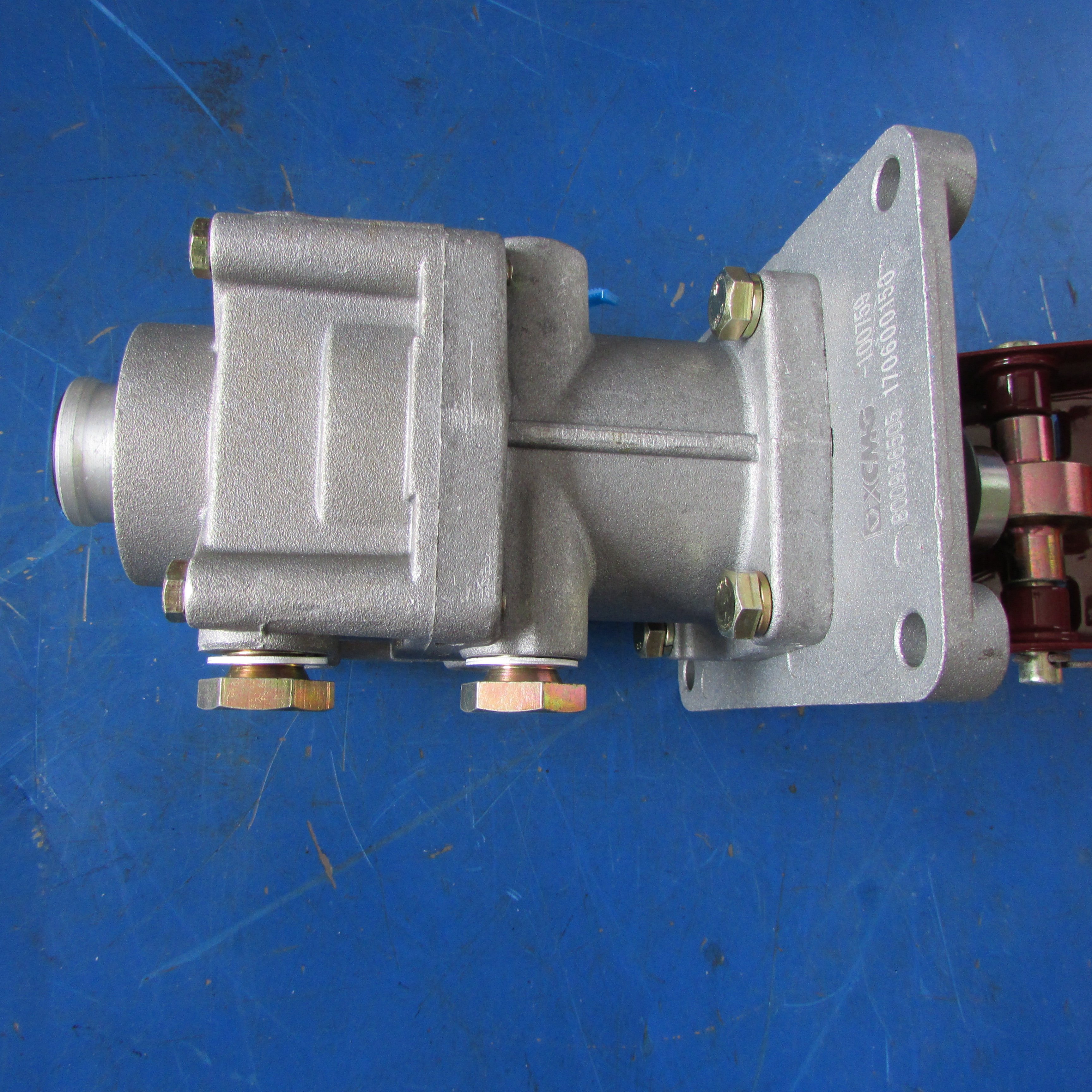

XCMG Air Brake Valve 800936505 XZ50-3514002 | Foot Brake Treadle Valve

Name: XCMG Air Brake Valve 800936505 XZ50-3514002 | Foot Brake Treadle Valve
Brand: GLOBALMACHEX
Availability: InStock
Rating: 5 (1 reviews)

This Foot Brake Valve / Air Brake Valve (PN 800936505 / Drawing XZ50-3514002) is a treadle-type pneumatic control valve serving XCMG XZ50 rotary drills and multiple XP/XS-series road rollers (XP263, XP303, XS203, XS163, etc.). Mounted in the operator cab footwell, it converts pedal travel into proportionally modulated air pressure that releases spring-applied brake chambers on the wheels/axles—the harder the pedal, the higher the output pressure, up to the system's regulated maximum. The valve body is die-cast aluminum alloy with a hardened cam/spool assembly and reinforced rubber diaphragm, providing linear pedal feel, minimal hysteresis, and stable pressure hold when the pedal is held stationary. Inlet/exhaust port threads and bracket mounting pattern match OEM specifications, allowing direct swap of a sticking or leaking unit without modifying pedal linkage or air-line routing. Each valve is function-tested for pressure rise time, hold stability, and exhaust purge before shipment.

$37.50

Enviar mensaje Contactar proveedor

Xuzhou Hengming Machinery Equipment Co., Ltd.

Ver proveedor

Year Established Established in 2008

Employees Less than 50 People

Factory Area 1,000-5,000 m²

Annual Revenue US$1 Million - US$5 Million

Main Markets Europe / Middle East & North Africa / Africa

Detalles

Especificaciones

Informacion comercial

✅ Type: Foot-operated treadle valve (proportional air brake valve)
✅ Application: XCMG XZ50 rotary drill + XP/XS-series road rollers (cross-ref multiple platforms)
✅ Cross Ref: 800936505 / XZ50-3514002
✅ Body: Die-cast aluminum alloy, corrosion-resistant
✅ Function: Pedal → proportional air output → spring-brake release
✅ Install: OEM pedal bracket pattern, standard push-in/threaded air ports
✅ Performance: Linear response, stable pressure hold, quick exhaust purge

Material code:

800936505

Material Description:

XZ50-3514002 air brake valve

Cantidad minima de pedido

1 Piezas

Descripción

✅ Type: Foot-operated treadle valve (proportional air brake valve)
✅ Application: XCMG XZ50 rotary drill + XP/XS-series road rollers (cross-ref multiple platforms)
✅ Cross Ref: 800936505 / XZ50-3514002
✅ Body: Die-cast aluminum alloy, corrosion-resistant
✅ Function: Pedal → proportional air output → spring-brake release
✅ Install: OEM pedal bracket pattern, standard push-in/threaded air ports
✅ Performance: Linear response, stable pressure hold, quick exhaust purge
