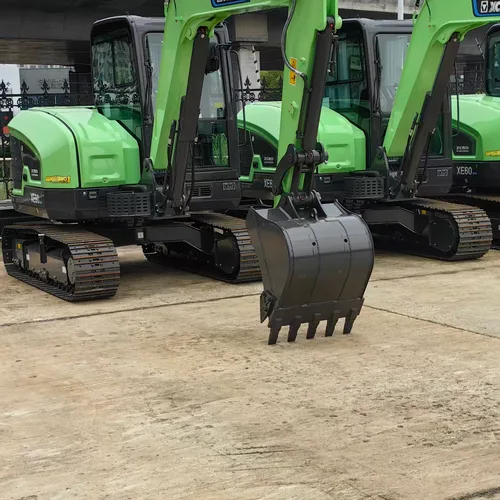

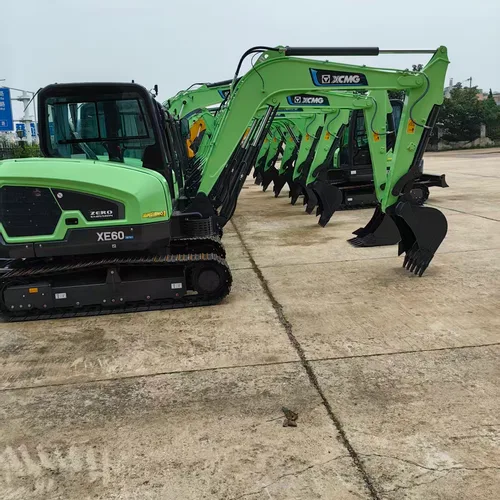

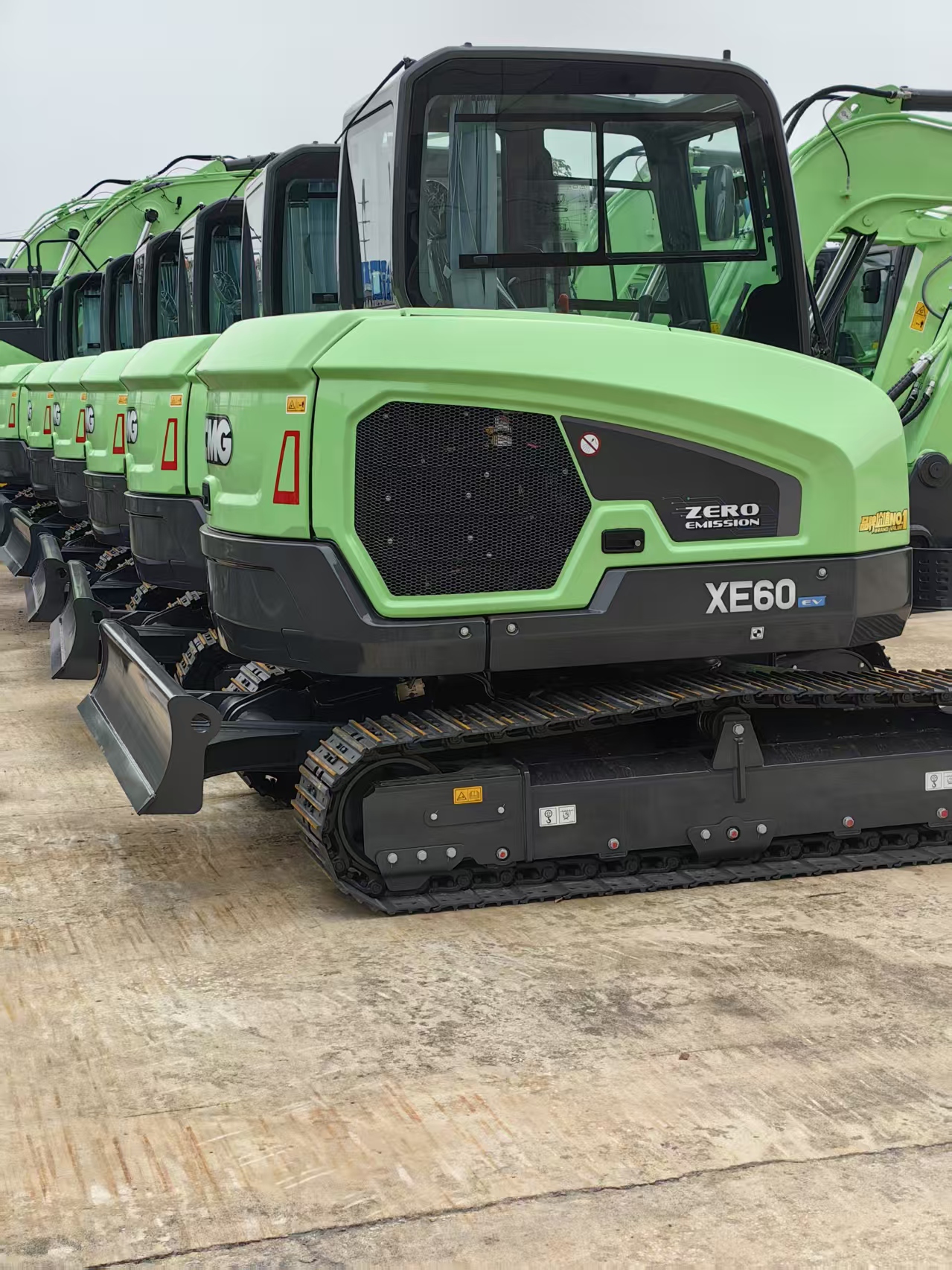

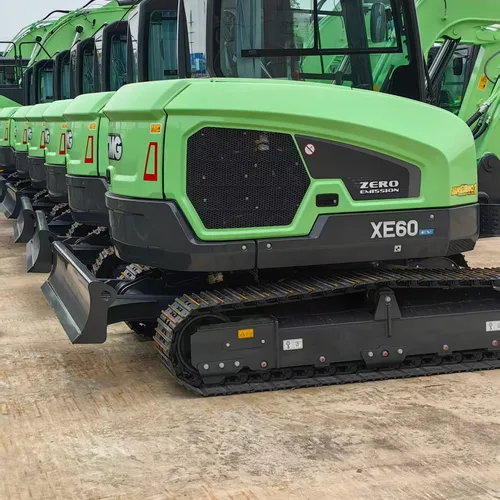

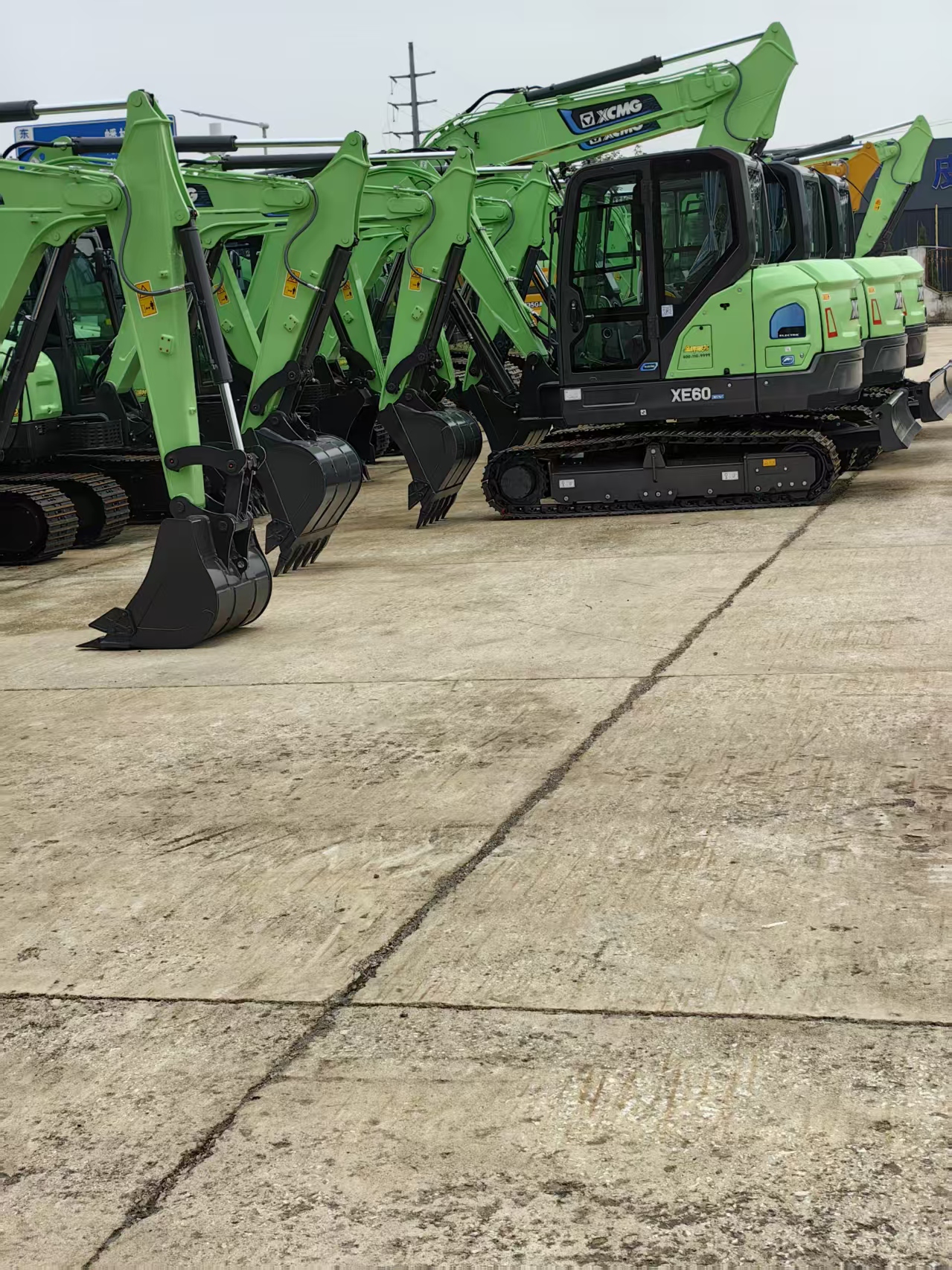

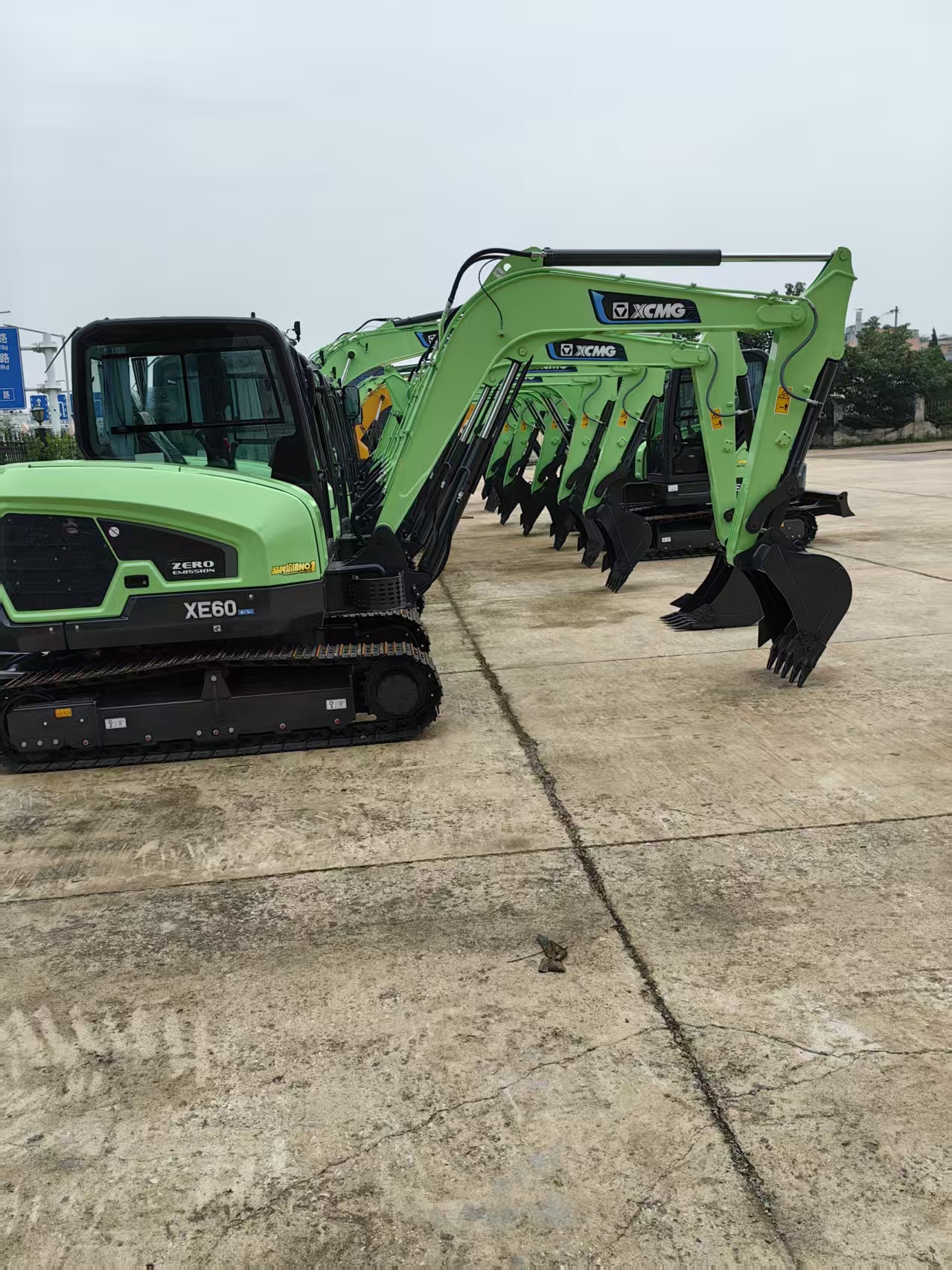

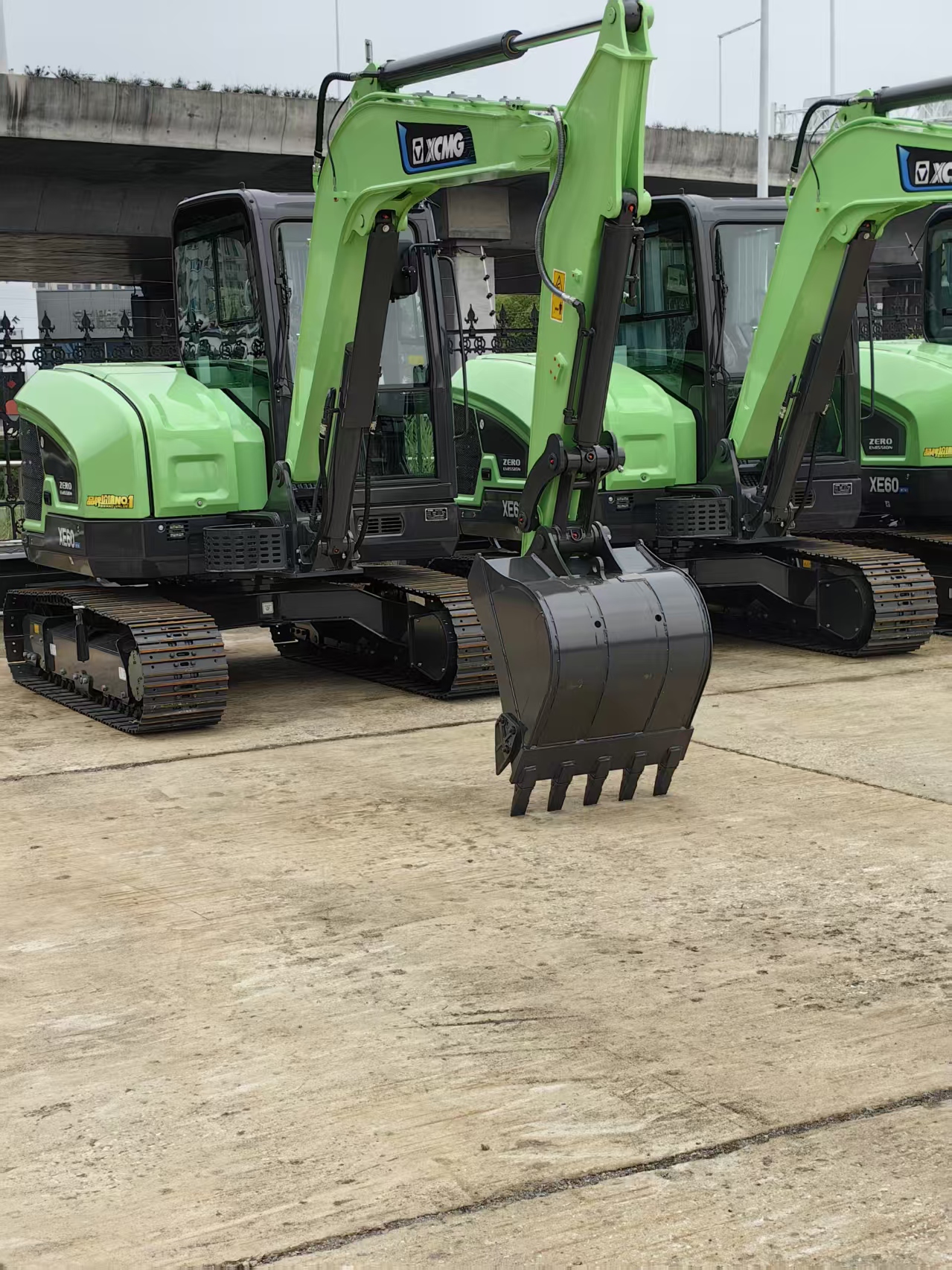

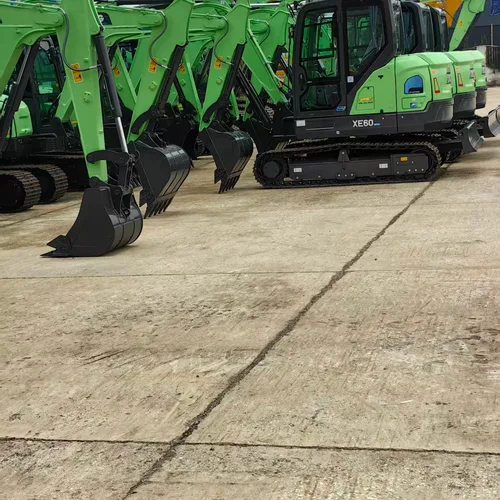

XCMG XE60EV

XCMG XE60EV (Zero Emission 6-ton Electric Mini Excavator) Full Specifications

1. Basic Machine Parameters

1. Operating Weight: 6,650kg (6.6-ton all-electric mini excavator)

2. Standard Bucket Capacity: 0.25m³; compatible with attachments including hydraulic breakers, grapples, dozer blades, etc.

3. Working Range

- Max Digging Depth: 3,830mm

- Max Digging Radius: 6,130mm

- Max Dumping Height: 3,945mm

4. Chassis Structure
Extended track chassis with standard front dozer blade; 400mm track width; heavy-duty anti-collision undercarriage guard, ideal for mining and municipal construction.

2. Core Three-Electric System (Zero-Emission Core)

2.1 Power Battery

- Cell Type: CATL Lithium Iron Phosphate Battery

- Total Capacity: 116.49kWh

- Thermal Management: Independent liquid cooling & heating system, stable operation under extreme high/low temperatures

- Endurance: 6.5~8 hours of continuous full-load earthmoving work on a full charge

2.2 Drive Motor

- Type: High-voltage Permanent Magnet Synchronous Motor

- Rated Power: 47kW, delivers far higher peak torque than equivalent diesel models

- Advantages: Instant response at startup, strong low-speed torque with no loss of digging force

2.3 Dual Charging System

1. DC Fast Charging (1C High-Voltage Fast Charge): Full 100% charge within 1 hour, perfect for quick top-ups during site breaks

2. AC Slow Charging: Compatible with 380V industrial sockets, low-cost off-peak night charging

2.4 Electronic Control System

Dual-layer protection with vehicle VCU controller and battery BMS; real-time monitoring of voltage, temperature and current. Built-in machine self-diagnosis and remote data monitoring functions.
